XWF3617NV | 9.51 GPM 2500 PSI Pump 1000 RPM Viton Seals SS

XWF3617NV — Nickel-Plated Industrial Pump, 9.5 GPM, 2,500 PSI, 1,450 RPM

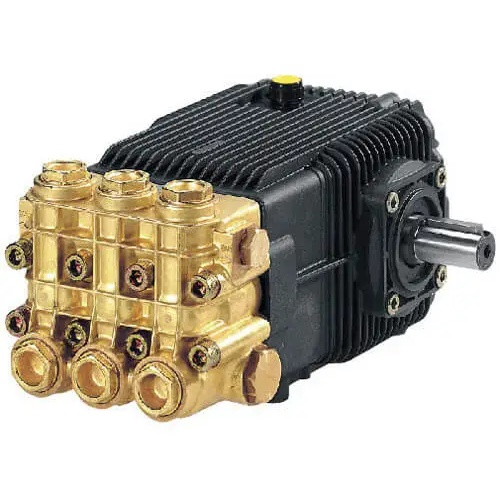

The Annovi Reverberi XWF3617NV is a specialty industrial pressure washer pump engineered for
environments where corrosion resistance and chemical compatibility are non-negotiable.
Delivering 9.5 GPM at 2,500 PSI while operating at a cool-running 1,450 RPM, it is
built for continuous-duty service in food processing, chemical sanitation, saltwater washdowns, and
USDA-regulated facilities. A nickel-plated stainless-steel head, Viton seals, and
ceramic plungers provide superior protection against chemicals, hot water, and corrosive environments,
making the XWF3617NV a trusted choice for critical wash and sanitation systems.

Key Specifications of XWF3617NV

• Flow Rate: 9.5 GPM for high-volume industrial and food-plant washdowns
• Maximum Pressure: 2,500 PSI for powerful yet controlled cleaning
• Operating Speed: 1,450 RPM for cooler, quieter, low-stress operation
• Shaft: 24 mm solid shaft (standard rotation) for belt-drive or direct-coupled systems
• Head Construction: Nickel-plated stainless-steel head for extreme corrosion resistance
• Plungers: Ceramic plungers for superior wear and thermal stability under heavy duty cycles
• Seals: Viton seals for hot water and aggressive chemical compatibility
• Maintenance Features: Oil sight glass and vented dipstick for easy service checks
• Warranty: 5-year commercial-use warranty with U.S.-based technical support

What’s Included with XWF3617NV

• Pre-installed break-in oil for safe, immediate startup
• Oil sight glass for quick verification of crankcase oil level and condition
• Vented dipstick to manage crankcase pressure and thermal expansion
• Owner’s manual and schematic documentation for installation and maintenance
• Factory-tested performance report confirming flow and pressure specifications
• 5-year commercial warranty backed by U.S.-based parts and service support

Corrosion-Resistant Construction

• Nickel-plated stainless-steel head resists rust, pitting, and chemical attack in harsh, wet
  environments, including saltwater and caustic washdown zones.
• Viton seals withstand elevated temperatures and aggressive detergents, sanitizers, and disinfectants
  commonly used in food and chemical plants.
• Ceramic plungers provide excellent abrasion resistance and thermal stability under continuous-duty
  hot-water operation.
• Materials and design are suitable for USDA and HACCP-oriented facilities where sanitation and
  corrosion resistance are critical.

Benefits & Advantages

• Corrosion-Resistant Build: Nickel-plated head and stainless components tolerate saltwater and chemical washdowns.
• High Water Output: 9.5 GPM supports large-area and multi-station cleaning systems.
• Balanced Pressure: 2,500 PSI delivers strong cleaning performance without excessive system stress.
• Durability Under Stress: Ceramic plungers and Viton seals extend service life in hot, chemical-heavy environments.
• Low-RPM Efficiency: 1,450 RPM operation runs cooler and quieter, reducing mechanical wear and vibration.
• Easy Maintenance: Oil sight glass and vented dipstick simplify daily checks and routine service.
• Proven Reliability: Factory-tested and backed by a 5-year commercial warranty with U.S. support.

Ideal Applications

• Food & Poultry Plants: USDA-compliant washdown for meat, poultry, and seafood processing lines.
• Chemical Sanitation Systems: Handles aggressive cleaning agents and disinfectants with Viton seal protection.
• Saltwater Washdown: Marine facilities, docks, and coastal operations requiring corrosion-resistant performance.
• Environmental Remediation: Chemical-resistant pump for industrial cleanup and decontamination systems.
• Industrial Wash Rigs: High-flow wash skids and trailers needing 9.5 GPM at moderate pressure.
• USDA & HACCP Facilities: Continuous sanitation in food-grade operations where material compatibility is critical.

Summary

• The Annovi Reverberi XWF3617NV delivers 9.5 GPM at 2,500 PSI with a
  24 mm solid shaft and low 1,450-RPM operation, purpose-built for corrosive,
  chemically intensive environments.
• With its nickel-plated stainless-steel head, Viton seals, ceramic plungers, and
  service-friendly oil monitoring, it provides the corrosion resistance, hot-water capability, and long-term durability
  required in food processing, chemical sanitation, and saltwater washdown systems—backed by a
  5-year commercial warranty.
