XWAM55G40N | 5.5 GPM 4000 PSI Pump 1750 RPM Solid Shaft Drive

Annovi Reverberi XWAM55G40N Commercial-Duty Pressure Washer Pump

The XWAM55G40N is a commercial-duty triplex plunger pump engineered to deliver both high volume and high pressure for demanding industrial and commercial wash systems. Producing 5.5 GPM at 4,000 PSI, this pump is built for operators who need nonstop performance, consistent pressure, and long-term durability. With a 24mm solid shaft and smooth 1,750 RPM operation, it integrates seamlessly into commercial direct-drive systems while reducing wear and vibration for extended service life.

The pump is designed for harsh-duty cycles with ceramic plungers, stainless steel valves, and premium high-pressure seals that withstand continuous operation under heat and pressure. A built-in sight glass and vented dipstick simplify maintenance and help ensure reliable long-term performance.

Built for Commercial Power and Durability

The XWAM55G40N is optimized for contractors, fleet services, and industrial facilities that require both strong water flow and maximum PSI. Its triplex plunger system delivers smooth, pulsation-free water flow that protects hoses, wands, and nozzles from unnecessary stress. With 5.5 GPM, it rinses large surfaces quickly while still delivering 4,000 PSI of cutting power to remove stubborn dirt, grease, and industrial buildup.

Key Specifications of XWAM55G40N

• Flow Rate: 5.5 GPM
• Pressure Rating: 4,000 PSI
• Operating Speed: 1,750 RPM

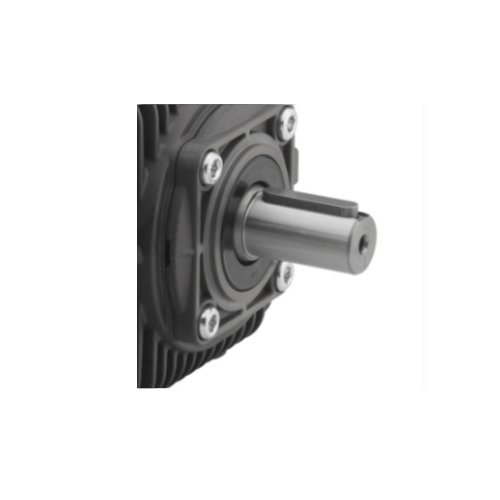

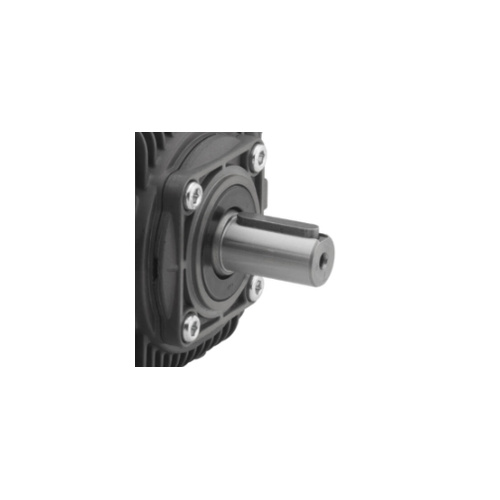

• Shaft Size: 24mm solid shaft
• Pump Type: Triplex plunger pump
• Plungers: Ceramic plungers for heat & wear resistance

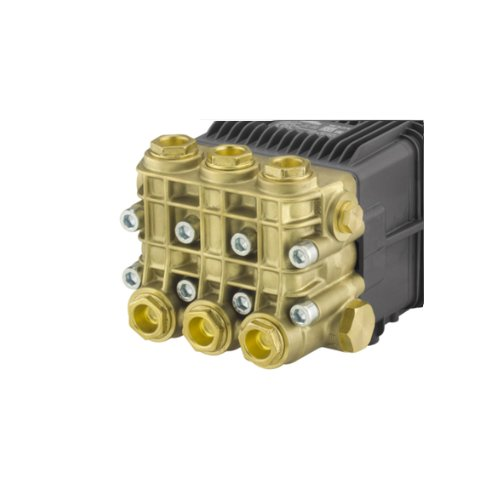

• Valves: Stainless steel valves
• Seals: Premium high-pressure seals
• Lubrication: Oil-bath crankcase with sight glass & vented dipstick

What’s Included With the Pump Model XWAM55G40N

• Pre-filled break-in oil for immediate startup
• Integrated oil sight glass for quick oil-level checks
• Vented dipstick for pressure balance and simplified maintenance
• Operator manual and full schematic for installation and servicing
• Factory-tested performance verification
• 5-year limited commercial warranty with U.S.-based support

How the XWAM55G40N Works

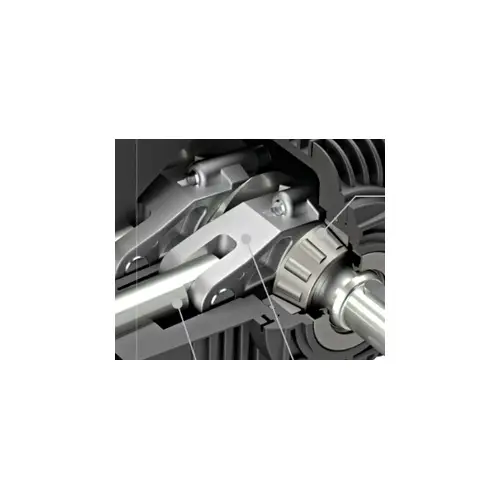

This pump uses a triplex plunger design where three ceramic plungers compress incoming water through stainless steel valves to generate a steady, high-pressure flow. At 5.5 GPM, it provides the additional volume needed for large-area cleaning, while its 4,000 PSI pressure cuts through grease, grime, and industrial buildup.

Operating at 1,750 RPM, the pump achieves balanced performance with reduced mechanical stress. The oil-bath crankcase, combined with the sight glass and vented dipstick, ensures consistent lubrication and reduces downtime caused by maintenance issues.

Benefits of the XWAM55G40N

• High-Output Flow: 5.5 GPM quickly covers large cleaning surfaces
• Extreme Pressure: 4,000 PSI for removing coatings and heavy debris
• Durability Focused: Ceramic plungers & stainless valves withstand harsh conditions
• Simplified Maintenance: Sight glass & dipstick streamline oil checks
• Direct-Drive Compatible: 24mm solid shaft fits commercial systems
• Quality Assured: Factory tested and backed by a 5-year warranty

Typical Applications

• Fleet Maintenance Shops – Ideal for buses, trucks, and commercial vehicle washing
• Exterior Building Cleaning – Efficient for large wall and structure washing
• Food Processing & USDA Facilities – Supports hygienic washdowns
• Flatwork & Parking Lot Contractors – High flow for large concrete areas
• Fire Department Wash Bays – Cleans engines, trucks, and bays reliably
• Industrial Pressure Washing Contractors – Designed for continuous-duty cycles

Why Choose the XWAM55G40N?

For businesses that require both high pressure and higher water volume, the XWAM55G40N stands out as a powerful, commercial-grade solution. Its 5.5 GPM at 4,000 PSI performance, robust construction, and direct-drive compatibility make it a dependable choice for contractors and industrial operators.

From fleet washing to food-grade sanitation, this pump provides the durability, efficiency, and uptime required in professional environments. Fully factory tested and backed by a 5-year warranty, the XWAM55G40N is built to deliver long-term reliability in challenging cleaning applications.
