XW3025N-SX | 7.92 GPM 3600 PSI Pump 1450 RPM Left Hand Shaft

XW3025N-SX Left-Hand Shaft Industrial Pressure Washer Pump

Key Specifications

• Model: XW3025N-SX
• Flow Rate: 7.9 GPM
• Pressure Rating: 3,600 PSI
• Operating Speed: 1,450 RPM

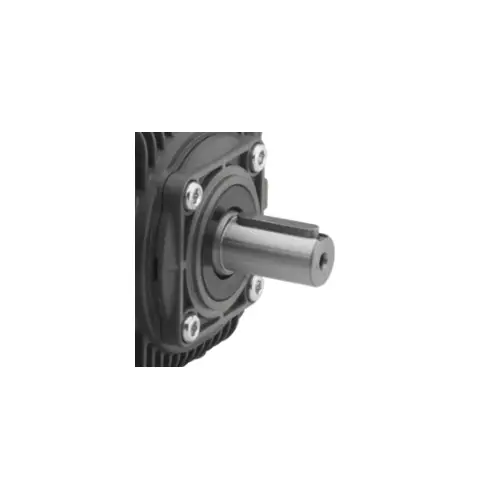

• Shaft Size: 24mm solid shaft (left-hand orientation)
• Pump Type: Triplex plunger pump
• Plungers: Ceramic
• Valves: Stainless steel
• Bearings: Oversized heavy-duty bearings
• Crankcase: Oil-bath lubrication with sight glass & vented dipstick

Engineered for Reverse-Drive Systems

• Left-Hand Shaft Orientation: Built for reverse-drive configurations and non-standard mounting requirements
• System Fitment: Supports installations where traditional shaft direction is not compatible with the equipment layout
• Performance Carryover: Retains the performance characteristics of the standard XW3025N platform
• Continuous-Duty Build: Oversized bearings, precision crankcase, and oil-bath lubrication for extended runtime
• Service Access: Oil sight glass and vented dipstick support quick checks and simplified maintenance

What’s Included with XW3025N-SX

• Pre-filled break-in oil
• Vented dipstick
• Oil sight glass
• Owner’s manual with installation and maintenance instructions
• Factory-provided schematic and performance chart
• Factory testing for flow, pressure, and reliability
• 5-year warranty with U.S.-based service support

How the Pump Works

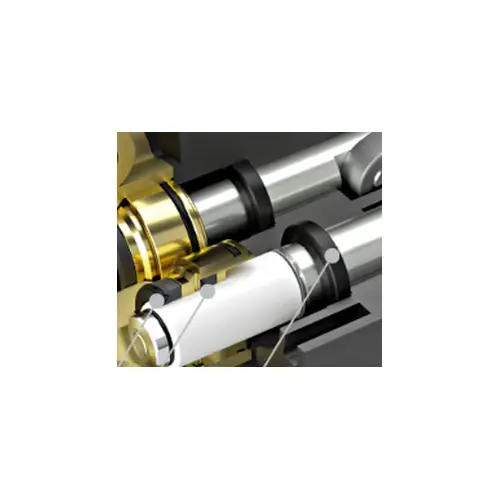

• Triplex Plunger Output: Three ceramic plungers compress water through stainless steel valves for smooth high-pressure flow
• Reduced Pulsation: Triplex design supports steadier spray performance and lower downstream stress
• Reverse-Rotation Compatibility: Left-hand shaft configuration supports reverse-drive systems and custom installations
• Lubrication System: Oil-bath crankcase supports internal cooling and long-term lubrication
• Maintenance Visibility: Sight glass and vented dipstick support fast, routine service checks

Benefits of the XW3025N-SX

• Reverse-Drive Capable: Left-hand shaft supports specialized equipment layouts
• High Flow & Pressure: 7.9 GPM at 3,600 PSI for heavy-duty cleaning demand
• Heavy-Duty Components: Ceramic plungers, stainless valves, and oversized bearings for long service life
• Smooth Operation: Triplex plunger system supports reduced pulsation and noise
• Easy Maintenance: Sight glass and vented dipstick simplify lubrication monitoring
• Continuous-Duty Ready: Built for contractor, municipal, and industrial operating cycles
• Warranty Protection: 5-year warranty with U.S.-based support centers

Typical Applications

• Truck-mounted fleet cleaning systems
• Industrial service and maintenance vehicles
• Municipal cleaning and public works facilities
• Recycling plants and waste handling washdown
• Construction fleet wash stations
• Commercial pressure washing contractors

Why Choose the XW3025N-SX?

• Specialty Fit: Left-hand shaft orientation supports reverse-drive compatibility without changing the core pump platform
• Output Capability: 7.9 GPM at 3,600 PSI supports large-surface cleaning and high-throughput wash systems
• Durability Package: Ceramic plungers, stainless steel valves, oversized bearings, and oil-bath lubrication
• Service Readiness: Maintenance-friendly features with documentation and factory testing included
• Support: 5-year warranty backed by U.S.-based service support
