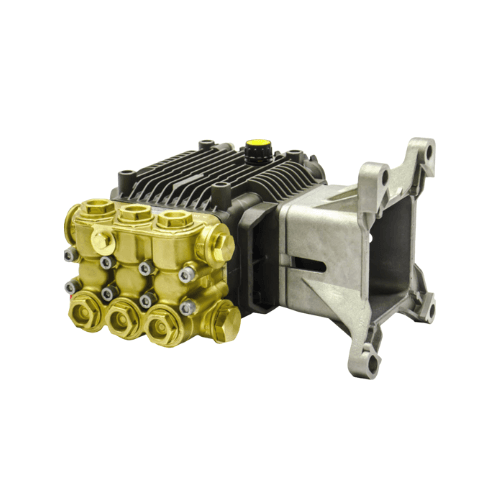

XMV3G30D-F24 Triplex Plunger Pump | 3.0 GPM 3000 PSI 3400 RPM

Overview

The Annovi Reverberi XMV3G30D-F24 is a professional-grade pressure washer pump engineered
for demanding commercial, industrial, and contractor applications. Delivering
3.0 GPM at 3,000 PSI, this pump provides the cutting power required for heavy soil,
oil, and grime removal while maintaining long-term durability under frequent use.
Operating at 3,400 RPM, it is optimized for direct-drive engine systems that prioritize
compactness and efficiency.

This model features a 1-inch hollow shaft with F24 gas-engine mount, allowing direct
coupling to compatible gasoline and diesel engines without adapters. The larger shaft
diameter improves torque transfer and durability in professional-duty applications.
Built with a brass manifold, stainless steel valves, and ceramic plungers, the
XMV3G30D-F24 is designed to resist heat, chemicals, and corrosion while delivering
consistent high-pressure output.

Key Specifications

Performance & Construction

• Flow Rate: 3.0 GPM
• Maximum Pressure: 3,000 PSI
• Operating Speed: 3,400 RPM
• Shaft Type: 1″ hollow shaft
• Mount Type: F24 gas engine mount
• Pump Type: Commercial triplex ceramic plunger pump
• Manifold: Precision-machined brass
• Valves: Stainless steel
• Plungers: Solid ceramic
• Warranty: 5-year manufacturer warranty with U.S. service support

What Comes with the Pump

Factory-Supplied Components

Each Annovi Reverberi XMV3G30D-F24 arrives factory-tested and ready for installation, including:

• Pre-filled premium break-in oil for immediate startup
• Vented dipstick for quick oil checks and crankcase ventilation
• Oil sight glass for fast visual fluid monitoring
• Heavy-duty bearings designed for continuous-duty operation
• Brass manifold and stainless steel valves for corrosion resistance
• Ceramic plungers to reduce friction and extend seal life
• Mounting hardware for secure direct-drive installation
• Operator’s manual with detailed exploded parts diagram

How the Pump Works

Triplex Plunger Operation

The XMV3G30D-F24 utilizes a triplex plunger design in which three ceramic plungers
operate in precision-machined cylinders to compress water and deliver consistent
high-pressure flow. Stainless steel inlet and discharge valves regulate water movement,
ensuring smooth operation and minimal pulsation.

The F24 direct-drive mount with a 1-inch hollow shaft allows the pump to bolt directly
onto compatible gas or diesel engines, reducing drivetrain complexity, vibration,
and power loss. At 3,400 RPM, the pump delivers rapid cleaning performance while
maintaining reliability in high-demand environments.

Benefits of the XMV3G30D-F24

Key Advantages

• Professional Cleaning Power: 3,000 PSI at 3.0 GPM removes stubborn dirt, grease, and buildup.
• Direct Engine Mounting: F24 mount with 1″ hollow shaft supports gas and diesel engines.
• Durable Construction: Brass manifold, stainless steel valves, and ceramic plungers resist wear.
• Low Maintenance: Oil sight glass and vented dipstick simplify routine service.
• High Reliability: Factory-tested and backed by a 5-year warranty.
• Compact Design: Direct-drive configuration reduces system size and installation time.

Typical Use Cases

Commercial, Industrial & Contractor Applications

The Annovi Reverberi XMV3G30D-F24 is widely used in professional environments where
consistent performance and durability are essential. Typical applications include:

• Commercial cleaning of sidewalks, storefronts, and fleet vehicles
• Industrial wash bays for equipment, tools, and machinery
• Construction site cleanup of vehicles and surfaces
• Agricultural washing of tractors, implements, and livestock areas
• Rental fleets requiring rugged, long-life replacement pumps
• Contractor rigs and mobile pressure washer systems

Why Choose Annovi Reverberi

Brand Reliability & Engineering

Annovi Reverberi is globally recognized for precision pump engineering, durability,
and long-term reliability. The XMV3G30D-F24 reflects this legacy through its robust
materials, professional-grade direct-drive design, and service-friendly construction.
It is built for users who depend on their equipment every day.

SEO-Optimized Key Phrases

• Annovi Reverberi XMV3G30D-F24
• 3.0 GPM 3000 PSI triplex plunger pump
• F24 flange gas engine pressure washer pump
• 1 inch hollow shaft direct drive pressure washer pump
• Commercial brass manifold pressure washer pump

Final Summary

The Annovi Reverberi XMV3G30D-F24 is a high-performance pressure washer pump designed
for gas and diesel engine-driven systems requiring durability, efficiency, and power.
With a 1-inch hollow shaft F24 mount, 3.0 GPM flow, and 3,000 PSI output, it delivers
reliable cleaning performance in commercial, industrial, and contractor-grade applications.

Factory-tested, pre-lubricated, and backed by a 5-year warranty, this pump is ready
for immediate installation and long-term service. For professionals who demand
dependable high-pressure performance, the XMV3G30D-F24 remains a proven and trusted choice.
