XTV3G22D-F7M2I 3.0 GPM 2200 PSI Pump | 3400 RPM F7M2I

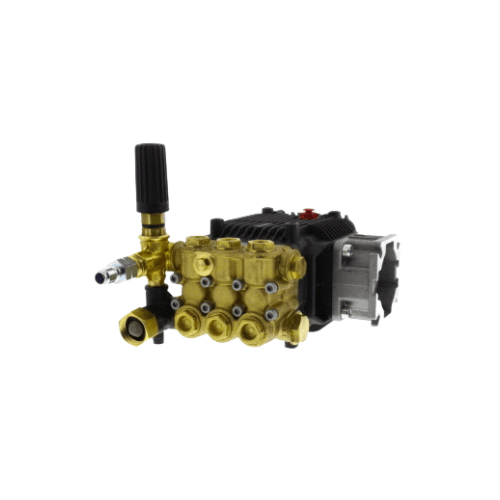

XTV3G22D-F7M2I by Annovi Reverberi — Triplex Plunger Pump with Gymatic Unloader and Chemical Injector | 3.0 GPM | 2,200 PSI | Direct Gas Engine Drive

The XTV3G22D-F7M2I by Annovi Reverberi is a commercial-grade triplex ceramic plunger pump built for gas engine-driven pressure washing systems that require consistent performance, integrated chemical application capability, and a fully rebuildable design engineered to last. Rated at 3.0 GPM and 2,200 PSI at 3,400 RPM, this pump close-couples directly to gasoline or diesel engines via its F7 SAE J609A direct-drive flange, making it a natural fit for portable contractor rigs, trailer-mounted wash systems, and gas-powered cleaning equipment across commercial and industrial applications.

Built by Annovi Reverberi in Modena, Italy — a globally recognized manufacturer with US-based operations, domestic parts distribution, and a dedicated North American support network — the XTV3G22D-F7M2I ships as a complete, factory-tested assembly. It arrives pre-filled with AR break-in oil, equipped with a Gymatic 3/B unloader and integrated downstream chemical injector, and packaged with mounting bolts and fasteners, a vented dipstick, operator’s manual, and parts schematic. Every unit is load-tested at the factory before shipment and protected by a 5-year US limited warranty through AR North America.

Decoding the XTV3G22D-F7M2I Model Number

What Every Segment of This AR Pump Designation Tells You

Annovi Reverberi encodes all critical performance, shaft, flange, unloader, and injector data directly into the pump model number. Knowing how to read it ensures you select the correct pump and verify its configuration before installation:

• XTV — Pump series: XT Series triplex plunger pump with forged brass manifold construction
• 3G22 — Performance rating: 3.0 GPM flow rate at 2,200 PSI maximum operating pressure
• D — Shaft version: Direct Gas Drive — compatible with 3/4″ or 7/8″ hollow shaft gasoline or diesel engines
• F7 — Flange type: SAE J609A direct-drive gas engine flange for SJV, XTV, RCV, and RCVU Series ‘D’ version pumps — designed for close coupling to engines with a 3/4″ I.D. cylindrical shaft (AR part AR1579)
• M2 — Unloader code: Gymatic (C2 = Gymatic per AR suffix designation) — Gymatic 3/B series internal bypass unloader with adjustable pressure regulation and brass body construction
• I — Chemical injector: Included — a downstream soap and chemical injector is integrated into the Gymatic unloader assembly, enabling low-pressure detergent application without a separate injector fitting

The “I” at the end of this model number is a specification detail that directly affects how you plumb and operate the system. It confirms a fixed-rate downstream chemical injector is built into the Gymatic unloader, allowing operators to draw detergent or degreaser from a supply container during the low-pressure rinse cycle. If your application does not require integrated chemical feed, the model variant without the “I” suffix is the correct selection.

Key Specifications of XTV3G22D-F7M2I

Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 2,200 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, low-pulsation output
• Manifold Material: Forged brass — dense, pore-free construction for corrosion resistance and long-cycle pressure integrity
• Plungers: Solid ceramic — exceptional hardness, wear resistance, and chemical inertness across extended operating hours
• Valves: Stainless steel — precise seating geometry, scale resistance, and high cycle life
• Shaft Compatibility: Direct Gas Drive (D) — 3/4″ or 7/8″ hollow shaft gas or diesel engine
• Flange: F7 — SAE J609A close-coupling flange for XTV Series ‘D’ version, gas engine direct drive (AR part AR1579)
• Unloader System: Gymatic 3/B series (M2 / C2 code) — brass-body internal bypass unloader, adjustable pressure regulation, rated to 3,650 PSI and 3–4 GPM
• Unloader Part Reference: AR20399 — adjustable Gymatic unloader, 1.8 injector ratio, 1/2″ M inlet, 3/8″ M outlet, brass body, ID stamp 1
• Chemical Injector: Included — downstream injector integrated into Gymatic unloader assembly (“I” suffix confirmed)
• Warranty: 5-year limited warranty — US-based coverage through AR North America with domestic parts availability

What’s Included in the Box

A Complete, Field-Ready Factory Assembly XTV3G22D-F7M2I

The XTV3G22D-F7M2I ships as a fully configured pump package. No additional hardware sourcing, fluid filling, or pre-run preparation is required before installation:

• Factory-installed Gymatic 3/B unloader (AR20399) — pre-mounted with integrated downstream chemical injector active and ready for detergent supply line connection
• AR factory break-in oil — crankcase pre-filled to correct operating level for initial startup without modification
• Vented dipstick — allows fast, accurate crankcase oil level checks and ensures proper crankcase pressure relief during operation
• Clear oil sight glass — visual oil level monitoring at a glance without removing the dipstick cap
• Mounting bolts and fasteners — hardware pre-selected and sized for direct F7 SAE J609A flange installation on compatible gas or diesel engines
• Operator’s manual — full installation, startup, operating, and maintenance procedures including oil change intervals and winterization guidance
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable pump component for field and shop reference
• Factory test certification — every pump load-tested at 50%, 100%, and 150% of rated output before leaving the AR manufacturing facility

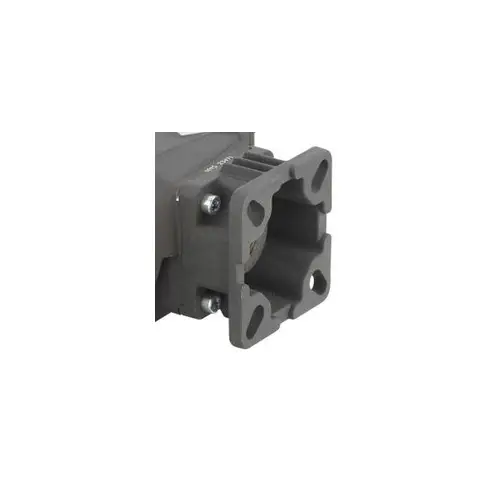

The F7 SAE J609A Gas Engine Flange

Direct-Drive Simplicity for Gas and Diesel Engine Systems

The F7 flange on the XTV3G22D-F7M2I is an AR-engineered close-coupling interface designed specifically for XTV and related Series ‘D’ version pumps paired with gasoline or diesel engines equipped with a 3/4″ cylindrical drive shaft and SAE J609A bolt pattern. This direct-drive configuration offers several practical advantages over belt or jackshaft-driven alternatives:

• No alignment guesswork — the pump and engine connect face-to-face on a common SAE J609A interface, ensuring concentric shaft alignment without adjustment procedures
• Compact installation footprint — direct coupling eliminates the frame space required for belt guards, pulleys, and tensioning hardware, reducing the overall skid or frame dimensions
• Reduced drivetrain losses — direct coupling transmits engine power to the pump more efficiently than belt drives, particularly at startup and under load spikes
• Broad engine compatibility — the F7 SAE J609A standard is used across major gas engine manufacturers, making this pump compatible with a wide range of Honda, Kohler, Briggs and Stratton, and similar commercial-grade engine platforms
• Included hardware — mounting bolts and fasteners sized for the F7 bolt pattern are supplied in the box, eliminating a sourcing step during assembly

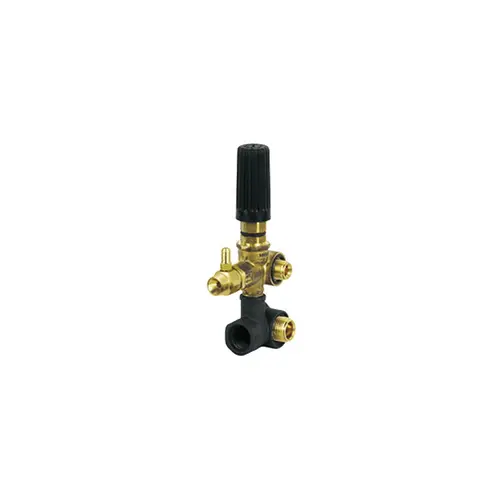

The Gymatic Unloader and Integrated Chemical Injector

Pressure Regulation and Detergent Feed in a Single Assembly

The Gymatic 3/B unloader installed on the XTV3G22D-F7M2I is AR’s internal bypass unloader platform used across the RR, XM, and RK series pump families — a proven design rated to 3,650 PSI and flow ranges from 3 to 4 GPM. On this pump, the Gymatic unloader delivers:

• Internal bypass pressure regulation — when the spray trigger is released, water is redirected through the bypass circuit rather than building deadhead pressure in the manifold, protecting seals, valves, and downstream fittings
• Adjustable operating pressure — on-site pressure tuning via the unloader adjustment allows operators to dial in working pressure for different surfaces, nozzles, and application requirements
• Integrated downstream chemical injector — the “I” suffix confirms a fixed-rate venturi-driven downstream injector is built directly into the unloader body, drawing soap, degreaser, or detergent at a controlled ratio when the operator switches to the low-pressure application mode
• Brass body durability — the unloader body resists corrosion from cleaning chemicals, chlorinated water, and outdoor exposure across years of service
• Engine protection during bypass — in idle-bypass mode, reduced system back-pressure lowers the mechanical load on the engine, reducing fuel consumption and heat buildup during trigger-off intervals on production wash jobs

The venturi injector operates without powered dosing equipment — no chemical pump, metering system, or electrical supply is needed. When the operator reduces pressure for detergent application, the pressure differential across the injector draws chemical from a supply container at the factory-set injection ratio. After detergent application, switching back to high-pressure rinse automatically closes the injector. This makes the XTV3G22D-F7M2I a complete two-mode wash platform from a single, self-contained pump assembly.

Construction Materials and Long-Term Service Life

Built to Be Rebuilt — Not Replaced

The internal material specification of the XTV3G22D-F7M2I reflects AR’s engineering philosophy: build a pump that outlasts the job, and make every wear component individually serviceable:

• Solid ceramic plungers provide hardness ratings well beyond stainless steel alternatives, resisting the abrasive micro-wear caused by dissolved minerals, particulates, and the chemical solutions drawn through the downstream injector. When plungers eventually approach service limits, they are individually replaceable — the manifold, crankcase, and all other components are retained.

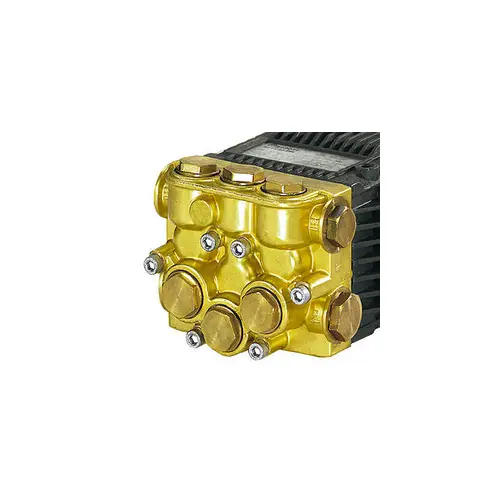

• Forged brass manifold eliminates the micro-porosity risk inherent in cast aluminum, delivering a dense pressure vessel that withstands the cyclic stress, thermal variance, and chemical exposure of commercial duty cycles without developing the corrosion pitting and hairline cracks that shorten cast manifold service life.
• Stainless steel valves maintain precise seating geometry across hundreds of thousands of pressure cycles, resisting calcium scale accumulation and the surface pitting that causes premature valve leakage and pressure loss in lesser materials.
• Triplex three-plunger design inherently produces smoother, more overlapping pressure pulses than single or duplex configurations, reducing pulsation-induced fatigue stress on hoses, spray guns, and quick-connect fittings throughout the system.

Applications and Recommended Use Environments

Where the XTV3G22D-F7M2I Performs Best

The combination of gas engine direct-drive compatibility, integrated chemical feed, and 3.0 GPM / 2,200 PSI output positions the XTV3G22D-F7M2I across a wide range of professional and commercial use cases:

• Pressure washing contractors — residential and commercial surface cleaning, concrete restoration, building exterior maintenance with chemical pre-treatment
• Fleet and vehicle washing operations — mobile wash rigs and trailer-mounted systems for trucks, vans, trailers, and service equipment
• Agricultural operations — barn and facility washdowns, livestock equipment cleaning, and implement maintenance with detergent application capability
• Property and facility maintenance — storefronts, sidewalks, loading docks, parking structures, and commercial property exteriors
• Construction and equipment cleaning — jobsite equipment washdowns, concrete forms, scaffolding, and tools with combined pressure and degreaser application
• Municipal and government services — portable contractor rigs and maintenance vehicle-mounted systems for public infrastructure cleaning
• Custom skid and frame builders — OEM integrators specifying a proven pump platform for gas-powered commercial wash equipment

5-Year US Warranty and Full Re-buildability XTV3G22D-F7M2I

A Decade of Service — Backed by Real Domestic Support

The XTV3G22D-F7M2I is covered by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based support infrastructure. Every serviceable internal component — ceramic plungers, manifold seals and o-rings, valve seats and springs, Gymatic unloader internals, and crankcase bearings — is stocked domestically through AR’s authorized service and distribution network.

With proper maintenance — oil changes at 50 hours break-in and every 500 hours thereafter, regular valve and seal inspection, chemical injector flushing with clean water after every detergent use, and seasonal winterization with RV-grade environmentally friendly antifreeze — the XTV3G22D-F7M2I is engineered to deliver 10 or more years of productive commercial service. When components eventually wear, AR North America’s domestic parts depth means rebuild kits, replacement plunger sets, and unloader service parts are available and typically in-stock — keeping your operation running rather than waiting on overseas lead times.

The Right Gas-Drive Pump with Chemical Feed — XTV3G22D-F7M2I

Italian Engineering. Direct Drive Simplicity. Integrated Detergent Capability.

For operators building or upgrading a gas engine-driven commercial wash system that requires both high-pressure cleaning and integrated chemical application, the XTV3G22D-F7M2I delivers the complete package in a single factory-tested assembly: 3.0 GPM at 2,200 PSI, SAE J609A direct-drive gas engine compatibility via the F7 flange, Gymatic internal bypass unloader, and a downstream chemical injector — all built from brass, ceramic, and stainless steel and backed by a genuine 5-year US warranty from one of the global pressure pump industry’s most established manufacturers.

From mobile contractor rigs to permanent facility wash stations, the XTV3G22D-F7M2I combines the portability of gas engine drive with the cleaning versatility of integrated detergent feed — in a fully rebuildable platform engineered to earn its place in a professional operation for years to come.
