XTV2G20D-F7 Gas Engine Pump | 2.0 GPM 2000 PSI F7 Shaft

Overview

High-Performance Triplex Gas Engine Pump

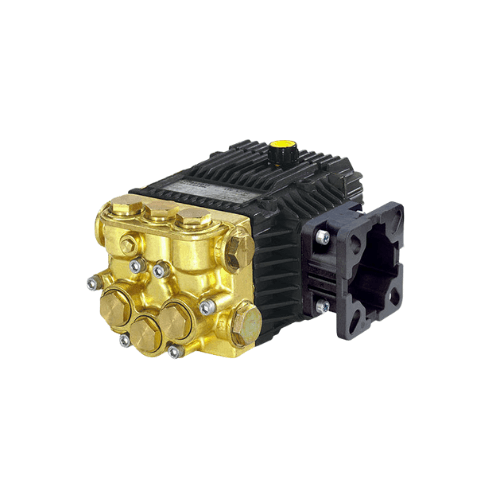

The Annovi Reverberi XTV2G20D-F7 is a compact, durable triplex ceramic plunger pump designed for direct drive to 3/4″ horizontal-shaft gas engines. Delivering 2.0 GPM at 2,000 PSI with a 3,400 RPM operating speed, it is ideal for contractor-grade and portable pressure washer applications. This pump provides consistent, professional-grade cleaning performance in a lightweight, easy-to-install package.

Constructed with precision ceramic plungers, hardened stainless steel valves, and a solid brass manifold, the XTV2G20D-F7 is engineered for long-lasting reliability. Its direct-drive F7 mount eliminates belts and pulleys, minimizing vibration and maximizing compactness. With a 5-year warranty and nationwide support, this pump is built for both residential upgrades and professional builds.

Key Specifications

• Flow Rate: 2.0 GPM
• Maximum Pressure: 2,000 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger, direct drive
• Shaft Size: 3/4″ hollow keyed shaft

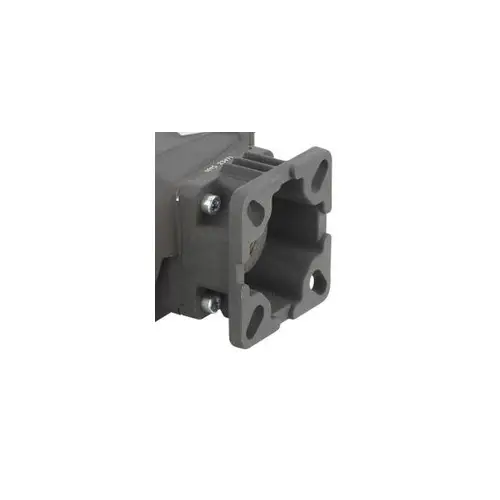

• Flange Type: F7 for gas engine mount
• Warranty: 5 years with nationwide service coverage

What’s Included

• Pre-filled break-in oil in the crankcase
• Oil sight glass for easy fluid level checks
• F7 flange mount for 3/4″ horizontal-shaft gas engines
• Owner’s manual and parts breakdown schematic
• Hardware kit and clear installation instructions

How It Works

The XTV2G20D-F7 uses a direct-drive F7 mount to connect directly to a 3/4″ horizontal-shaft gas engine, eliminating belts and pulleys for a compact, vibration-resistant design. Inside, the triplex plunger system with ceramic plungers and stainless steel check valves pressurizes water up to 2,000 PSI at a consistent 2.0 GPM flow.

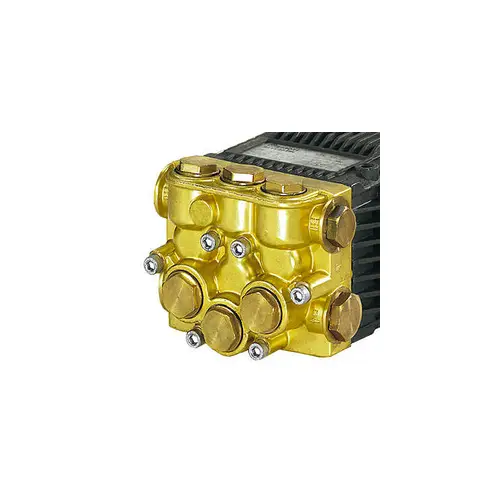

A solid brass manifold ensures corrosion resistance, while the oil bath crankcase and sight glass allow smooth operation and easy maintenance. The combination of direct-drive power and durable construction makes this pump ideal for continuous-duty cleaning tasks.

Benefits

• Professional Cleaning Power – 2,000 PSI at 2.0 GPM for tough dirt and grime
• Direct Engine Drive – Compatible with 3/4″ horizontal-shaft gas engines
• Durable Build – Brass manifold, ceramic plungers, and stainless steel valves for long-lasting performance
• Compact & Portable – Lightweight, direct-drive design for mobile and contractor-grade units
• Low Maintenance – Pre-filled oil and oil sight glass for quick monitoring
• Nationwide Support – 5-year warranty and U.S.-based service centers

Typical Applications

• Contractor Pressure Washing: Driveways, decks, patios, siding
• Fleet & Farm Maintenance: Trucks, trailers, tractors, agricultural machinery
• Property Management Cleaning: Apartment complexes, storefronts, rental properties
• Portable Gas-Powered Units: Ideal for compact mobile pressure washers
• Light Industrial Cleaning: Workshop floors, tools, and construction equipment

Why Choose Annovi Reverberi

Annovi Reverberi (AR) is a global leader in pump technology, known for innovation, durability, and consistent performance. The XTV2G20D-F7 balances compact size with professional-grade reliability, making it ideal for contractor rigs, mobile washing systems, and residential upgrades. Each pump is factory-tested for pressure and leakage, ensuring full performance upon delivery.

Summary

The Annovi Reverberi XTV2G20D-F7 pump delivers 2.0 GPM at 2,000 PSI using a rugged triplex ceramic plunger design. Its brass manifold, ceramic plungers, stainless steel valves, and direct-drive F7 flange mount make it perfect for contractor-grade portable pressure washers and 3/4″ gas engine applications. With a 5-year warranty and nationwide support, it’s a reliable solution for residential, commercial, and light industrial cleaning.
