RCV2G22D-F7 2.0 GPM 2200 PSI | Horizontal Triplex Pump

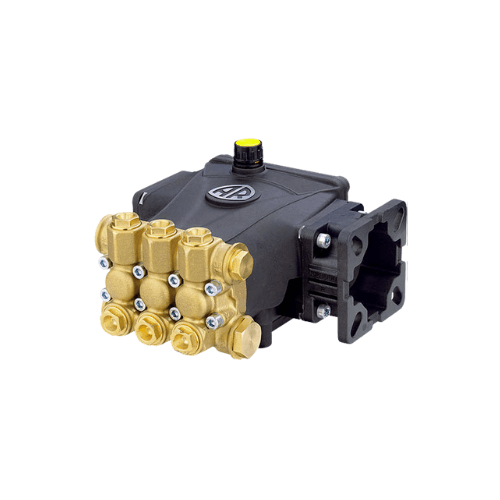

RCV2G22D-F7 — 2.0 GPM, 2200 PSI Triplex Pump, F7 Gas Engine Mount

• Compact horizontal triplex plunger pump built for premium residential units and light-duty commercial service.
• Delivers 2.0 GPM at 2200 PSI at 3400 RPM for strong cleaning performance in a small direct-drive package.
• F7 flange with 3/4″ hollow shaft supports direct coupling to compatible small-engine pressure washer frames.
• WSHPWR.com-ready replacement and OEM option for compact contractor rigs where space and uptime matter.

Performance Specifications for RCV2G22D-F7

• Flow Rate: 2.0 GPM.
• Maximum Pressure: 2200 PSI.
• Operating Speed: 3400 RPM.
• Shaft Type: 3/4 inch hollow shaft for standard gasoline engine.
• Flange Type: F7, SAE J609A standard most commonly GX200 Honda.
• Pump Design: Horizontal triplex plunger.
• Warranty: 5-year commercial warranty with U.S.-based support.

Mounting & Integration

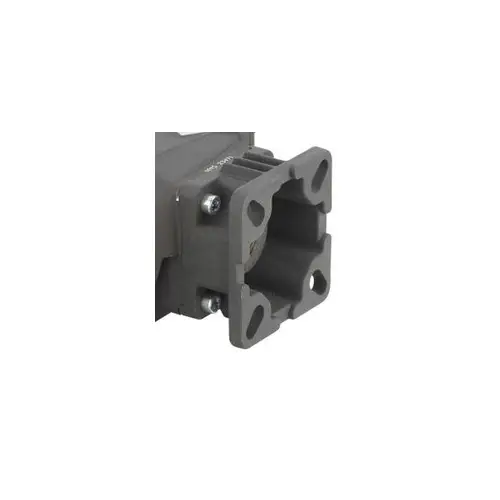

• F7 direct-mount configuration supports fast bolt-on installation with consistent alignment on common compact frames.
• Small footprint integrates cleanly into portable carts, OEM frames, and rental-yard equipment layouts.
• Direct-drive architecture reduces setup variables for service replacements and standardized builds.
• Well-suited for systems where balanced output and compact packaging are more important than high flow.

Included Components

• RCV2G22D-F7 pump pre-filled with break-in oil.
• Oil sight glass and vented dipstick.
• Mounting hardware for engine flange installation.
• Owner’s manual and exploded-view parts diagram.

Materials & Construction

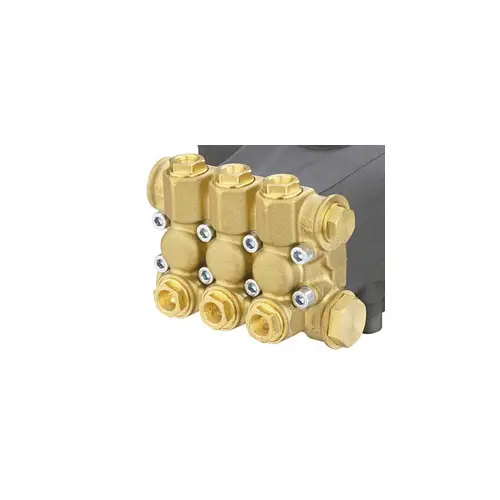

• Precision-machined brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match engine horsepower and operating RPM to the intended pressure and flow.
• Confirm secure mounting and proper drive engagement before initial start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits of RCV2G22D-F7

• Triplex plungers with ceramic pistons provide smooth output and long seal life.
• Compact layout brings commercial-level reliability to small-engine platforms.
• F7 flange 3/4 inch hollow shaft with keyway enables plug-and-play engine mounting with minimal alignment work.
• Pre-filled oil, sight glass, and vented dipstick reduce setup time and maintenance effort.
• Corrosion-resistant construction supports frequent use in wet, dirty environments.

Typical Applications

• Gas-powered pressure washer replacements and OEM builds.
• Residential driveways, patios, decks, and siding cleaning.
• Light-duty commercial detail work where larger pumps are unnecessary.
• Rental yard units requiring reliable, easy-to-service pumps.
