RCA3G25E-F8SX LH Electric Pump | 3.0 GPM 2500 PSI

RCA3G25E-F8SX Overview

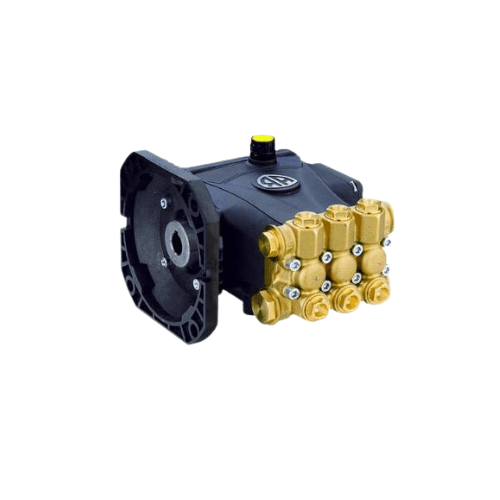

3.0 GPM, 2500 PSI left-hand electric triplex pump

• The Annovi Reverberi RCA3G25E-F8SX is a commercial-grade electric triplex plunger
  pump engineered for durability, efficiency, and powerful performance across a wide range of
  high-pressure cleaning applications.
• Delivers 3.0 GPM at 2500 PSI, providing consistent cleaning strength for both
  residential and commercial users who need reliable, repeatable output.
• Built around a low-speed 1750 RPM drive, the pump runs smoothly with reduced noise,
  vibration, and internal wear compared to higher-RPM alternatives.

Drive Configuration

Left-hand F8SX mount for electric motors

• Features a left-hand (SX) shaft orientation that simplifies integration into systems
  requiring a mirrored drive layout or paired pump configurations.

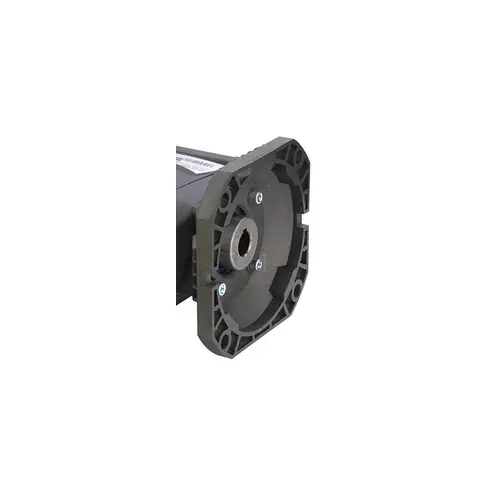

• Equipped with an F8SX motor flange designed to bolt directly to compatible 56C-frame
  electric motors, eliminating the need for belt drives, extra brackets, or complex alignment.
• Direct-coupled design improves power transfer efficiency and long-term alignment, helping protect
  bearings, seals, and couplings over extended duty cycles.

Key Specifications for RCA3G25E-F8SX

Duty point and mechanical details

• Flow Rate: 3.0 GPM
• Maximum Pressure: 2500 PSI
• Operating Speed: 1750 RPM
• Configuration: Left-hand (SX) shaft layout
• Flange Type: F8 electric motor mount
• Pump Type: Triplex plunger pump with ceramic plungers
• Warranty: 5-year manufacturer warranty with nationwide service support

Pump Construction

Premium materials and service-friendly design

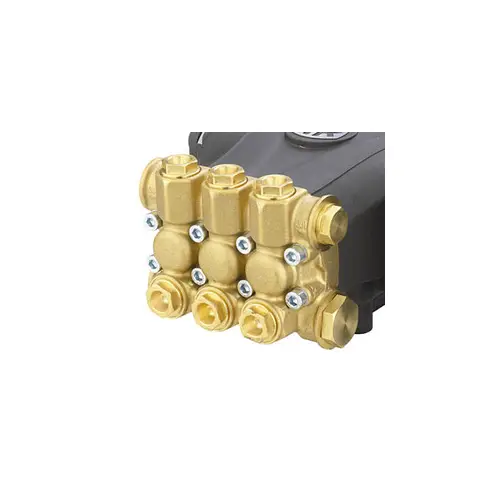

• Brass manifold provides excellent corrosion resistance and structural strength for
  long-term operation in wash bays, mobile rigs, and facility environments.
• Stainless-steel valves are engineered for precise timing, reliable sealing, and
  extended life under high-pressure cycling.
• Ceramic plungers resist scoring and thermal shock, maintaining smooth pumping
  action and reducing maintenance frequency.
• Low-speed 1750 RPM operation reduces heat build-up and mechanical fatigue,
  extending the life of seals, bearings, and internal wear surfaces.
• Integrated oil sight glass and vented dipstick make routine oil
  checks and changes fast and intuitive, encouraging proper preventative maintenance.

What’s Included with RCA3G25E-F8SX

Ready-to-install from the box

• Shipped pre-filled with premium break-in oil so initial startup is quick and
  hassle-free.
• Includes a vented dipstick for easy servicing and pressure-balanced crankcase
  operation.
• Oil sight glass provides at-a-glance confirmation of oil level and condition.
• Supplied with an operator’s manual and detailed parts breakdown schematic
  to assist with installation, troubleshooting, and long-term maintenance.
• Backed by a 5-year manufacturer warranty with nationwide technical and service
  support for added peace of mind.

How It Works

Triplex plunger hydraulics for smooth, consistent flow

• RCA3G25E-F8SX utilizes a triplex plunger design with three ceramic plungers working in sequence to
  generate smooth, consistent high-pressure water flow.
• Triplex configuration reduces pulsation and vibration, helping protect hoses, guns, fittings, and
  accessories from shock loads.
• Brass manifold, stainless valves, and ceramic plungers work together to withstand
  demanding duty cycles, abrasive environments, and frequent start/stop operation.
• Left-hand F8SX flange design allows direct mounting to electric motors, creating a compact, efficient
  pump-and-motor assembly that is easy to integrate into existing frames or skids.

Benefits of RCA3G25E-F8SX

Performance, durability, and easy ownership

• Strong cleaning power at 3.0 GPM and 2500 PSI handles everything from residential
  siding and patios to commercial vehicles and equipment washdown.
• Durable construction with brass, stainless steel, and ceramic components delivers
  long service life under demanding operating conditions.
• Low-speed efficiency at 1750 RPM reduces internal stress, heat, and noise, helping
  keep maintenance intervals predictable and long.
• Flexible installation thanks to the left-hand F8SX configuration, supporting a wide
  variety of electric motor and frame layouts.
• Easy maintenance with a sight glass and vented dipstick that simplify oil monitoring,
  changes, and long-term pump care.
• Warranty protection and nationwide support network provide confidence for contractors,
  businesses, and homeowners alike.

Typical Applications

Residential, commercial, and light industrial cleaning

• Residential cleaning: driveways, patios, decks, fences, siding, and outdoor furniture.
• Commercial use: storefront exteriors, walkways, small business equipment, and service
  vehicle fleets.
• Industrial applications: machinery washdown, workshop cleanup, and facility maintenance
  where reliable high-pressure output is required.
• Surface preparation: removes dirt, grease, and contaminants before painting, coating,
  or sealing projects.
• Contractor work: dependable choice for pressure-washing professionals who need
  consistent performance and rugged construction on job sites.

Summary

Left-hand F8SX triplex pump for 3.0 GPM @ 2500 PSI

• The RCA3G25E-F8SX Electric Pump combines 3.0 GPM flow, 2500 PSI pressure, and low
  1750 RPM operation in a left-hand F8SX configuration built for both performance and longevity.
• With its triplex plunger design, brass manifold, premium internal components, and maintenance-friendly
  features, it delivers professional-grade cleaning capability backed by a 5-year warranty and nationwide
  service support.
