XMV3G32D-F24C2 3.0 GPM 3200 PSI Pump | F24C2 Upgrade Kit

XMV3G32D-F24C2 by Annovi Reverberi — XMV Series Triplex Plunger Pump with Gymatic C2 Unloader | 3.0 GPM | 3,200 PSI | Forged Brass Manifold | 1″ Hollow Keyway Shaft | SAE J609a F24 Gas and Diesel Engine Drive | 3,400 RPM

The XMV3G32D-F24C2 by Annovi Reverberi is a high-performance XMV Series triplex ceramic plunger pump engineered for gas and diesel engine-driven pressure washing systems requiring 3.0 GPM at 3,200 PSI with factory-matched Gymatic C2 pressure regulation. Rated at 3.0 GPM and 3,200 PSI at 3,400 RPM, the XMV3G32D-F24C2 delivers 9,600 cleaning units — combining 3.0 GPM output with 3,200 PSI cleaning force for fleet washing, construction equipment cleaning, agricultural operations, municipal services, contractor wash systems, and industrial facility maintenance — through a forged brass manifold, solid ceramic plungers, stainless steel valves, and an F24 SAE J609a flange with 1″ hollow keyway shaft for direct coupling to compatible gasoline or diesel engines. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the XMV3G32D-F24C2 arrives factory-configured and factory-tested, ready to deliver from the first startup.

The XMV3G32D-F24C2 carries the factory-installed Gymatic C2 adjustable unloader — delivering smooth, precise pressure regulation and safe bypass operation that reduces stress on the pump, prevents pressure spikes at trigger release, and extends long-term service life. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the XMV3G32D-F24C2 is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The XMV3G32D-F24C2 Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every XMV3G32D-F24C2 ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched C2 for 3,200 PSI — the Gymatic C2 adjustable unloader is factory-calibrated for this pump’s 3.0 GPM / 3,200 PSI duty point. Pressure regulation and bypass characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every XMV3G32D-F24C2 exits the manufacturing facility with the C2 assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine via the F24 SAE J609a flange, connect system hoses, add fuel, and start. The XMV3G32D-F24C2 arrives engineered, assembled, and ready.

Decoding the XMV3G32D-F24C2 Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• XMV — Pump series: XMV Series heavy-duty triplex plunger pump — Annovi Reverberi’s commercial gas and diesel engine platform
• 3G — Pump series identifier for this XMV configuration
• 32 — Maximum pressure: 3,200 PSI — 3.0 × 3,200 = 9,600 cleaning units
• D — Shaft version: Direct Drive — 3,400 RPM for direct gas or diesel engine coupling per Annovi Reverberi model designation convention
• F24 — Flange type: SAE J609a — XMV Series ‘D’ version with 1″ hollow keyway shaft for direct coupling to compatible gas and diesel engines (Annovi Reverberi part AR41866)
• C2 — Unloader family: Gymatic 3/B adjustable unloader — smooth pressure regulation and safe bypass operation; factory-installed and factory-calibrated for 3.0 GPM / 3,200 PSI
• No trailing I suffix — no factory-installed downstream chemical injector; straight 3,200 PSI water output

XMV3G D-Series Family — F24 vs F25 Flange

Both models share the XMV Series platform, Gymatic C2 unloader, forged brass manifold, and 3.0 GPM output. Pressure rating and flange are the key differences:

• XMV3G32D-F24C2 (this model) — 3,200 PSI / 9,600 CU / F24 flange — 1″ hollow keyway shaft. Higher pressure output for demanding commercial and industrial cleaning applications on engines with 1″ keyway shafts.
• XMV3G30D-F25C2 — 3,000 PSI / 9,000 CU / F25 flange — 3/4″ shaft. Same XMV platform at 200 PSI lower for gas and diesel engines with 3/4″ horizontal shaft configurations.

Key Specifications

XMV3G32D-F24C2 Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,200 PSI
• Cleaning Units: 9,600 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: XMV Series triplex ceramic plunger pump — smooth, consistent high-pressure output
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, gas and diesel engine compatible (Annovi Reverberi part AR41866)
• Manifold Material: Forged brass — high-strength corrosion resistance for continuous-duty operation in high-temperature and chemical environments
• Plungers: Solid ceramic — reduced friction, heat buildup, and seal wear
• Valves: Stainless steel — reliable sealing under high pressure and chemical exposure
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Gymatic C2 — factory-installed adjustable unloader with smooth bypass; banjo bolts and sealing O-rings included
• Chemical Injector: Not included — straight 3,200 PSI water output
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

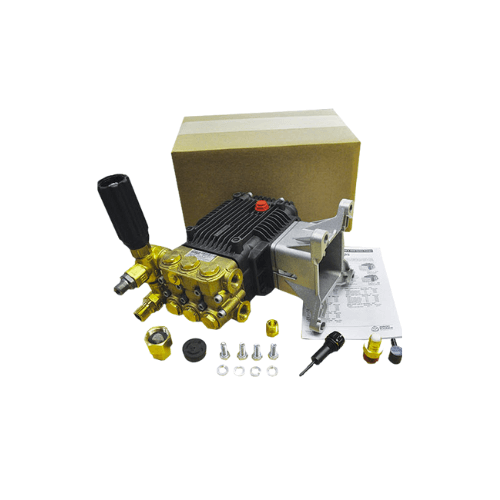

What’s Included in the Box

A Complete, Factory-Configured XMV3G32D-F24C2 Assembly Ready for Installation

• Factory-matched Gymatic C2 adjustable unloader — installed and calibrated for the 3.0 GPM / 3,200 PSI operating point; smooth pressure regulation and safe bypass
• Banjo bolts and sealing O-rings — standard C2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting bolts — for secure F24 SAE J609a flange installation on compatible gas and diesel engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals and winterization protocol
• Parts schematic — exploded-view diagram with Annovi Reverberi part numbers for every serviceable component

Gymatic C2 Unloader — Smooth Pressure Regulation at 3,200 PSI

Factory-Calibrated. Adjustable. Safe Bypass. Commercial Duty Ready.

• Smooth, precise pressure regulation at 3,200 PSI — the Gymatic C2 on the XMV3G32D-F24C2 delivers accurate, consistent pressure output with manual adjustment available for fine-tuning to match nozzle size, surface type, and cleaning task requirements
• Safe bypass at trigger release — the C2 unloader smoothly diverts water flow when the trigger gun is released on the XMV3G32D-F24C2, reducing mechanical stress on the pump and preventing the damaging pressure spikes that shorten service life in commercial and industrial cleaning operations
• Bypass protection at continuous duty speed — smooth, consistent bypass at 3,400 RPM gas or diesel engine speed protects ceramic plungers, forged brass manifold seals, and crankcase components during the frequent trigger cycling of fleet washing, contractor, and facility cleaning programs
• Straight 3,200 PSI water output — no factory-installed injector on the XMV3G32D-F24C2. Chemical delivery managed externally when detergent application is required, integrating cleanly with dedicated chemical delivery systems used in professional contractor and industrial cleaning operations.
• Banjo bolt connections — standard C2 family hardware ensures secure, leak-resistant unloader installation with simplified field service

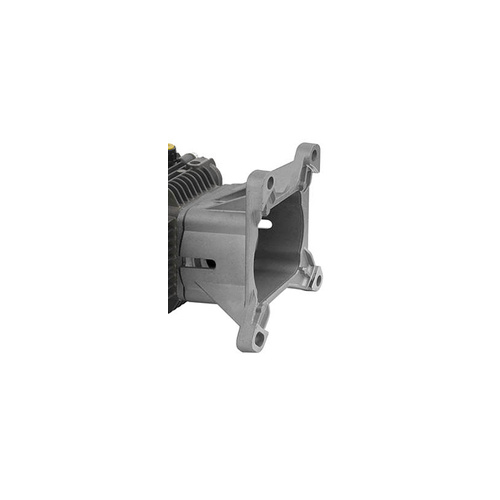

F24 Flange — 1″ Hollow Keyway Shaft for Broad Engine Compatibility

1″ Keyway. SAE J609a. Gas and Diesel Engine Direct Drive.

• 1″ hollow keyway shaft for broad engine compatibility — the F24 SAE J609a flange on the XMV3G32D-F24C2 uses a 1″ hollow keyway shaft, compatible with a wide range of commercial gas and diesel engines used on contractor trailers, portable rigs, and stationary wash systems
• Direct mounting for secure, efficient power transfer — the XMV3G32D-F24C2 mounts directly to compatible engines via the F24 flange, eliminating belt alignment variables and providing efficient mechanical power transfer from engine to pump at 3,400 RPM operating speed
• Retrofit and replacement compatibility — the F24 1″ keyway interface is a common specification on commercial gas and diesel engine platforms, making the XMV3G32D-F24C2 a practical replacement for worn or underpowered pumps on existing contractor and industrial pressure washing systems

Typical Applications

Where the XMV3G32D-F24C2 Delivers Best Results

• Fleet washing — trucks, trailers, buses, and service vehicles where the XMV3G32D-F24C2’s 3,200 PSI output and direct gas or diesel engine drive deliver effective fleet cleaning performance on portable and stationary wash systems
• Construction equipment cleaning — bulldozers, loaders, excavators, and heavy machinery where 9,600 cleaning unit output handles heavy contamination efficiently on job-site gas engine-powered cleaning systems
• Agricultural cleaning — tractors, combines, barns, and livestock enclosures where the XMV3G32D-F24C2’s commercial-duty forged brass construction and broad engine compatibility support demanding agricultural washing programs
• Municipal services — utility fleets, sanitation vehicles, and public works maintenance where the XMV3G32D-F24C2’s reliable commercial-duty performance and factory-matched C2 assembly support scheduled municipal cleaning programs
• Contractor wash systems — mobile and job-site cleaning rigs where the XMV3G32D-F24C2’s F24 1″ keyway shaft compatibility, forged brass durability, and straight water output integrate cleanly into professional contractor cleaning systems
• Industrial facilities — warehouses, factories, and workshops where the XMV3G32D-F24C2’s continuous-duty gas or diesel engine-driven output delivers consistent 3,200 PSI cleaning performance across industrial surface maintenance programs

For operators who prefer a fully configured engine-driven system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

XMV Series Commercial Performance Backed by Domestic Support

The XMV3G32D-F24C2 is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, forged brass manifold seals and o-rings, stainless valve seats and springs, Gymatic C2 unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, fleet operators, municipal maintenance teams, facility managers, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the XMV3G32D-F24C2 and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

9,600 Cleaning Units. 3,200 PSI. 3.0 GPM. F24 SAE J609a. 1″ Keyway. Gymatic C2. Forged Brass. Gas and Diesel Engine.

Italian Engineering. Direct Engine Drive. Factory-Approved Gymatic C2 Assembly. US Warranty Coverage.

For contractors, fleet operators, municipal maintenance teams, agricultural operations, and industrial facility managers who need 3.0 GPM at 3,200 PSI on a gas or diesel engine platform — with F24 SAE J609a direct-drive flange for 1″ hollow keyway shaft engine coupling, factory-matched Gymatic C2 adjustable unloader for smooth pressure regulation and safe bypass protection, forged brass manifold construction for continuous-duty commercial service, and a completely rebuildable platform backed by a 5-year US warranty — the XMV3G32D-F24C2 delivers a purpose-engineered commercial cleaning solution from one of the global pressure pump industry’s most trusted manufacturers. Nine thousand six hundred cleaning units. Direct gas and diesel engine drive. Factory-approved Gymatic C2 assembly. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
