XMV3G32-PKG | 3 GPM 3200 PSI Triplex Pump Package 3400 RPM

XMV3G32-PKG by Annovi Reverberi — Complete XMV Series Triplex Pump Package | 3.0 GPM | 3,200 PSI | Forged Brass Manifold | Gymatic C2 Unloader | F24 SAE J609a 1″ Shaft | Direct Drive Gas Engine | 9,600 Cleaning Units

The XMV3G32-PKG by Annovi Reverberi is a complete, installation-ready XMV Series triplex ceramic plunger pump package engineered for direct drive gas engine-powered pressure washing systems requiring 3.0 GPM at 3,200 PSI. Rated at 3.0 GPM and 3,200 PSI, the XMV3G32-PKG delivers 9,600 cleaning units — the output of a compact professional cleaning platform built for contractor rigs, portable skid systems, fleet vehicle detail bays, agricultural operations, and light industrial and municipal cleaning — through solid ceramic plungers, a forged brass manifold, stainless steel valves, dual redundant packing, and an F24 SAE J609a direct-drive flange with 1″ shaft for direct coupling to compatible 11–13 HP gasoline engines. Every fitting, every bolt, the unloader, and the manual ship in one organized box. Mount it. Connect it. Wash. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the XMV3G32-PKG is the complete compact answer for operators who need 3,200 PSI ready to run.

The XMV3G32-PKG is a factory-engineered, factory-assembled, factory-tested complete system — designed by Annovi Reverberi in Modena, Italy and distributed across North America by AR North America. Whether you are replacing a worn pump on a compact contractor rig, building a new portable skid for detail work, specifying a pump for an OEM installation, or outfitting a Predator-powered system for agricultural or light industrial use — the XMV3G32-PKG eliminates every compatibility question before the box is opened. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this is a decade-of-service investment in a compact package.

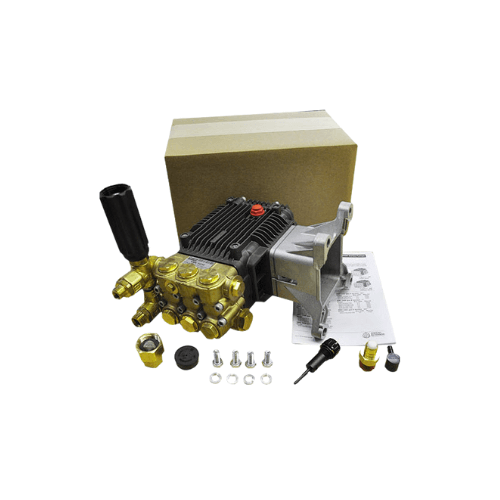

Everything in One Box — The XMV3G32-PKG Complete Package Contents

No Return Trips. No Guesswork. No Compatibility Risk. Same-Day Install.

Open the XMV3G32-PKG box and find everything required for a complete engine-to-pump installation:

• XMV3G32 triplex ceramic plunger pump — factory-tested and pre-lubricated with break-in oil. Solid ceramic plungers, forged brass manifold, stainless steel valves, dual redundant packing, oversized crankshaft bearings — factory-installed and factory-verified. Ready to mount.
• Gymatic C2 adjustable unloader with banjo bolts and sealing O-rings — factory-matched and factory-installed for the 3.0 GPM / 3,200 PSI duty point. Smooth pressure regulation and safe bypass from first startup. The right unloader for this pump. Already on it.
• Fittings and mounting hardware — every fitting and fastener required for integration onto contractor skids, portable frames, flatbed rigs, and OEM installations. Organized in the box. Nothing to source separately.
• Chemical injector and suction hose — not included — the XMV3G32-PKG delivers straight 3,200 PSI high-pressure water output. When detergent capability is required, a downstream chemical injector and suction assembly are sourced separately and connected to the system outlet. Choose the draw rate and connection style that matches your cleaning program.
• Factory break-in oil — crankcase pre-filled. First-startup protection already handled.
• Oil sight glass and vented dipstick — at-a-glance oil monitoring from day one.
• Thermal relief valve — factory-installed protection against pump head overheating during extended bypass periods.
• Installation and service manual — complete setup, operating, service, and rebuild procedures with Annovi Reverberi part numbers for every component. AR North America parts availability confirmed across North America.

Decoding the XMV3G32-PKG

What This Annovi Reverberi Pump Package Designation Tells You

• XMV — Pump series: XMV Series commercial triplex plunger pump — Annovi Reverberi’s compact professional gas engine platform
• 3G — Pump series identifier for this XMV configuration
• 32 — Maximum pressure: 3,200 PSI — 3.0 × 3,200 = 9,600 cleaning units
• PKG — Complete package: pump, Gymatic C2 unloader with banjo bolts, fittings, mounting hardware, thermal relief valve, manual, and factory break-in oil — everything required for a complete engine-to-pump installation in one organized box

Key Specifications

XMV3G32-PKG Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,200 PSI
• Cleaning Units: 9,600 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Engine Range: 11–13 HP gasoline engines with 1″ SAE J609a horizontal keyway shaft
• Pump Type: XMV Series triplex ceramic plunger pump — smooth, low-pulsation output
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, direct drive gas engine compatible (Annovi Reverberi part AR41866)
• Manifold: Forged brass — corrosion resistance and fatigue resistance under sustained high-pressure operation
• Plungers: Solid ceramic — abrasion, heat, and chemical exposure resistance
• Valves: Stainless steel inlet and discharge — dependable sealing and long service life
• Packing: Dual redundant — extended seal life, reduced leakage risk, minimized maintenance frequency
• Volumetric Efficiency: Approximately 93% — efficient energy use, cooler operation, reliable output
• Bearings: Oversized crankshaft — drivetrain stability under continuous-duty workloads
• Lubrication: Vented oil-bath crankcase — constant lubrication and cooler internal operating temperatures
• Thermal Relief: Included — prevents overheating during bypass operation
• Unloader: Gymatic C2 — factory-matched, factory-installed, banjo bolts and O-rings included
• Chemical Injector: Not included — straight 3,200 PSI water output; downstream injector sourced separately
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the XMV3G32-PKG

F24 SAE J609a. 1″ Hollow Keyway Shaft. 11–13 HP Range. Predator-Compatible.

The XMV3G32-PKG‘s F24 SAE J609a direct-drive flange accepts a 1″ hollow keyway shaft rated for 11–13 HP gasoline engines. This compact engine range makes the XMV3G32-PKG one of the most versatile packages in the lineup — compatible with both smaller portable builds and full-size contractor engine platforms:

• Harbor Freight Predator 420cc / 13 HP — the top of the XMV3G32-PKG’s compatible engine range and the most common contractor pairing. Direct value-priced replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the F24 1″ keyway shaft — the natural choice for contractors building Predator-powered portable rigs and compact flatbed stations with the XMV3G32-PKG.
• Harbor Freight Predator 459cc / 15.8 HP Max Performance — up to 10% more torque than the standard 420cc. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the XMV3G32-PKG F24 1″ keyway shaft — the preferred single-cylinder Predator pairing for sustained high-pressure continuous-duty operation.

Built for the Predator-Powered Contractor Rig

Compact. Portable. Predator-Ready. Build Your Own System.

• Build your own compact system — own the savings and the quality — a Predator 420cc paired with the XMV3G32-PKG delivers 9,600 cleaning units of professional output in a compact, lightweight package at a fraction of OEM-assembled pressure washer costs. Portable contractor rigs, detail wash builds, compact flatbed stations — the XMV3G32-PKG is the right-sized package for operators who need professional performance without unnecessary bulk.
• Right-sized for compact and portable applications — the XMV3G32-PKG’s 3.0 GPM / 3,200 PSI output hits the sweet spot for contractor detail work, fleet vehicle washing, agricultural equipment, and light industrial cleaning where the larger 4.0 GPM packages exceed the application requirements. More than enough power. Right-sized for the job.
• OEM specification for compact gas engine frames — OEM builders designing compact pressure washer systems around 11–13 HP engines can specify the XMV3G32-PKG with confidence that every unit ships factory-tested, factory-assembled, and factory-warrantied to the same specification.
• AR North America national parts network — every wear component in the XMV3G32-PKG is stocked through AR North America’s domestic distribution. Rebuild kits, packing kits, valve assemblies, C2 unloader service parts — available nationally. The system stays running.

93% Volumetric Efficiency and Dual Redundant Packing — Built to Last

More Output Per HP. Less Heat. Longer Service Intervals.

• 93% volumetric efficiency at 3,200 PSI — the XMV3G32-PKG transfers approximately 93% of engine input energy into usable water flow at the outlet. Higher efficiency means cooler operation — a critical advantage when running compact 11–13 HP engines at their rated output where heat management directly impacts pump and engine service life.
• Dual redundant packing system — two independent sealing stages on each plunger double seal life compared to standard packing designs. Reduced leakage risk and minimized maintenance frequency across the daily cleaning cycles of contractor, agricultural, and light industrial applications.
• Thermal relief protection — built-in thermal relief prevents the XMV3G32-PKG pump head from overheating when the system is left in bypass during operator pauses, protecting ceramic plungers and packing seals from heat damage in the field.
• Service-friendly design — accessible valve assemblies, plungers, and packing kits make the XMV3G32-PKG straightforward to service and rebuild in the field. When wear components need replacement, the parts are available nationally through AR North America and the work is designed to be done on-site.

Typical Applications

Where the XMV3G32-PKG Delivers Best Results

• Contractor surface prep rigs, detail wash rigs, and light construction cleanup — the XMV3G32-PKG’s compact 3.0 GPM / 3,200 PSI output and complete factory package give contractors a drop-in-ready professional cleaning solution for portable and semi-portable gas engine-driven systems
• Fleet vehicle detail bays and small fleet systems — 3,200 PSI cleaning force handles fleet vehicle surfaces efficiently in compact gas engine wash systems where the larger 4.0 GPM packages exceed the installation footprint
• Agricultural operations — barns, pens, tractors, and irrigation washdown where the XMV3G32-PKG’s compact size and 9,600 cleaning unit output handle agricultural cleaning tasks on portable gas engine-powered rigs
• Food and beverage conveyor and floor sanitation — when used with approved cleaning agents and appropriate sanitation procedures, the XMV3G32-PKG supports USDA-compliant wash station builds in compact gas engine-powered configurations
• Light industrial tool washdown, machinery maintenance, and plant sanitation — compact gas engine direct-drive output delivers reliable 3,200 PSI cleaning performance for light industrial maintenance programs
• Municipal sidewalks, smaller transit vehicles, and public works service bays — standardized, rebuildable compact pump packages with national parts availability support scheduled municipal cleaning programs at smaller scale

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

Built in Italy. Distributed Across North America. Compact Platform. Backed for Five Years.

The XMV3G32-PKG is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — solid ceramic plungers, forged brass manifold seals and o-rings, stainless valve seats, Gymatic C2 unloader service parts, dual redundant packing kits, and oversized crankcase bearings — is stocked nationally through authorized AR North America distribution channels. Contractors, fleet operators, agricultural operations, light industrial facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the XMV3G32-PKG and the complete WSHPWR pump package lineup. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

9,600 Cleaning Units. 3,200 PSI. 3.0 GPM. F24 SAE J609a. Gymatic C2. Compact Gas Engine. Everything in One Box.

Italian Engineering. Predator-Compatible 11–13 HP. Complete Factory Package. 5-Year US Warranty.

Stop sourcing components one at a time. Stop guessing at unloader compatibility. The XMV3G32-PKG is the complete Annovi Reverberi compact pump package for contractors, detail wash operators, agricultural teams, light industrial facilities, OEM builders, and Predator-powered rig operators who need 3.0 GPM at 3,200 PSI with zero installation surprises. Forged brass manifold. Dual redundant packing. 93% volumetric efficiency. Gymatic C2 unloader. Thermal relief valve. Every fitting and every bolt. Factory-tested. Pre-lubricated. Five-year US warranty. One box. Same-day install.

Volume buyers and contractors building compact systems can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
