XMV3G30D-F24C2G 3.0 GPM 3000 PSI Pump | F24C2G Version

XMV3G30D-F24C2G by Annovi Reverberi — Triplex Plunger Pump with Gymatic Unloader | 3.0 GPM | 3,000 PSI | 1″ Hollow Keyway Shaft | SAE J609A Gas and Diesel Engine Drive | No Chemical Injector

The XMV3G30D-F24C2G by Annovi Reverberi is a professional-grade triplex ceramic plunger pump engineered for gas and diesel engine-driven pressure washing systems that operate at 3,000 PSI and require dependable Gymatic internal bypass pressure control without an integrated downstream chemical injector. Rated at 3.0 GPM and 3,000 PSI at 3,400 RPM, the XMV3G30D-F24C2G is built around a 1″ hollow keyway crankshaft and F24 SAE J609A direct-drive flange — close-coupling directly to gasoline or diesel engines with a 1″ cylindrical shaft without adapters, brackets, or intermediate couplings. The “G” suffix in this model designation is an AR assembly specification confirming the Gymatic unloader family was installed — a distinction that matters on the XM Series platform, which can be assembled with either Mini-Matic or Gymatic unloader systems depending on the application.

Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated AR North America technical support — the XMV3G30D-F24C2G arrives as a complete, factory-tested assembly. Pre-filled with AR break-in oil, equipped with a Gymatic unloader for internal bypass pressure regulation, and packaged with mounting bolts and fasteners, a vented dipstick, operator’s manual, and full parts schematic, this pump is ready to install from the moment it arrives. Protected by a 5-year US limited warranty through AR North America and built to be fully rebuilt rather than replaced, the XMV3G30D-F24C2G is a long-term investment in a high-pressure pump platform capable of a decade of productive commercial service life.

Decoding the XMV3G30D-F24C2G Model Number

What Every Segment of This AR Pump Designation Tells You

Annovi Reverberi encodes all critical specification data — pump series, performance output, shaft type, flange interface, unloader family, and assembly confirmation — directly into the model number. Reading the XMV3G30D-F24C2G correctly before specifying or installing confirms engine compatibility, pressure rating, unloader family, and injector status:

• XMV — Pump series: XM Series triplex plunger pump — AR’s commercial and industrial high-pressure platform with forged brass manifold construction, engineered for 3,000 PSI and above operating pressures
• 3G30 — Performance rating: 3.0 GPM flow rate at 3,000 PSI maximum operating pressure
• D — Shaft version: Direct Gas/Diesel Drive — 1″ hollow keyway crankshaft bore for direct coupling to gasoline or diesel engine 1″ output shafts
• F24 — Flange type: SAE J609A direct-drive flange for XM/RRV Series ‘D’ version pumps — close coupling to gas or diesel engines with a 1″ I.D. cylindrical shaft (AR part AR41866), compatible with both gasoline engines and standard diesel engines with a 1″ crankshaft and SAE J609A bolt pattern
• C2 — Unloader family: Gymatic (C2 = Gymatic per AR suffix designation) — Gymatic series internal bypass unloader, brass body, adjustable pressure regulation
• G — Assembly confirmation: Gymatic unloader installed. The XM Series platform can be assembled with either a Mini-Matic or Gymatic unloader depending on the operating pressure and flow requirements. The “G” suffix is AR’s internal assembly designation confirming the Gymatic family was specified and installed during manufacturing. At 3,000 PSI, the Gymatic is the correct unloader choice — its brass body, higher pressure rating, and stable bypass characteristics are matched to the XM Series duty envelope.
• No trailing I suffix — the model terminates at C2G with no “I”, confirming this pump delivers straight high-pressure water output without an integrated downstream chemical injector. Operators requiring built-in chemical feed should select the XMV3G30D-F24C2I.

Why the XM Series Carries Both Mini-Matic and Gymatic Variants — And Why Gymatic Is Correct at 3,000 PSI

The XM Series pump platform is designed with sufficient flexibility to accept both AR unloader families across its operating range. Mini-Matic unloaders are suited to lower-pressure, lower-flow XM applications. At 3,000 PSI and 3.0 GPM, the Gymatic unloader is the correct specification — its brass body, higher pressure rating, wider stable regulation window, and tamper-resistant adjustment characteristics are all matched to the demands of sustained high-pressure commercial operation. The “G” suffix removes any ambiguity from the bill of materials and ensures the correct unloader is installed, confirmed, and documented in the pump’s model designation.

The XMV3G30D-F24C2 Family — Suffix Variants at a Glance

The XMV3G30D-F24 platform is available in multiple suffix configurations sharing the same XM Series pump construction, 1″ keyway crankshaft, F24 flange, and Gymatic unloader family:

• XMV3G30D-F24C2 — Gymatic unloader, no chemical injector (model terminates at C2)
• XMV3G30D-F24C2M — Gymatic unloader, no chemical injector (M suffix, injector-absent designation)
• XMV3G30D-F24C2G — Gymatic unloader confirmed by assembly designation, no chemical injector (G suffix = Gymatic assembly confirmed)
• XMV3G30D-F24C2I — Gymatic unloader with integrated downstream chemical injector active (“I” suffix confirmed)

Key Specifications

XMV3G30D-F24C2G Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,000 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, consistent, high-pressure output
• Crankshaft Bore: 1″ hollow keyway — direct engagement with gas or diesel engine 1″ output shaft
• Manifold Material: Forged brass — dense, pore-free construction for corrosion resistance and sustained 3,000 PSI cycle integrity
• Plungers: Solid ceramic — exceptional hardness, wear resistance, and chemical inertness across extended high-pressure commercial operating hours
• Valves: Stainless steel — precise seating geometry, scale resistance, and reliable performance under continuous 3,000 PSI cycling
• Flange: F24 — SAE J609A direct-drive flange for XM/RRV Series ‘D’ version, 1″ shaft, gas and diesel engine compatible (AR part AR41866)
• Unloader System: Gymatic series (C2 / G confirmed) — brass-body internal bypass unloader, adjustable pressure regulation, rated above 3,000 PSI operating range
• Chemical Injector: Not included — model terminates at C2G with no “I” suffix
• Inlet: Male threaded inlet for standard hose and fitting compatibility
• Warranty: 5-year limited warranty — US-based coverage through AR North America with domestic parts and service support

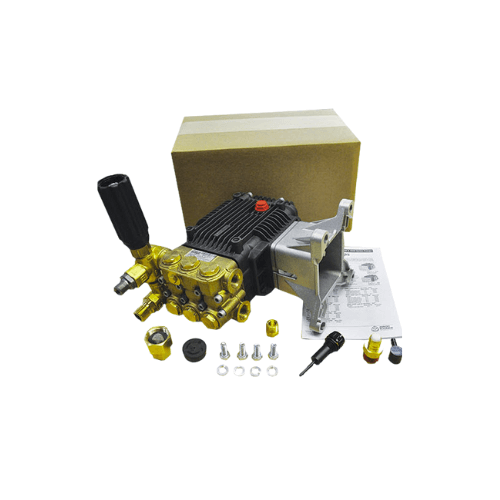

What’s Included in the Box

A Complete, Factory-Configured Assembly Ready for Installation

Every XMV3G30D-F24C2G ships fully assembled and field-ready. No supplemental hardware sourcing, fluid filling, or pre-run preparation is required before installation:

• Factory-installed Gymatic unloader (C2G) — pre-mounted and assembly-confirmed for internal bypass pressure regulation at 3,000 PSI; no downstream injector port on this variant
• AR factory break-in oil — crankcase pre-filled to the correct operating level for first startup without modification
• Vented dipstick — enables fast, accurate crankcase oil level checks while maintaining proper crankcase pressure relief during operation
• Clear oil sight glass — at-a-glance oil level monitoring without removing the dipstick cap
• Male threaded inlet — factory-fitted for straightforward connection to standard supply hoses and fittings without specialized adapters
• Mounting bolts and fasteners — hardware pre-selected and sized for F24 SAE J609A direct-drive flange installation on compatible gas or diesel engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals, winterization protocol, and inlet plumbing guidance
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable pump component for field and shop reference
• Factory test certification — every XMV3G30D-F24C2G load-tested at 50%, 100%, and 150% of rated output before leaving the AR manufacturing facility

The XM Series at 3,000 PSI — Built for Commercial and Industrial High-Pressure Duty

A Distinct Platform From Lower-Pressure AR Pump Series

The XMV3G30D-F24C2G belongs to AR’s XM Series — a distinct pump platform from the XTV and XTA series used in lower-pressure applications. The XM Series is engineered specifically for the structural and thermal demands of sustained 3,000 PSI operation:

• Larger 1″ hollow keyway crankshaft — the increased shaft bore accommodates the higher torque input required at 3,000 PSI, providing a more robust drivetrain connection than the 3/4″ bores used on lower-pressure XTV platforms
• F24 SAE J609A flange — the larger flange format matches the 1″ shaft bore and is rated for the elevated torque loads generated by gas and diesel engines driving a pump at 3,000 PSI continuous duty
• Forged brass manifold — at 3,000 PSI, manifold structural integrity under cyclic pressure loading is critical. Forged brass provides the density and corrosion resistance required to sustain thousands of pressure cycles per hour without the micro-porosity and degradation that limit cast aluminum at elevated pressures
• Solid ceramic plungers — hardness and dimensional stability are increasingly critical at higher pressures where seal contact forces are greater and abrasive wear accumulates faster. Ceramic plungers maintain precision geometry across extended 3,000 PSI operating hours beyond what stainless alternatives can sustain
• Stainless steel valves — valve seating forces at 3,000 PSI are substantially higher than at lower operating pressures. Stainless steel geometry resists the deformation and scale-induced pitting that cause premature leakage at the upper end of the commercial pressure range

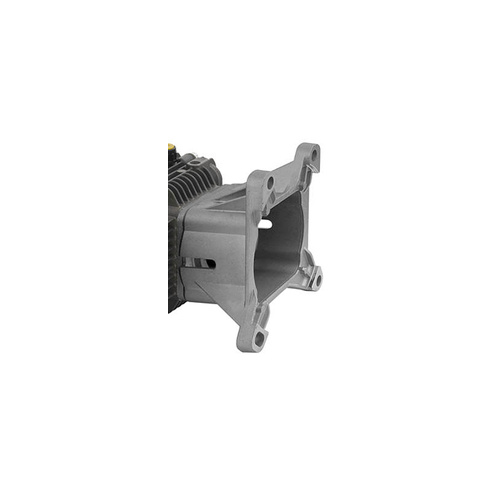

F24 SAE J609A — Direct Drive for Gas and Diesel Engines

One Flange Standard. Gasoline or Diesel. No Adapter Required.

The F24 flange on the XMV3G30D-F24C2G is AR’s SAE J609A direct-drive interface for XM Series ‘D’ version pumps, engineered for 1″ shaft close-coupling to both gasoline and diesel power sources:

• Gasoline engine compatibility — direct bolt-up to commercial gas engines with a 1″ cylindrical output shaft and SAE J609A bolt pattern, common across Honda GX, Kohler Command, Briggs and Stratton Vanguard, and comparable platforms in the horsepower range appropriate for 3,000 PSI pump loads
• Diesel engine compatibility — the F24 SAE J609A standard is equally compatible with standard diesel engines equipped with a 1″ crankshaft, making the XMV3G30D-F24C2G a natural specification for diesel-powered contractor rigs, agricultural equipment, and municipal service vehicles where diesel is the operational fuel standard
• Direct close-coupling — the pump mounts face-to-face against the engine with the 1″ hollow keyway crankshaft bore engaging the engine shaft directly, eliminating belt guards, pulleys, and tensioning hardware
• Compact installation envelope — direct coupling reduces overall skid and trailer frame dimensions for portable contractor rigs and trailer-mounted wash systems
• Included mounting hardware — bolts and fasteners sized for the F24 SAE J609A bolt pattern are supplied in the box

The Gymatic Unloader — Tamper-Resistant 3,000 PSI Pressure Control

Set It. Lock It. Trust It at Full Commercial Pressure.

The Gymatic unloader (C2G) on the XMV3G30D-F24C2G is rated above the pump’s 3,000 PSI operating pressure — within AR’s accepted 15% upside variance for unloader pairings. At 3,000 PSI, unloader stability and tamper resistance are operational safety and surface-protection requirements. The Gymatic’s adjustable-then-lockable design delivers:

• Adjustable pressure regulation — operating pressure is set on-site to match the specific cleaning application, nozzle size, and surface type before the adjustment is locked
• Tamper-resistant once set — once locked, the Gymatic holds configured pressure consistently across every operator and every job cycle, preventing crew-induced over-pressure events on contractor rigs and rental fleet equipment at 3,000 PSI
• Internal bypass operation — trigger-off bypass smoothly redirects flow through the bypass circuit, preventing deadhead pressure spikes that accelerate seal and valve wear during idle intervals on production wash jobs
• No downstream injector port — this configuration delivers straight high-pressure water output. Operators requiring integrated chemical feed should select the XMV3G30D-F24C2I
• Engine load reduction in bypass — reduced system back-pressure in bypass mode lowers engine load, reducing fuel consumption and heat accumulation during idle intervals on full-day wash operations
• Brass body construction — resists corrosion from cleaning chemicals, chlorinated water, and sustained field exposure at 3,000 PSI operating conditions

Material Construction for High-Pressure Commercial Service

Every Component Specified for Sustained 3,000 PSI Operation — Built to Be Rebuilt

The XMV3G30D-F24C2G’s internal material specification reflects the demands of sustained high-pressure operation, and every wear component is individually serviceable through AR North America’s domestic parts network:

• Solid ceramic plungers resist the elevated seal contact forces and higher-velocity water flow at 3,000 PSI. Their hardness and dimensional stability far exceed stainless alternatives at this pressure level. When plungers eventually approach service limits they are replaced individually — all other components remain in service.
• Forged brass manifold provides a dense, pore-free pressure vessel that withstands cyclic mechanical stress, thermal variance from gas and diesel engine environments, and chemical exposure of daily 3,000 PSI commercial duty without the structural degradation that limits cast aluminum under sustained high-pressure conditions.
• Stainless steel valves maintain precise seating geometry through hundreds of thousands of 3,000 PSI pressure cycles, resisting calcium scale accumulation and pitting that cause pressure loss and valve chatter at elevated operating pressures.
• Triplex three-plunger design produces smooth, overlapping pressure pulses that reduce pulsation-induced fatigue stress on hoses, spray guns, and fittings throughout the system — particularly important at 3,000 PSI where pulsation loads on downstream components are substantially higher than at lower operating pressures.

Typical Applications

Where the XMV3G30D-F24C2G Delivers Best Results

• Professional pressure washing contractors — concrete cleaning, surface restoration, building exterior washing, and graffiti removal requiring sustained 3,000 PSI output from portable engine-driven equipment
• Fleet and heavy vehicle washing — trucks, semi-trailers, buses, construction equipment, and service vehicles where high-pressure output efficiently removes road film, grease, and heavy contamination
• Construction equipment cleaning — excavators, loaders, bulldozers, and heavy machinery where 3,000 PSI removes caked soil, cement residue, and heavy grease from complex surfaces
• Agricultural operations — tractors, combines, barns, and facility washdowns on diesel-powered rigs where high-pressure output handles heavy organic contamination in field environments
• Municipal and government services — utility truck fleets, public works equipment, and infrastructure cleaning rigs where diesel engine compatibility and straight high-pressure water output are the primary operational requirements
• Industrial facility exterior maintenance — warehouse exteriors, loading docks, equipment yards, and production area surfaces requiring sustained 3,000 PSI cleaning from portable engine-driven equipment
• Rental equipment fleets serving commercial accounts — contractor-grade rental units where 3,000 PSI output, Gymatic-confirmed tamper-resistant pressure setting, and XM Series durability support high-utilization commercial rental cycles with minimal service intervention

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

Domestic Support Built to Last as Long as the Pump

The XMV3G30D-F24C2G is protected by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based warranty and service network. Every internal wear component — ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Gymatic unloader service parts, and crankcase bearings — is stocked domestically through AR’s authorized distribution channels.

With consistent maintenance — break-in oil change at 50 hours, scheduled oil changes every 500 hours or 3–5 months, regular valve and seal inspection at the service frequency appropriate for 3,000 PSI duty cycles, and proper winterization using RV-grade environmentally safe antifreeze — the XMV3G30D-F24C2G is engineered for 10 or more years of productive high-pressure commercial service life. AR North America’s domestic parts depth ensures rebuild kits, plunger sets, and Gymatic unloader service components are typically available same-week, keeping contractor rigs and fleet wash operations running rather than waiting on international shipping timelines.

Contractors, rental fleet operators, municipal purchasing departments, resellers, and volume buyers are invited to contact wholesale@wshpwr.com for wholesale and special pricing on the XMV3G30D-F24C2G and the full Annovi Reverberi pump and unloader assembly line. WSHPWR stocks more than 1,900 AR North America products — one of the most complete AR inventories available through any US web store.

3,000 PSI. Gymatic-Confirmed. Gas or Diesel. Built for Professional Operations.

Italian Engineering. SAE J609A Dual-Fuel Simplicity. US Warranty Coverage.

For contractors, fleet operators, agricultural teams, and municipal services who need a high-pressure engine-driven triplex pump with gas and diesel engine compatibility, Gymatic-confirmed tamper-resistant 3,000 PSI pressure control, and a fully rebuildable XM Series platform from one of the global pressure pump industry’s most trusted manufacturers — the XMV3G30D-F24C2G delivers. Three thousand PSI. Direct drive. One-inch keyway shaft. Gymatic bypass control confirmed. Five years of US warranty. A decade of service life.
