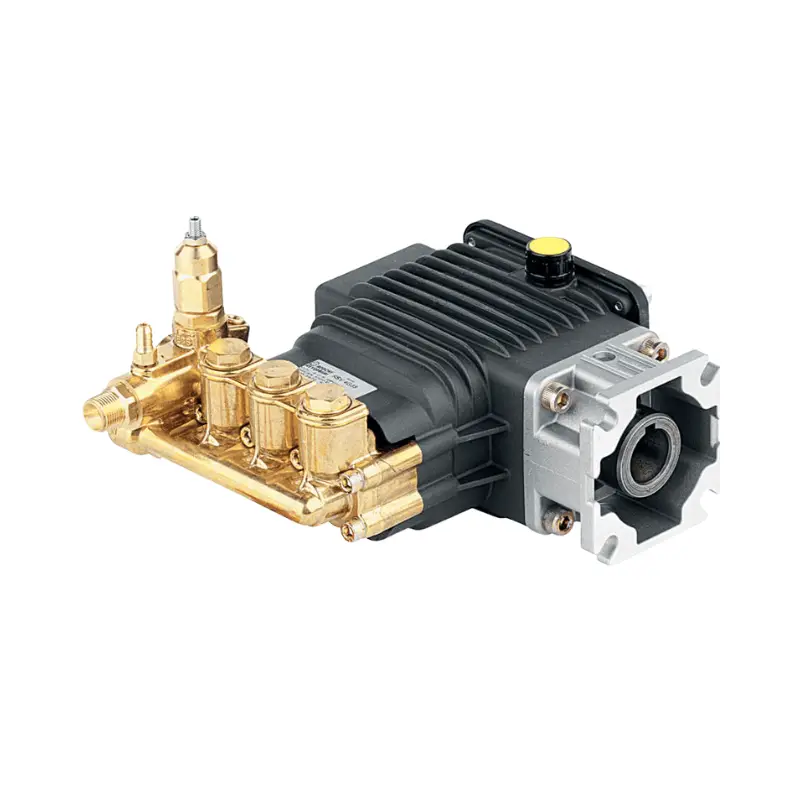

RSV3G30D-F25EZ 3.0 GPM 3200 PSI | EZ Start Washer Pump

RSV3G30D-F25EZ by Annovi Reverberi — RSV Series Triplex Plunger Pump with Integrated Unloader | 3.0 GPM | 3,200 PSI | Forged Brass Manifold | Bronze Connecting Rods | Easy Start | Fixed 12% Injector | 9,600 Cleaning Units

The RSV3G30D-F25EZ by Annovi Reverberi is an RSV Series triplex plunger pump with integrated unloader delivering 3.0 GPM at 3,200 PSI — engineered for direct gas engine coupling via the F25 3/4″ Shaft interface. Rated at 3.0 GPM and 3,200 PSI, the RSV3G30D-F25EZ delivers 9,600 cleaning units — through a forged brass manifold, solid ceramic plungers, bronze connecting rods, stainless steel valves, an integrated adjustable unloader, and a fixed 12% chemical injector in one factory-assembled pump body. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RSV3G30D-F25EZ is the complete integrated triplex pump solution for gas engine-powered pressure washing at 3,200 PSI.

Easy Start — Zero Back Pressure at Every Startup

Bypass Opens at Engine Start. Engine Engages Freely. System Builds to Rated Pressure at Operating Speed.

The Easy Start feature on the RSV3G30D-F25EZ opens the bypass circuit at engine startup. The engine starts against zero hydraulic back pressure — no resistance from a pressurized pump on every pull. Once the engine reaches operating speed the bypass closes and the system builds to rated pressure. On machines that start dozens of times per shift, especially in cold weather, Easy Start removes hydraulic resistance from every single startup — reducing recoil starter wear and pull-cord effort every time.

Fixed 12% Chemical Injector — Integrated. Detergent Hose and Filter Sold Separately.

Injector Ready. Complete the System with the DETHOSE-FIL6X.

The RSV3G30D-F25EZ ships with a fixed 12% chemical injector integrated directly into the pump body. The injector automatically draws detergent when the downstream nozzle creates the correct pressure differential — no separate injector tee, no compatibility guesswork. What is not included: the detergent hose and filter. To complete the chemical delivery system, the DETHOSE-FIL6X 6ft Detergent Hose with Red Filter is the correct accessory — a 6-foot red chemical suction hose with inline filter sized for the RSV3G30D-F25EZ injector port. Keeps particulate out of the injector, extends injector service life, and gives the operator reach from a stationary detergent container on contractor rigs and wash stations.

Engine Compatibility — What Drives the RSV3G30D-F25EZ

F25 SAE J609a. 3/4″ Hollow Shaft. 6.2 EBHP Minimum. Direct Bolt-On to Common Small-Frame Gas Engines.

Easy Start opens the bypass circuit at startup — the engine engages freely and builds to pressure at operating speed.

• Harbor Freight Predator 224cc / 6.6 HP Max Performance — the preferred Predator pairing. 3/4″ keyway shaft. Direct replacement for Honda GX200 and Briggs & Stratton XR950.
• Harbor Freight Predator 212cc / 6.5 HP — 3/4″ keyway shaft. Compatible for residential and contractor builds.
• Honda GX200 / 5.5 HP — 196cc, 3/4″ keyway shaft. Direct-mount compatible with the RSV3G30D-F25EZ F25 flange.
• Briggs & Stratton XR950 — 3/4″ keyway shaft. Compatible for residential builds.
• Kohler CH270 / Command series — 3/4″ keyway shaft. Compatible for applicable small-frame configurations.

Key Specifications

RSV3G30D-F25EZ Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,200 PSI (221 bar)
• Cleaning Units: 9,600 (GPM x PSI)
• Operating Speed: 3,400 RPM
• Power Required: 6.2 EBHP minimum
• Pump Type: RSV Series triplex plunger pump — integrated unloader, fully rebuildable

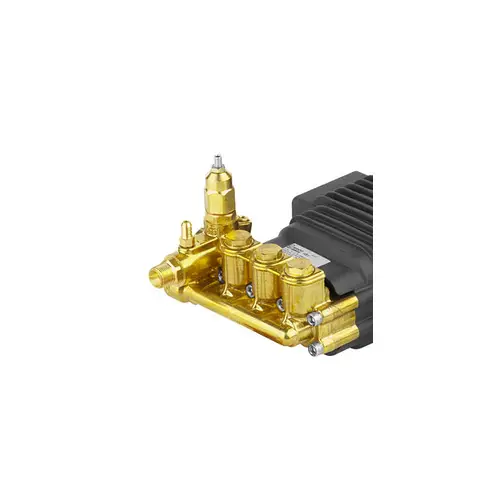

• Manifold: Forged brass
• Plungers: Solid ceramic
• Connecting Rods: Bronze
• Valves: Stainless steel inlet and discharge

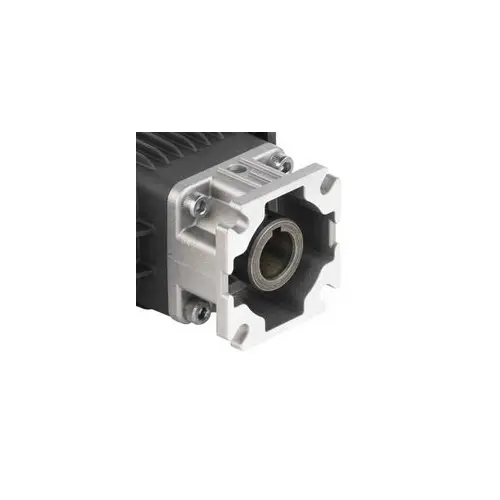

• Shaft/Flange: 3/4″ hollow keyway shaft — F25 SAE J609a — direct drive 5-7 HP gasoline engine
• Bore Diameter: 15mm / Stroke: 7.6mm
• Oil Capacity: 16 oz
• Max Temperature: 140 degrees F
• Weight: 14 lbs
• Easy Start: EZ included — bypass opens at startup; engine starts freely, builds to pressure at operating speed
• Integrated Unloader: Adjustable — set working pressure to match nozzle selection and application requirements
• Chemical Injector: Fixed 12% — integrated into pump body; detergent hose and filter sold separately
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Typical Applications

Where the RSV3G30D-F25EZ Delivers Best Results

• Contractor pressure washing — surface prep, equipment washdown, and property maintenance — 3.0 GPM / 3,200 PSI RSV triplex output with integrated unloader for professional cleaning programs
• OEM equipment builds and replacements — the RSV3G30D-F25EZ integrated pump-and-unloader format simplifies OEM design and field replacement with AR North America nationally stocked parts
• Fleet wash systems and facility cleaning — 9,600 cleaning units with integrated pressure regulation for consistent output across daily fleet washing and facility maintenance programs
• Complete the chemical delivery system — the RSV3G30D-F25EZ 12% injector is ready. Add the DETHOSE-FIL6X 6ft detergent hose with filter to complete downstream chemical delivery.

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

RSV3G30D-F25EZ — RSV Triplex Platform. Integrated Unloader. Backed for Five Years.

The RSV3G30D-F25EZ is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — forged brass manifold seals, solid ceramic plungers, bronze connecting rod assemblies, stainless valve seats, integrated unloader service parts, and packing kits — is stocked nationally through authorized AR North America distribution channels. Contractors, OEM builders, fleet operators, agricultural operations, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RSV3G30D-F25EZ and the complete WSHPWR pump package lineup.

9,600 Cleaning Units. 3,200 PSI. 3.0 GPM. Forged Brass. Bronze Rods. Integrated Unloader. Fixed 12% Injector. Easy Start. F25 3/4″ Shaft. 5-Year US Warranty.

Annovi Reverberi RSV Series. Triplex Plunger. Integrated Unloader. Fully Rebuildable. Nationwide Service.

The RSV3G30D-F25EZ is the complete RSV Series integrated triplex plunger solution for gas engine-powered pressure washing at 3,200 PSI. Forged brass manifold. Bronze connecting rods. Ceramic plungers. Integrated adjustable unloader. Fixed 12% chemical injector. Easy Start on every startup. Five-year US warranty. Nationwide AR North America service centers. Fully rebuildable. Complete the chemical delivery system with the DETHOSE-FIL6X detergent hose and filter.

Volume buyers can reach the WSHPWR wholesale team at wholesale@wshpwr.com.
