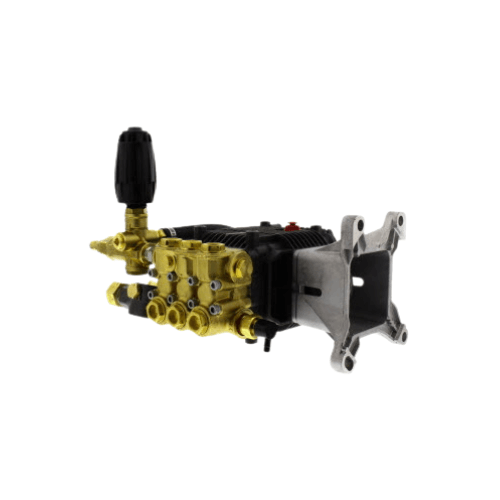

RRV4G40D-VRT3 4.0 GPM 4000 PSI Pump | VRT3 Unloader Valve

RRV4G40D-VRT3 | 4 GPM 4000 PSI Gas Engine Pump with VRT3 Unloader, 1 in. Hollow Shaft

The RRV4G40D-VRT3 is an Annovi Reverberi RRV triplex plunger pump rated 4.0 GPM at 4,000 PSI at 3400 RPM, with a VRT3-310 unloader already installed. It slides onto a 1 in. engine shaft and bolts to the engine face, so a 4,000 PSI gas machine is back in service with one part.

The VRT3-310 is rated to 4,500 PSI and 10.5 GPM, well above this pump, so it regulates smoothly at full pressure. Its external bypass sends bypass water out of the pump instead of recirculating it inside, which keeps the pump cooler when the trigger is closed.

What’s in the Box

• RRV4G40D-VRT3 pump with F24 engine flange and nickel-plated head
• VRT3-310 unloader, installed
• Crankcase oil, pre-filled at the factory
• Vented dipstick. The pump ships with a shipping plug in the oil port. Swap in the dipstick before the first start.
• Engine mounting bolts and lock washers
• Operation manual and parts schematic
• 5-year Annovi Reverberi warranty

The shaft key is not included. It comes with your engine, and its size is set by the engine maker.

Will It Fit My Machine?

• Shaft: your engine has a 1 in. keyed horizontal shaft.
• Mount: the engine face matches the F24 flange bolt pattern.
• Engine size: 420cc or larger (15 HP class). Full 4,000 PSI takes a strong engine.
• Bypass line: run the VRT3 bypass port back to the tank or pump inlet.
• Hose and accessories: every hose, fitting and nozzle must be rated for 4,000 PSI.

Not sure? Text a pump specialist at (505) 226-6061 with a photo of your engine tag and we’ll confirm the fit.

What Else You’ll Need

• Thermal relief valves and inlet filters: the thermal valve protects the pump during long bypass periods, and the filter keeps debris out of the valves.

RRV4G40D-VRT3 Specifications

• Model: RRV4G40D-VRT3
• Flow: 4.0 GPM
• Max Pressure: 4,000 PSI
• Speed: 3400 RPM (engine speed)
• Gas Engine Size: 420cc or larger
• Shaft: 1 in. hollow
• Mount: F24 engine flange
• Head: Nickel-plated
• Unloader: VRT3-310, installed, external bypass
• Plungers: Ceramic
• Max Water Temperature: 140°F
• Weight: 18 lbs
• Warranty: 5 years
• Brand: Annovi Reverberi

Shipping: Usually ships via UPS in 1 to 3 days.
