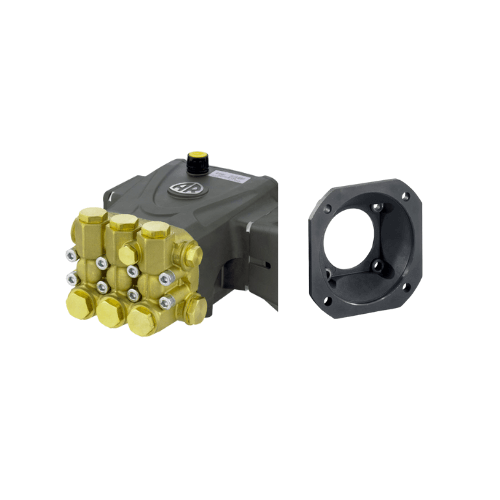

RRV4G40D-F16 4.0 GPM 4000 PSI | 3400 RPM F16 gas-engine pump

Overview

• The Annovi Reverberi RRV4G40D-F16 Triplex Plunger Pump is a commercial-grade, continuous-duty pump engineered to deliver maximum performance and reliability in demanding applications.
• Combining 4.0 GPM flow at 4000 PSI with a 3400 RPM high-speed drive, it provides powerful output for tough cleaning jobs in fleet maintenance, construction, and industrial wash bays.
• With its F16 flange mount for direct coupling, heavy-duty internal components, and precision design, the RRV4G40D-F16 is a trusted solution for contractors, industrial facilities, and professional cleaning operations.

Key Specifications

• Model: RRV4G40D-F16
• Flow Rate: 4.0 GPM (gallons per minute)
• Maximum Pressure: 4000 PSI
• Operating Speed: 3400 RPM
• Pump Type: Triplex ceramic plunger pump
• Mounting Flange: F16, compatible with multiple drive systems for direct coupling
• Duty Rating: Commercial-grade, continuous-duty operation
• Warranty: 5-year limited warranty with nationwide service support

What’s Included

• Factory break-in oil pre-filled in the crankcase for immediate operation
• Vented dipstick for easy crankcase ventilation and oil checks
• Oil sight glass for quick visual monitoring of oil level and condition
• Mounting bolts for straightforward F16 flange installation
• Operator’s manual with complete parts breakdown and service schematic
• Secure packaging to ensure safe, damage-free shipping and delivery

How the RRV4G40D-F16 Works

• A triplex plunger design uses three ceramic plungers driven by a crankshaft to generate steady, high-pressure water flow with minimal pulsation for smoother operation.
• Operating at 3400 RPM, the pump is optimized for high-speed, continuous-duty performance, ideal for large-scale or time-sensitive cleaning tasks.
• The F16 flange mount allows direct coupling to compatible engines and drive systems, simplifying installation and ensuring secure, low-vibration operation.
• Premium materials—such as a forged brass manifold, ceramic plungers, and stainless-steel check valves—are used throughout to withstand harsh working conditions and extend service life.

Premium Features

• Forged Brass Manifold: Corrosion-resistant design for maximum strength and long service life under continuous high pressure.
• Solid Ceramic Plungers: Deliver excellent wear resistance and help maximize seal longevity in demanding applications.
• Stainless Steel Valves: Provide precise operation, reliable sealing, and high hydraulic efficiency.
• Bronze Connecting Rods & Heat-Treated Crankshaft: Ensure smooth, balanced power transfer and durability during extended use.
• Continuous-Duty Rating: Built for contractors, rental fleets, and industrial facilities that run equipment for long intervals.
• Easy Oil Maintenance: Sight glass and vented dipstick simplify oil level inspections and routine service.

Benefits of the RRV4G40D-F16 Pump

• Powerful Output: 4.0 GPM at 4000 PSI delivers the performance needed for aggressive cleaning of industrial machinery, heavy equipment, and fleet vehicles.
• High-Speed Productivity: 3400 RPM capability supports fast-paced work environments where reduced cleaning time and minimal downtime are critical.
• Rugged Construction: Engineered with premium metals and precision components to withstand demanding daily use.
• Versatile Integration: F16 flange and commercial design suit custom wash rigs, OEM builds, and replacement in existing high-pressure systems.
• Long-Term Value: Backed by a 5-year limited warranty and Annovi Reverberi’s nationwide service network for parts and support.

Typical Applications

• Fleet Washing: High-pressure cleaning for buses, trucks, delivery vans, and transportation fleets.
• Heavy Equipment Cleaning: Removes mud, grease, and caked-on debris from bulldozers, loaders, excavators, and tractors.
• Construction Site Washdown: Keeps job sites, forms, and equipment clean for safer, more efficient operations.
• Agricultural Maintenance: Ideal for washing farm machinery, trailers, implements, and outdoor equipment.
• Industrial Wash Bays: Provides consistent power for continuous-duty cleaning in factories, warehouses, and maintenance facilities.
• Municipal Services: Supports public works cleaning tasks including service bays, street equipment, and infrastructure.

Summary

• The Annovi Reverberi RRV4G40D-F16 Triplex Plunger Pump delivers 4.0 GPM at 4000 PSI with a 3400 RPM high-speed drive, making it an excellent choice for professionals who demand power, consistency, and durability.
• Its triplex plunger system, F16 direct-coupled flange mount, forged brass manifold, and ceramic plungers provide efficient, reliable performance in heavy-duty cleaning applications.
• With factory break-in oil, easy oil monitoring, and a 5-year limited warranty backed by a nationwide service network, the RRV4G40D-F16 offers long-term value and peace of mind for contractors, fleet managers, and industrial users.
