RKA4037NL 4.0 GPM 3700 PSI | Belt-Drive Triplex Pump

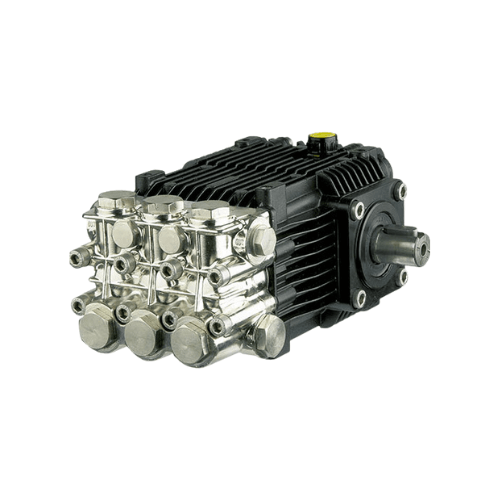

Annovi Reverberi RKA4037NL Triplex Pump | 4.0 GPM 3700 PSI 24mm Long Shaft 1750 RPM

RKA4037NL — the Annovi Reverberi RKA Series commercial triplex plunger pump delivering 4.0 GPM at 3,700 PSI at a controlled 1,750 RPM on a 24mm solid keyed shaft — engineered for belt-drive pressure washer systems, OEM replacement applications, wash bays, contractor cleaning rigs, and light industrial cleaning stations where 4.0 GPM at 3,700 PSI from a slow-speed commercial triplex platform delivers the combination of flow, pressure, and service life that daily professional use demands. The RKA4037NL carries the “L” suffix designation — a 45mm extended shaft length versus the standard 30mm shaft on the RKA4G40HN, providing the additional engagement depth that belt-drive pulley systems and specific OEM replacement applications require for secure, correctly aligned coupling. At the heart of every RKA4037NL is Annovi Reverberi’s dual redundant packing system — the forged brass head double gasket sealing architecture standard across the AR commercial triplex pump families, deploying primary and secondary packing stages so that early seal wear produces a telltale weep warning rather than sudden pressure loss or crankcase contamination. Backed by a 5-year commercial warranty with AR North America’s nationwide U.S.-based service centers and domestic WSHPWR fulfillment.

RKA4037NL Key Specifications

Performance, Drive & Commercial Construction — Confirmed AR Catalog

• Model: Annovi Reverberi RKA4037NL
• Classification: Commercial
• Flow Rate: 4.0 GPM (15.1 L/min)
• Maximum Pressure: 3,700 PSI (255 Bar)
• EBHP: 11.0
• Operating Speed: 1,750 RPM — slow-speed design for reduced heat, vibration, and component wear
• Bore: 18 mm | Stroke: 12 mm | CSID Stamp: 4
• Shaft: 24mm solid keyed — N version; 45mm extended shaft length (standard is 30mm); designed for belt-drive pulley systems and OEM replacement applications requiring extended shaft engagement
• Weight: 20 lbs
• Packing System: Dual redundant — primary and secondary stages with telltale port early warning of primary packing wear
• Manifold: Forged brass head
• Connecting Rods: Bronze — superior fatigue strength and oil-bath corrosion resistance versus aluminum alternatives at 1,750 RPM commercial duty cycles
• Plungers: Ceramic — thick-wall construction for thermal shock resistance and extended packing seal life
• Valves: Stainless steel — consistent sealing and maintenance plug access for field serviceability
• Bearings: Oversized tapered roller — maximum life and load disbursement at 1,750 RPM with belt-drive side loading
• Crankcase: Die-cast aluminum, oil-bath lubrication
• Inlet: 1/2-inch female | Discharge: 3/8-inch female
• Max Water Temperature: 140°F
• Oil Capacity: 15 oz
• Warranty: 5-year commercial — U.S.-based service centers, domestic WSHPWR fulfillment

Standard RKA Series Package

Every RKA4037NL Ships Complete — Nothing Extra to Source

Every RKA Series pump ships with the same standard factory package: break-in oil pre-filled in the crankcase, vented dipstick for pressure control and oil level access, oil sight glass for at-a-glance level checks before each operating session, operator’s manual with parts schematic for installation reference and repair kit identification, and 5-year commercial warranty documentation backed by AR North America’s nationwide U.S. service center network and domestic WSHPWR fulfillment.

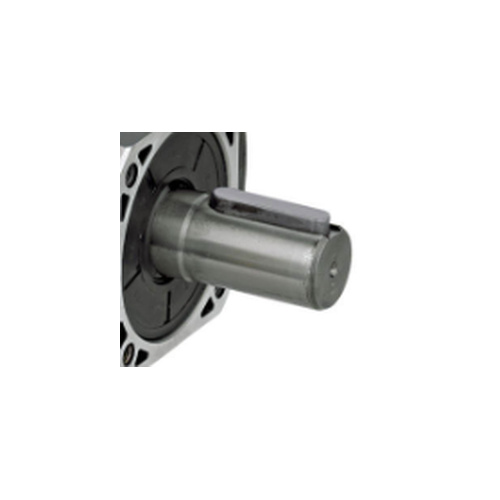

What the “L” Suffix Means — 45mm Extended Shaft for Belt-Drive and OEM Applications

RKA4037NL vs. RKA4G40HN — Extended Shaft vs. Standard 30mm

The RKA4037NL and the standard RKA4G40HN share the same commercial triplex platform, 24mm solid keyed shaft, 1,750 RPM operating speed, and bronze connecting rod specification. The single physical difference is the shaft length — and that difference determines which applications each pump is correct for.

The “L” suffix designates a 45mm shaft length — 15mm longer than the 30mm standard shaft on the RKA4G40HN. That additional shaft length provides the engagement depth that belt-drive pulley systems require for secure pulley seating and correct alignment. On belt-drive pressure washer systems — where a driven pulley on the pump shaft receives power from a drive pulley on the engine or motor via a V-belt — the extended shaft ensures the pulley sits fully engaged on the keyed shaft with adequate retention margin for the side loading that belt tension generates.

For OEM replacement applications on Mi-T-M, Alkota, and similar commercial belt-drive pressure washer platforms that originally specified an extended shaft pump, the RKA4037NL is the correct replacement specification. Buyers should confirm shaft length requirements before substituting the standard 30mm shaft RKA4G40HN, as insufficient shaft engagement under belt-drive side loading accelerates shaft wear and bearing fatigue.

The AR Dual Redundant Packing System

RKA4037NL — 60 Years of Longevity Engineering Standard on Every Unit

The dual redundant packing system is standard on every pump across the AR commercial triplex plunger families. In a standard single-packing design, one seal ring contains working pressure at every plunger stroke — when it wears, pressure bypasses immediately, water contaminates the crankcase oil, and bearings accelerate toward failure without warning. The AR dual redundant system places primary and secondary packing stages in series. When the primary stage nears end of service life, the secondary maintains pressure containment while a minor weep at the telltale port alerts the operator. That early warning converts an unexpected breakdown into a planned maintenance event — the accumulated result of over 60 years of Annovi Reverberi commercial pump engineering since 1958, and the confidence behind the 5-year warranty on every RKA4037NL.

Bronze Connecting Rods at 1,750 RPM — The Commercial Specification

Why Bronze Matters in the RKA4037NL at This Duty Point

The RKA4037NL carries bronze connecting rods — confirmed from the AR catalog. At 1,750 RPM and 3,700 PSI, the connecting rod experiences combined tensile, compressive, and bending loads continuously across commercial operating shifts. Bronze outperforms aluminum in this application across three properties: higher fatigue strength under repeated loading cycles, superior corrosion resistance in the oil-bath crankcase environment, and better bearing compatibility at the crank journal interface.

For belt-drive wash bays, contractor cleaning rigs, and OEM pressure washer platforms running the RKA4037NL through regular daily cycles, the bronze rod specification adds meaningful service life versus aluminum rod alternatives at equivalent duty — the internal specification that makes the RKA Series the correct commercial choice over lighter-duty pump platforms at similar price points.

RKA4037NL Key Benefits

Extended Shaft, Bronze Rods, Dual Packing — Commercial Performance Built In

• 45mm extended shaft for belt-drive and OEM applications: the correct shaft length for belt-drive pulley systems and OEM replacement applications where standard 30mm shaft pumps do not provide full pulley engagement under belt tension side loading
• Dual redundant packing — planned maintenance instead of breakdowns: primary and secondary stages with telltale port warning; standard on every RKA Series pump since 1958
• 4.0 GPM at 3,700 PSI commercial output: effective cleaning force for vehicle and equipment washing, surface preparation, and wash bay daily use at a flow rate appropriate for single-gun systems and small multi-station configurations
• Bronze connecting rods for commercial duty cycles: superior fatigue strength and oil-bath corrosion resistance versus aluminum alternatives — the internal specification that distinguishes commercial-grade from light-duty pump construction
• 1,750 RPM slow-speed extends every wear interval: reduced heat, valve cycling, and packing fatigue versus 3,400 RPM direct-drive alternatives — service life advantages that compound across a full operating season
• Oversized tapered roller bearings for belt-drive loads: engineered for the radial side loading that belt-drive pulley systems impose on the shaft — a specific bearing requirement that standard ball bearings do not meet as effectively under sustained belt tension
• Forged brass manifold and field-serviceable valves: maintenance plug access for AR repair kit replacement — rebuilt at wear intervals, not discarded

RKA4037NL Typical Applications

Where 4.0 GPM at 3,700 PSI on a 45mm Extended Shaft Delivers Results

• Belt-drive pressure washer systems: the RKA4037NL’s 45mm extended shaft and oversized tapered roller bearings are the correct specification for belt-drive configurations where pulley side loading and shaft engagement depth both matter for reliable long-term operation
• OEM belt-drive replacement: Mi-T-M, Alkota, and similar commercial belt-drive platform replacements where the original OEM specification required an extended shaft pump — confirm shaft length requirements before specifying the standard shaft alternative
• Single-gun and small wash bays: vehicle and equipment washing where 4.0 GPM at 3,700 PSI provides strong commercial cleaning output within the drain capacity and water recovery infrastructure of typical single-station wash bay installations
• Contractor cleaning rigs: moderate-duty commercial cleaning work where the RKA4037NL’s dual redundant packing and bronze rod construction deliver predictable maintenance intervals across regular operating schedules
• Property and facility maintenance: driveways, walkways, decks, siding, and equipment cleaning where controlled 4.0 GPM at 3,700 PSI covers the full range of professional property maintenance tasks from a belt-drive electric motor system
• Light industrial wash stations: forklifts, pallet jacks, small loaders, and material handling equipment where the RKA4037NL’s slow-speed design and bronze rod specification sustain daily wash station operation across commercial seasonal schedules

RKA4037NL Installation & Maintenance

Belt-Drive Specific Best Practices for Long Service Life

• Confirm belt-drive pulley compatibility with 45mm shaft: verify the replacement pulley engages the full 45mm shaft length with correct key engagement — the extended shaft is the reason to specify the RKA4037NL over the standard RKA4G40HN
• Set belt tension correctly: over-tensioned belts impose excessive side loading on the 24mm shaft and oversized tapered roller bearings — follow belt manufacturer tension specifications for the pulley diameter and belt type used
• Confirm drive delivers 1,750 RPM at the pump shaft under load: overspeed accelerates dual packing and plunger wear; underspeed reduces pressure below 3,700 PSI
• Monitor telltale port: minor weep = primary packing wear; secondary is holding pressure — schedule AR repair kit replacement before secondary failure occurs
• Install upstream inlet strainer: 50-mesh minimum — clean inlet water protects both packing stages and ceramic plungers from abrasive contamination
• Size unloader for 4.0 GPM and 3,700 PSI: all downstream components including unloader, hoses, and guns must be rated for 3,700 PSI service
• Never run dry: confirm water flow before starting — dry operation damages both packing stages and plungers immediately and voids warranty
• First oil change at 50 hours: then per AR duty-cycle schedule; flush manifold with clean water after every chemical application
• Winterize: pump RV antifreeze through or fully drain before freezing temperatures — freeze damage voids warranty

Why Choose the Annovi Reverberi RKA4037NL

Extended Shaft, Bronze Rods, and 60 Years of AR Engineering

The RKA4037NL is the correct specification when the application requires the 45mm extended shaft that belt-drive pulley systems and specific OEM replacement platforms demand — 4.0 GPM at 3,700 PSI from a slow-speed 1,750 RPM commercial triplex platform with dual redundant packing, bronze connecting rods, oversized tapered roller bearings, and forged brass manifold, backed by over 60 years of Annovi Reverberi engineering since 1958, a 5-year commercial warranty, and AR North America’s nationwide U.S. service infrastructure. Contact WSHPWR for current pricing, availability, belt-drive pulley compatibility guidance, and repair kit specification.
