RKV35G30ADF24C2 | 3.5 GPM 3000 PSI Triplex Pump Unloader Installed

RKV35G30ADF24C2 by Annovi Reverberi — RK Series Triplex Plunger Pump with Gymatic Unloader | 3.5 GPM | 3,000 PSI | Internal Recirculation | Banjo Bolt Connections | 1″ Hollow Keyway Shaft | SAE J609A Gas and Diesel Engine Drive | No Chemical Injector

The RKV35G30ADF24C2 by Annovi Reverberi is a commercial-grade RK Series triplex ceramic plunger pump engineered for direct gas and diesel engine-driven pressure washing systems requiring 3.5 GPM at 3,000 PSI with Gymatic bypass pressure regulation and straight high-pressure water delivery. Rated at 3.5 GPM and 3,000 PSI, the RKV35G30ADF24C2 delivers 10,500 cleaning units — balancing 3.5 GPM coverage speed with 3,000 PSI impact for efficient cleaning of concrete, siding, vehicles, machinery, and large outdoor surfaces — through a reinforced pump housing with precision-machined internal passages, an F24 SAE J609A direct-drive flange for compact belt-free coupling to gasoline or diesel engines, and a factory-installed adjustable bypass unloader with internal recirculation and banjo bolt connections.

The RKV35G30ADF24C2 is particularly well suited for operators who need dependable performance without stepping up to heavier high-PSI industrial platforms — an excellent balance of power, efficiency, and long service life for contractors, fleet operators, and facility maintenance teams who depend on consistent results daily. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated AR North America technical support — this pump arrives pre-filled with AR break-in oil, factory-tested, and ready for immediate installation. Protected by a 5-year US limited warranty through AR North America and built to be fully rebuilt rather than replaced, the RKV35G30ADF24C2 is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RKV35G30ADF24C2 Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RKV35G30ADF24C2 ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched C2 for 3,000 PSI — the Gymatic adjustable bypass unloader with internal recirculation is factory-calibrated for this pump’s 3.5 GPM / 3,000 PSI operating point, ensuring predictable pressure behavior and stable bypass response from first startup.
• Factory-approved configuration — the complete assembly is AR North America’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RKV35G30ADF24C2 exits the AR manufacturing facility with the unloader mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses using the supplied banjo bolts and O-rings, add fuel, and start. Ready from day one.

Decoding the RKV35G30ADF24C2 Model Number

What Every Segment of This AR Pump Designation Tells You

• RKV — Pump series: RK Series triplex plunger pump — AR’s commercial industrial pump platform
• 30 — Maximum pressure: 3,000 PSI — 3.5 × 3,000 = 10,500 cleaning units
• D — Shaft version: Direct Gas/Diesel Drive — 1″ hollow keyway crankshaft bore for direct coupling to engine output shafts per AR North America model designation convention

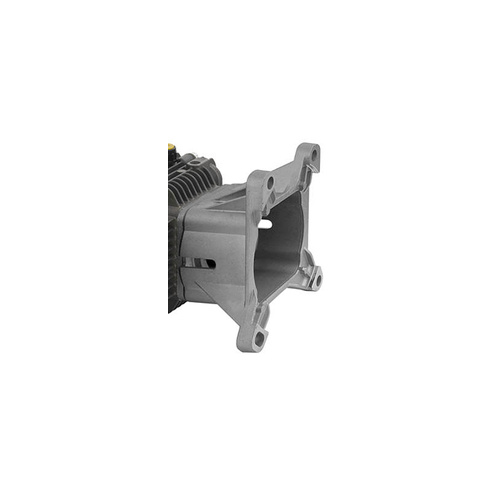

• F24 — Flange type: SAE J609A direct-drive flange — close coupling to gas or diesel engines with a 1″ I.D. cylindrical shaft (AR part AR41866)
• C2 — Unloader code: Gymatic — adjustable bypass unloader with internal recirculation; AR’s factory-approved specification for this model
• No trailing I suffix — model terminates at C2, confirming straight 3,000 PSI water output without a factory-installed downstream chemical injector

Key Specifications

RKV35G30ADF24C2 Technical Details at a Glance

• Flow Rate: 3.5 GPM (gallons per minute)
• Maximum Pressure: 3,000 PSI
• Cleaning Units: 10,500 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RK Series triplex ceramic plunger pump — smooth, low-pulsation output
• Crankshaft Bore: 1″ hollow keyway — direct engagement with engine 1″ output shaft
• Housing: Reinforced pump housing with precision-machined internal passages for efficient water flow and minimal heat generation
• Serviceability: Oil sight glass and vented dipstick; accessible valves, seals, and plungers
• Lubrication: Oil-lubricated crankcase with factory pre-filled break-in oil
• Flange: F24 — SAE J609A direct-drive flange, 1″ shaft, gas and diesel engine compatible (AR part AR41866)
• Unloader System: Gymatic C2 with internal recirculation — adjustable bypass; factory-matched and factory-installed as AR’s approved specification for this model
• Connections: Banjo bolts with sealing O-rings — supplied for flexible plumbing and secure, leak-resistant installation
• Chemical Injector: Not included — straight 3,000 PSI water output; chemical delivery managed externally
• Warranty: 5-year limited warranty — US-based coverage through AR North America

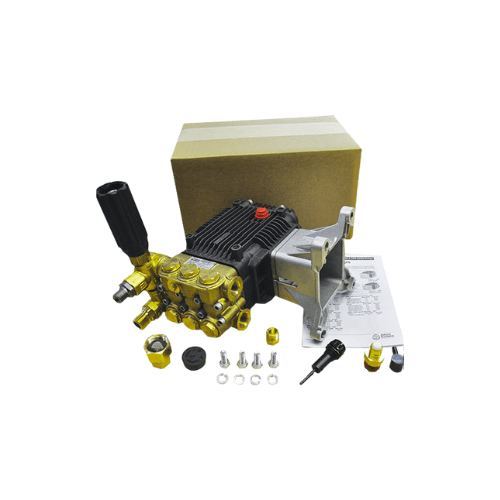

What’s Included in the Box

A Complete, Factory-Configured RKV35G30ADF24C2 Assembly Ready for Installation

• Factory-matched Gymatic C2 adjustable bypass unloader with internal recirculation — installed and calibrated for the 3.5 GPM / 3,000 PSI operating point; no downstream injector port on this variant
• Banjo bolts and sealing O-rings — supplied for flexible plumbing configurations and secure, leak-resistant unloader connections without additional fittings or adapters
• AR factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — sized for F24 SAE J609A direct-drive flange installation on compatible engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals and winterization protocol
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable component

Gymatic C2 Unloader — Internal Recirculation with Banjo Bolt Connections

Factory-Approved. Adjustable. Thermally Managed Bypass. Flexible Plumbing.

• Internal bypass recirculation — manages pressure spikes when the trigger gun is released on the RKV35G30ADF24C2, preventing damage from dead-heading and overheating while reducing heat buildup during idle cycles
• Smooth pressure transitions — internal recirculation reduces hose whip and system shock at trigger release, improving operator comfort and extending the service life of hoses, fittings, and downstream accessories
• Adjustable pressure regulation — precisely match system pressure to specific cleaning tasks on the RKV35G30ADF24C2. Compatible with surface cleaners, turbo nozzles, foam cannons, and downstream chemical injectors when properly sized.
• Banjo bolt connections with sealing O-rings — allow flexible plumbing configurations, simplify installation, and ensure secure leak-resistant connections without additional adapters. Especially useful for OEM builds and service replacements on the RKV35G30ADF24C2.
• No factory-installed injector — straight 3,000 PSI water output. Chemical delivery managed externally through a dedicated downstream injector or soft wash system when soap application is required.
• Compact integrated design — factory-installed unloader reduces setup time and eliminates guesswork, making the RKV35G30ADF24C2 well suited for professional installers and end users who value simplicity and uptime

Typical Applications

Where the RKV35G30ADF24C2 Delivers Best Results

• Residential pressure washing — driveways, siding, decks, and patios where the RKV35G30ADF24C2’s balanced 3.5 GPM / 3,000 PSI output handles residential cleaning tasks efficiently
• Commercial property cleaning — sidewalks, storefronts, and parking areas where consistent pressure output and adjustable bypass control deliver professional results
• Fleet and vehicle washing — trucks, vans, and service vehicles where 3,000 PSI handles road film and grease with chemical applied through an external downstream system
• Agricultural equipment and facility washdown — tractors, implements, and farm facilities where reliable 3.5 GPM output and adjustable pressure handle varied agricultural cleaning tasks
• Light industrial maintenance — machinery, plant floors, and facility surfaces where the RKV35G30ADF24C2 provides dependable output for general wash and maintenance applications
• OEM builds and service replacements — compact F24 footprint, factory-matched unloader, and banjo bolt connections make the RKV35G30ADF24C2 practical for new system builds and replacement projects across a wide range of pressure washer platforms

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RK Series Performance Backed by Domestic Support

The RKV35G30ADF24C2 is protected by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based warranty and service network. Every internal wear component — precision-machined internal components, Gymatic C2 unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through AR’s authorized distribution channels. Contractors, rental fleet operators, municipal purchasing departments, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RKV35G30ADF24C2 and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete AR North America inventories available through any US web store — with thousands of AR products in stock and a continually expanding catalog.

10,500 Cleaning Units. 3,000 PSI. 3.5 GPM. Factory-Matched C2. Internal Recirculation. Banjo Connections.

Italian Engineering. Factory-Approved Assembly. Flexible Plumbing. US Warranty Coverage.

For contractors, fleet operators, residential users, and OEM system builders who need 3.5 GPM at 3,000 PSI in a factory-matched, factory-approved complete assembly with adjustable Gymatic C2 bypass unloader with internal recirculation, banjo bolt connections for flexible leak-resistant plumbing, straight water output for external chemical management, and stress-free installation from day one, the RKV35G30ADF24C2 delivers a properly engineered, completely rebuildable solution from one of the global pressure pump industry’s most trusted manufacturers. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
