RCV35G20DF7M2I Gas Triplex Pump | 3.5 GPM 2000 PSI

RCV35G20DF7M2I by Annovi Reverberi — RC Series Triplex Plunger Pump with Mini-Matic M2I Unloader and Chemical Injector | 3.5 GPM | 2,000 PSI | 3/4″ Hollow Keyway Shaft | SAE J609a Gas Engine Drive

The RCV35G20DF7M2I by Annovi Reverberi is a professional-grade RC Series triplex ceramic plunger pump engineered for gas engine-driven pressure washing systems requiring 3.5 GPM at 2,000 PSI with factory-integrated downstream chemical injection capability. Rated at 3.5 GPM and 2,000 PSI at 3,400 RPM, the RCV35G20DF7M2I delivers 7,000 cleaning units — combining 3.5 GPM high-volume output with 2,000 PSI cleaning force for fast coverage on vehicles, RVs, equipment, storefronts, sidewalks, agricultural machinery, and large exterior surfaces — through solid ceramic plungers, stainless steel valves, precision-machined internal components, and an F7 SAE J609a direct-drive flange with 3/4″ hollow keyway shaft for direct coupling to compatible gasoline engines. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV35G20DF7M2I arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCV35G20DF7M2I carries the factory-installed Mini-Matic M2I integrated unloader and chemical injector — delivering factory pre-set and adjustable pressure regulation with downstream chemical injection from a single factory-configured, factory-approved assembly. The 3.5 GPM output accelerates rinse cycles and surface coverage, making the RCV35G20DF7M2I well suited for high-volume residential and commercial cleaning where coverage speed matters as much as pressure. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCV35G20DF7M2I is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV35G20DF7M2I Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV35G20DF7M2I ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched M2I for 2,000 PSI — the Mini-Matic M2I integrated unloader and chemical injector are factory-calibrated for this pump’s 3.5 GPM / 2,000 PSI duty point. Pressure regulation and chemical draw characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV35G20DF7M2I exits the manufacturing facility with the M2I assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses, connect the detergent supply line to the injector port, add fuel, and start. The RCV35G20DF7M2I arrives engineered, assembled, and ready.

Decoding the RCV35G20DF7M2I Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial gas engine pump platform
• 35G — Pump series identifier for this RCV configuration
• 20 — Maximum pressure: 2,000 PSI — 3.5 × 2,000 = 7,000 cleaning units
• D — Shaft version: Direct Drive — 3,400 RPM operating speed for direct gas engine coupling per Annovi Reverberi model designation convention

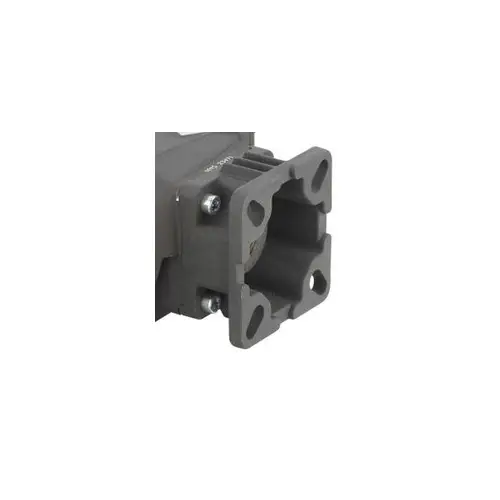

• F7 — Flange type: SAE J609a direct-drive flange — close coupling to gas engines with a 3/4″ hollow keyway shaft (Annovi Reverberi part AR1579)
• M2 — Unloader family: Mini-Matic — factory-installed integrated unloader assembly with adjustable pressure regulation
• I — Chemical injector: Included — downstream soap injector factory-integrated into the Mini-Matic M2 assembly for two-mode wash capability

RCV35G F7M2I Family — 2,000 PSI vs 2,500 PSI

Both models share the same RC Series platform, F7 SAE J609a flange, 3/4″ hollow shaft, Mini-Matic M2I assembly, and 3.5 GPM high-volume output:

• RCV35G20DF7M2I (this model) — 2,000 PSI / 7,000 CU. Maximum coverage speed at lower impact pressure. Ideal for vehicle washing, large exterior surfaces, and high-volume rinsing where flow rate drives productivity.
• RCV35G25DF7M2I — 2,500 PSI / 8,750 CU. Additional 500 PSI for more aggressive surface cleaning, heavier contamination, and commercial applications requiring greater impact force at the same 3.5 GPM flow.

Key Specifications

RCV35G20DF7M2I Technical Details at a Glance

• Flow Rate: 3.5 GPM (gallons per minute)
• Maximum Pressure: 2,000 PSI
• Cleaning Units: 7,000 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RC Series triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, low-pulsation output
• Flange: F7 — SAE J609a direct-drive flange, 3/4″ hollow keyway shaft, gas engine compatible (Annovi Reverberi part AR1579)
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — engineered for long-term tolerances under continuous 3,400 RPM operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Mini-Matic M2I — factory pre-set and adjustable; integrated downstream chemical injector; factory-matched and factory-installed
• Connections: Banjo bolts and sealing O-rings — standard M2 family hardware supplied for secure, leak-resistant installation
• Chemical Injector: Included — downstream venturi injector factory-integrated into M2I Mini-Matic assembly
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

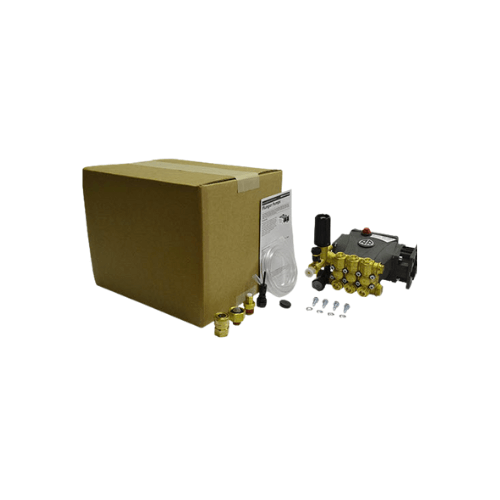

What’s Included in the Box

A Complete, Factory-Configured RCV35G20DF7M2I Assembly Ready for Installation

• Factory-matched Mini-Matic M2I integrated unloader with active chemical injector — factory pre-set and installed for the 3.5 GPM / 2,000 PSI operating point; adjustable; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard M2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F7 SAE J609a direct-drive flange installation on compatible gas engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals, chemical injector care, and winterization protocol
• Parts schematic — exploded-view diagram with Annovi Reverberi part numbers for every serviceable component

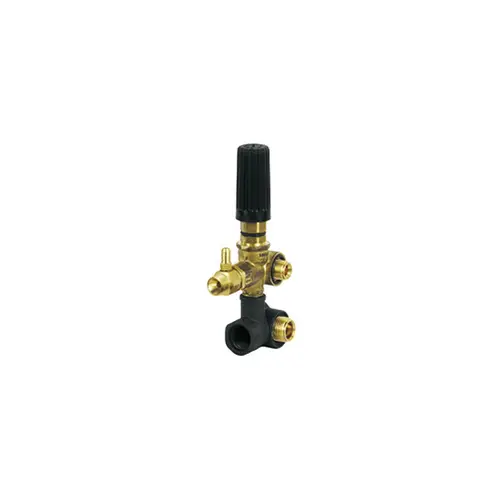

Mini-Matic M2I Unloader — High-Flow Two-Mode Platform at 2,000 PSI

Factory Pre-Set. Adjustable. Integrated Chemical Feed. 3.5 GPM Coverage Speed.

• Factory pre-set and adjustable pressure regulation — the Mini-Matic M2I on the RCV35G20DF7M2I arrives calibrated for immediate 2,000 PSI operation with manual adjustment available for fine-tuning to match nozzle size, surface type, and cleaning requirements
• Integrated downstream injection — draws detergent or pre-soak solution when the operator switches to low-pressure application mode. No separate injector hardware or additional plumbing required on the RCV35G20DF7M2I.
• Two-mode workflow at 3.5 GPM / 2,000 PSI — chemical pre-soak breaks down grease, film, and general soils; full 2,000 PSI / 3.5 GPM rinse removes loosened material at 7,000 cleaning units. The 3.5 GPM flow rate provides fast rinsing across large residential and commercial surface areas.
• Dependable pump protection in start/stop duty cycles — the Mini-Matic M2I maintains stable working pressure under trigger cycling, protecting the RCV35G20DF7M2I during the frequent pause-and-resume operation typical of vehicle and equipment washing
• Simplified system layout — integrated control components on the RCV35G20DF7M2I reduce external plumbing complexity on portable carts, contractor frames, and trailer builds where space and service access matter
• Injector maintenance — flush the injector circuit with clean water after every detergent session and limit extended bypass operation to reduce heat buildup

Typical Applications

Where the RCV35G20DF7M2I Delivers Best Results

• Residential and commercial vehicle, RV, and equipment washing — the RCV35G20DF7M2I’s 3.5 GPM high-flow output reduces total cleaning time on larger vehicles and equipment where coverage speed and chemical pre-soak capability drive wash productivity
• Storefronts, sidewalks, and facility exteriors — consistent 3,400 RPM direct-drive output and factory-integrated two-mode capability deliver efficient results on commercial property surfaces where rapid rinse completion matters
• Industrial maintenance on machinery, floors, and work areas — high-volume flow and on-demand chemical injection handle industrial contamination efficiently on gas engine-powered portable cleaning systems
• Agricultural equipment with detergent-assisted washdown — tractors, trailers, harvesters, and farm equipment where the RCV35G20DF7M2I’s two-mode capability and 3.5 GPM coverage speed handle large agricultural surfaces with chemical pre-soak on gas engine-powered rigs

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Performance Backed by Domestic Support

The RCV35G20DF7M2I is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, manifold seals and o-rings, stainless valve seats and springs, Mini-Matic M2I unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, fleet operators, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV35G20DF7M2I and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

7,000 Cleaning Units. 2,000 PSI. 3.5 GPM. F7 SAE J609a. Mini-Matic M2I. Two-Mode.

Italian Engineering. High-Flow Gas Engine Platform. Factory-Approved Mini-Matic Assembly. US Warranty Coverage.

For residential users, commercial contractors, fleet operators, agricultural teams, and OEM equipment builders who need 3.5 GPM at 2,000 PSI on a gas engine platform — with F7 SAE J609a direct-drive flange for 3/4″ hollow keyway shaft engine coupling, high-flow coverage speed for large surface areas and rapid rinse cycles, factory-matched Mini-Matic M2I integrated unloader with downstream chemical injection, and a completely rebuildable platform backed by a 5-year US warranty — the RCV35G20DF7M2I delivers a purpose-engineered compact commercial solution from one of the global pressure pump industry’s most trusted manufacturers. Seven thousand cleaning units. Direct gas engine drive. Two-mode chemical capability. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
