RKA45G40HN-SX LH Triplex Pump | 4.5 GPM 4000 PSI

Product Summary for RKA45G40HN-SX

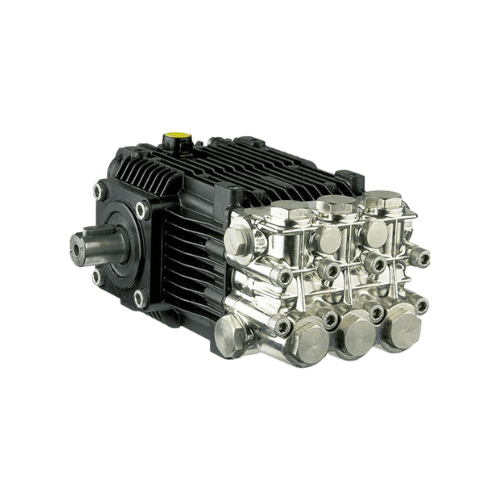

• RKA45G40HN-SX left-hand triplex plunger pump engineered for specialized and mirror-image system layouts.
• Delivers 4.5 GPM at 4000 PSI at 1750 RPM for high-output cleaning with reduced heat and wear.
• Left-hand (SX) crankshaft orientation supports dual-pump and space-constrained industrial frames.
• 18,000 ECU output provides strong impact force and fast cleaning on heavy soils.
• Backed by a 5-year manufacturer warranty for professional and industrial duty cycles.

System Configuration

• Triplex crankshaft-drive architecture designed for smooth, low-pulsation delivery under sustained load.
• Low-speed 1750 RPM platform supports cooler operation and extended seal and bearing life.
• Left-hand (SX) crankshaft configuration enables mirror-image mounting and balanced multi-pump systems.
• 24 mm solid crankshaft supports belt-drive layouts and controlled-speed installations.
• Optimized for industrial rigs, wash bays, and OEM frames requiring directional shaft orientation.

Performance Specifications of RKA45G40HN-SX

• Rated Flow: 4.5 gallons per minute.
• Rated Pressure: 4000 PSI.
• Operating Speed: 1750 RPM.

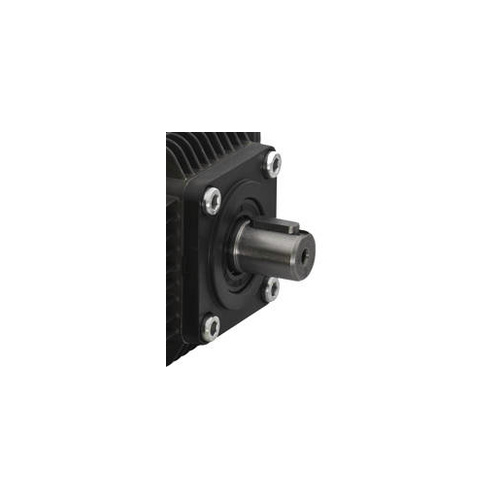

• Crankshaft: 24 mm diameter solid shaft.
• Configuration: Left-hand (SX).
• Pump Type: Triplex ceramic plunger pump.
• Warranty: 5-year manufacturer coverage.

Included Components

• Pump supplied with factory-installed break-in oil.
• Oil sight glass and vented dipstick for easy oil monitoring and service access.
• Operator’s manual and parts schematic.
• Configured as a pump-only solution for custom belt-drive or skid builds.

Packaging & Deployment

• Designed for belt-drive integration where pulley ratio sets final operating speed.
• Left-hand shaft orientation simplifies layout in dual-pump or mirrored installations.
• 24 mm shaft supports common industrial hubs, pulleys, and coupling options.
• Documentation included to support accurate installation and long-term service planning.

Materials & Quality Control

• Forged brass manifold engineered for durability in continuous wet-service environments.
• Ceramic plungers selected for wear resistance and stable sealing at high pressure.
• Stainless steel valves and robust sealing system support consistent output and reduced downtime.
• Oil-bath crankcase supports stable lubrication and bearing life at low RPM.
• Factory assembly and functional verification performed prior to packaging.

Manufacturing Standards

• Manufactured to industrial-duty triplex pump production standards.
• Designed to meet published performance ratings at 1750 RPM operation.
• Service documentation provided for maintenance and rebuild planning.
• Warranty coverage supports contractor, fleet, and industrial wash programs.

Operating Guidance for RKA45G40HN-SX

• Confirm belt alignment, pulley condition, and guarding prior to startup.
• Use clean water supply and proper inlet filtration to protect valves, packings, and plungers.
• Verify supply flow is adequate for 4.5 GPM operation before extended runtime.
• Pair with an unloader/regulator sized to 4.5 GPM and set pressure at the nozzle.
• Follow the operator’s manual for break-in, oil service intervals, and winterization.

Service & Maintenance

• Monitor oil level through the sight glass and service oil per manufacturer intervals.
• Inspect inlet strainers regularly to prevent cavitation and pressure instability.
• Check fittings and plumbing connections for leaks and air ingestion.
• Inspect packings and valves during scheduled maintenance intervals.
• Use the parts schematic to plan rebuild kits and minimize downtime.

RKA45G40HN-SX Applications

• Industrial equipment and plant cleaning operations.
• Concrete surface preparation, restoration, and large-area cleaning.
• Vehicle and fleet wash systems requiring high-output performance.
• Professional contractor pressure-washing rigs and wash bays.
• Custom OEM and dual-pump systems requiring left-hand shaft orientation.
