RCV2G15E-F8 2.0 GPM 1500 PSI | Electric Pump

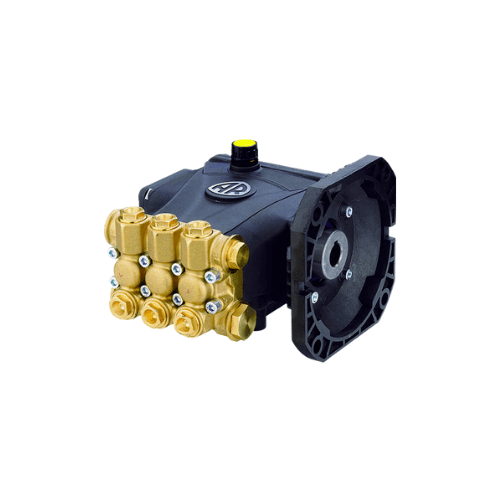

RCV2G15E-F8 — 2.0 GPM, 1500 PSI Electric Triplex Pump, F8 56C Mount

• Compact, reliable electric triplex plunger pump for light to medium-duty cleaning cycles.
• Delivers 2.0 GPM at 1500 PSI at 3400 RPM to balance usable cleaning power with surface safety.

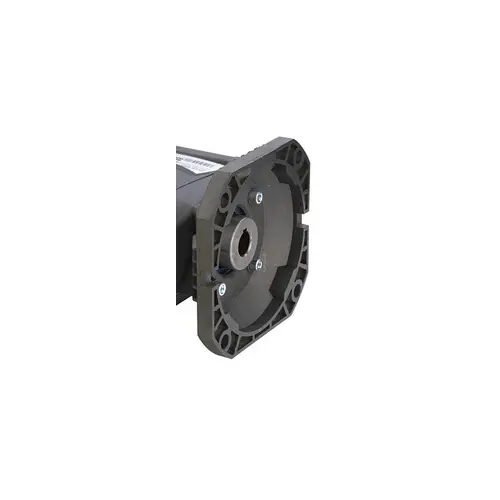

• F8 flange with 5/8″ hollow shaft couples directly to NEMA 56C face electric motors for clean direct-drive integration.
• WSHPWR.com-ready option for residential upgrades, light commercial carts, and compact electric wash stations.

Performance Specifications for RCV2G15E-F8

• Flow Rate: 2.0 GPM.
• Maximum Pressure: 1500 PSI.
• Operating Speed: 3400 RPM.
• Shaft Type: 5/8″ hollow shaft.
• Mount Type: F8 electric motor flange, NEMA 56C compatible.
• Pump Type: Electric triplex plunger pump.
• Warranty: 5-year manufacturer warranty with nationwide support.

Mounting & Integration

• Direct-drive 56C mounting supports fast installation with consistent alignment and reduced setup time.
• Compact footprint fits small frames, service carts, and enclosed cabinet builds where space is limited.
• Designed for straightforward plumbing layouts in electric systems without engine vibration variables.
• Ideal for replacement installs where maintaining existing motor mount geometry and hose routing is required.

Included Components

• Pre-filled break-in oil for immediate startup.
• Sight glass and vented dipstick for easy oil monitoring.
• Mounting bolts for secure attachment to compatible motors.
• Operations manual and parts schematic for maintenance reference.

Materials & Construction

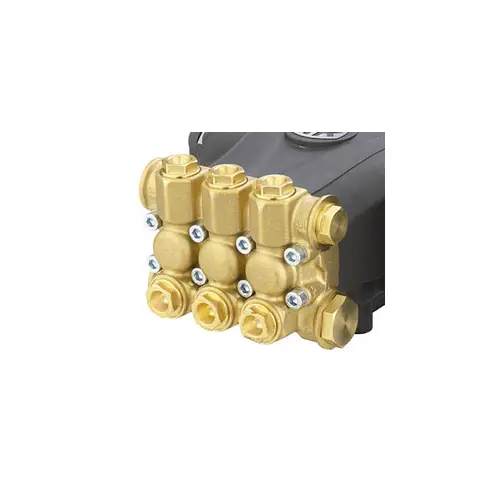

• Precision-machined brass head engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested RCV2G15E-F8 prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match electric motor horsepower and operating RPM to the intended pressure and flow.
• Confirm secure mounting, proper rotation, and electrical protection before initial start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits of RCV2G15E-F8

• Ceramic plungers, stainless steel valves, and brass head support long service life.
• Triplex design reduces pulsation for smoother, more consistent cleaning pressure.
• Electric drive eliminates fuel handling and helps reduce noise in indoor and residential settings.
• Compact, direct-mount format supports clean installation in tight frames and small equipment rooms.
• Sight glass and dipstick simplify routine service checks and maintenance planning.

RCV2G15E-F8 Typical Applications

• Home and patio cleaning: decks, patios, siding, and outdoor furniture.
• Vehicle washing for cars, trucks, RVs, and boats.
• Light industrial and shop cleaning of small equipment and work areas.
• DIY residential systems requiring dependable, moderate-pressure cleaning.
