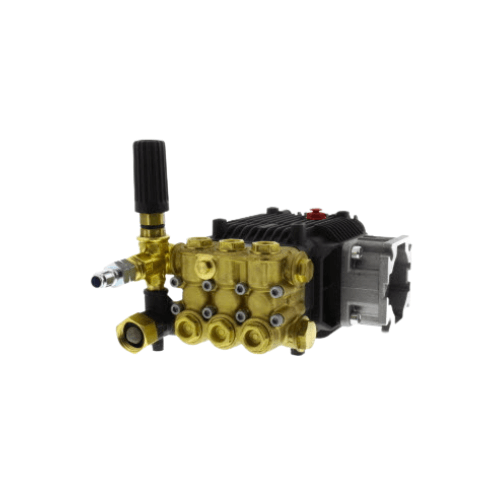

RCV25G27DF7M2I | Triplex Pump, 2.5 GPM 2700 PSI, F7 Mount, M2 Unloader

RCV25G27DF7M2I by Annovi Reverberi — RC Series Triplex Plunger Pump with Mini-Matic M2I Unloader and Chemical Injector | 2.5 GPM | 2,700 PSI | Brass Manifold | 3/4″ Hollow Keyway Shaft | SAE J609a Gas Engine Drive

The RCV25G27DF7M2I by Annovi Reverberi is a professional-grade RC Series triplex ceramic plunger pump engineered for gas engine-driven pressure washing systems requiring 2.5 GPM at 2,700 PSI with factory-integrated downstream chemical injection capability. Rated at 2.5 GPM and 2,700 PSI, the RCV25G27DF7M2I delivers 6,750 cleaning units — combining 2.5 GPM output with 2,700 PSI cleaning force for residential, commercial, and light industrial pressure washing, mobile wash trailers, contractor rigs, and fleet and equipment cleaning — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, and an F7 SAE J609a direct-drive flange with 3/4″ hollow keyway shaft for direct coupling to compatible gasoline engines. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV25G27DF7M2I arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCV25G27DF7M2I carries the factory-installed Mini-Matic M2I integrated unloader and chemical injector — delivering factory-set and adjustable pressure regulation with downstream chemical injection from a single compact, factory-configured assembly. Its direct-mount F7 configuration fits common gas-powered pressure washer frames without extensive modifications, making the RCV25G27DF7M2I practical for both new builds and replacement installs. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCV25G27DF7M2I is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV25G27DF7M2I Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV25G27DF7M2I ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched M2I for 2,700 PSI — the Mini-Matic M2I integrated unloader and chemical injector are factory-calibrated for this pump’s 2.5 GPM / 2,700 PSI duty point. Pressure regulation and chemical draw characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV25G27DF7M2I exits the manufacturing facility with the M2I assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses, connect the detergent supply line to the injector port, add fuel, and start. The RCV25G27DF7M2I arrives engineered, assembled, and ready.

Decoding the RCV25G27DF7M2I Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial gas engine pump platform
• 25G — Pump series identifier for this RCV configuration
• 27 — Maximum pressure: 2,700 PSI — 2.5 × 2,700 = 6,750 cleaning units
• D — Shaft version: Direct Drive — gas engine coupling per Annovi Reverberi model designation convention
• F7 — Flange type: SAE J609a direct-drive flange — close coupling to gas engines with a 3/4″ hollow keyway shaft (Annovi Reverberi part AR1579)
• M2 — Unloader family: Mini-Matic — factory-installed integrated unloader assembly with adjustable pressure regulation
• I — Chemical injector: Included — downstream soap injector factory-integrated into the Mini-Matic M2 assembly for chemical application and rinse capability

RCV25G F7M2I Family — 2,500 PSI vs 2,700 PSI

Both models share the same RC Series platform, F7 SAE J609a flange, 3/4″ hollow shaft, Mini-Matic M2I assembly, and 2.5 GPM output:

• RCV25G27DF7M2I (this model) — 2,700 PSI / 6,750 CU. Additional cleaning impact for heavier surface contamination, commercial property, and fleet washing where maximum pressure output is the priority.
• RCV25G25DF7M2I — 2,500 PSI / 6,250 CU. Same platform and flow at 200 PSI lower for residential upgrades and light commercial applications.

Key Specifications

RCV25G27DF7M2I Technical Details at a Glance

• Flow Rate: 2.5 GPM (gallons per minute)
• Maximum Pressure: 2,700 PSI
• Cleaning Units: 6,750 (GPM × PSI)
• Pump Type: RC Series triplex ceramic plunger pump — smooth, low-pulsation output

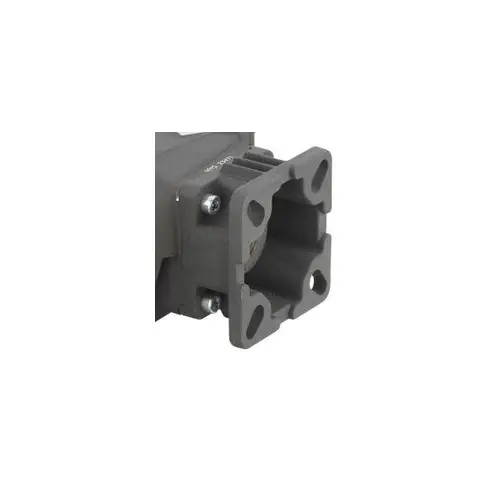

• Flange: F7 — SAE J609a direct-drive flange, 3/4″ hollow keyway shaft, gas engine compatible (Annovi Reverberi part AR1579)

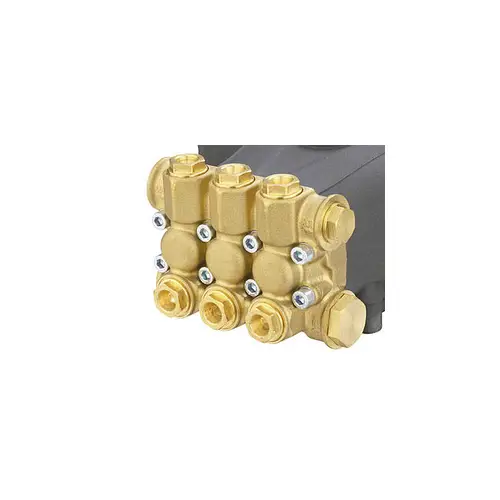

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — long-term tolerances under continuous operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Mini-Matic M2I — factory-set and adjustable; integrated downstream chemical injector; factory-matched and factory-installed
• Connections: Banjo bolts and sealing O-rings — standard M2 family hardware supplied for secure, leak-resistant installation
• Chemical Injector: Included — downstream venturi injector factory-integrated into M2I Mini-Matic assembly
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCV25G27DF7M2I Assembly Ready for Installation

• Factory-matched Mini-Matic M2I integrated unloader with active chemical injector — factory-set and installed for the 2.5 GPM / 2,700 PSI operating point; adjustable; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard M2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F7 SAE J609a direct-drive flange installation on compatible gas engines
• Installation and service manual with exploded-view schematic — installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component

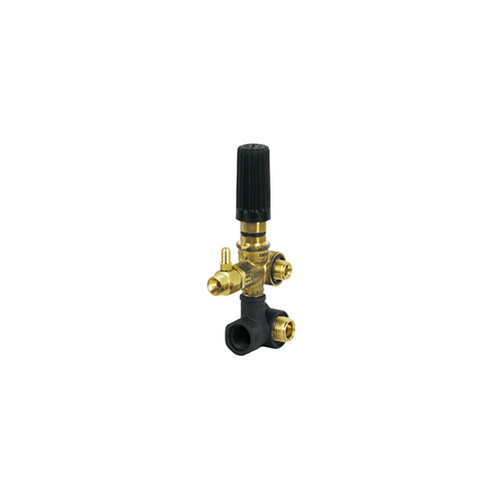

Mini-Matic M2I Unloader — Chemical Application and Rinse at 2,700 PSI

Factory-Set. Adjustable. Integrated Chemical Feed. Direct Gas Engine Platform.

• Factory-set and adjustable pressure regulation — the Mini-Matic M2I on the RCV25G27DF7M2I arrives calibrated for immediate 2,700 PSI operation with manual adjustment available for fine-tuning to match nozzle size, surface type, and cleaning requirements
• Integrated downstream injection — draws detergent or pre-soak solution when the operator switches to low-pressure application mode. No separate injector hardware or additional plumbing required on the RCV25G27DF7M2I.
• Chemical application and rinse at 2.5 GPM / 2,700 PSI — chemical pre-soak breaks down heavy soil, grease, and surface contamination; full 2,700 PSI / 2.5 GPM rinse removes loosened material at 6,750 cleaning units. Switch between application and rinse without changing tools.
• Stable pressure control in stop-and-go duty cycles — the Mini-Matic M2I protects the RCV25G27DF7M2I from overload conditions during the frequent trigger cycling typical of contractor, mobile wash, and fleet cleaning operations
• Compact integrated assembly for simplified builds — the M2I’s direct-mount configuration reduces external plumbing complexity on the RCV25G27DF7M2I, keeping contractor frames, mobile rigs, and replacement installs clean and serviceable
• Injector maintenance — flush the injector circuit with clean water after every detergent session to preserve long-term venturi function on the RCV25G27DF7M2I

Typical Applications

Where the RCV25G27DF7M2I Delivers Best Results

• Residential, commercial, and light industrial pressure washer builds — the RCV25G27DF7M2I’s 2,700 PSI output, factory-integrated chemical injection, and F7 direct-mount compatibility deliver professional cleaning performance across the full range of gas engine-powered systems
• Mobile wash trailers and contractor rigs — compact F7 footprint and factory-matched M2I assembly support efficient integration into mobile contractor cleaning systems where fast installation and reliable daily performance are operational requirements
• Fleet, equipment, and machinery cleaning — 2.5 GPM output and 2,700 PSI cleaning force handle road film, grease, and heavy contamination on fleet vehicles and equipment with on-demand chemical capability
• Property and grounds maintenance for facilities and municipalities — consistent direct-drive output and integrated chemical application support scheduled commercial property and municipal cleaning programs on gas engine-powered contractor systems

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Performance Backed by Domestic Support

The RCV25G27DF7M2I is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Mini-Matic M2I unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, fleet operators, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV25G27DF7M2I and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

6,750 Cleaning Units. 2,700 PSI. 2.5 GPM. F7 SAE J609a. Mini-Matic M2I. Integrated Chemical Injection.

Italian Engineering. Gas Engine Direct Drive. Factory-Approved Mini-Matic Assembly. US Warranty Coverage.

For residential users, commercial contractors, fleet operators, municipal maintenance teams, and OEM equipment builders who need 2.5 GPM at 2,700 PSI on a gas engine platform — with F7 SAE J609a direct-drive flange for 3/4″ hollow keyway shaft engine coupling, factory-matched Mini-Matic M2I integrated unloader with downstream chemical injection, and a completely rebuildable platform backed by a 5-year US warranty — the RCV25G27DF7M2I delivers a purpose-engineered compact commercial solution from one of the global pressure pump industry’s most trusted manufacturers. Six thousand seven hundred fifty cleaning units. Direct gas engine drive. Integrated chemical injection. Five years of US warranty. A decade of service life.
