RCAM1G15EF8-SX 1.0 GPM 1500 PSI Pump | Left-Drive 1750 RPM 5/8 in Shaft

RCAM1G15EF8-SX 1.0 GPM 1500 PSI Pump

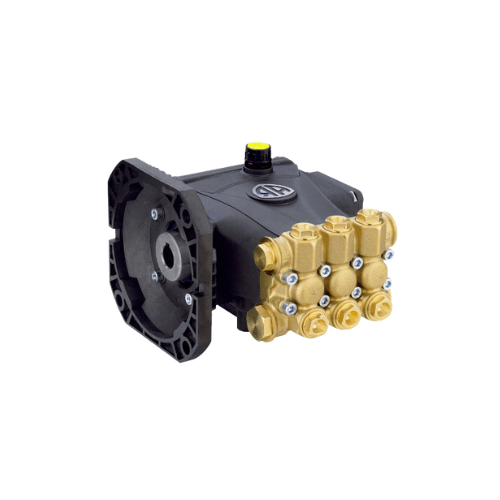

The AR RCAM1G15EF8-SX is a compact, precision-engineered left-hand-drive
high-pressure pump designed for applications requiring steady, reliable
pressure in tight equipment layouts. Delivering 1.0 GPM at 1,500 PSI
and operating at 1,750 RPM, it provides consistent performance for
controlled-flow cleaning, rinsing, and process systems.

Its left-drive shaft orientation makes it ideal for mirrored equipment layouts,
restricted-space installations, or systems that require opposite-side power
input for plumbing or motor arrangement.

Key Features for RCAM1G15EF8-SX 1500 PSI

• Delivers 1.0 GPM at 1,500 PSI
• Left-drive configuration for mirrored or tight equipment designs
• Triplex plunger design for smooth, pulse-controlled pressure output

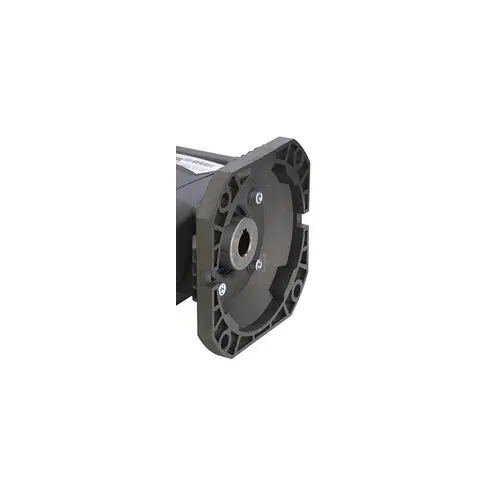

• F8 flange mount for rigid motor alignment and simple installation
• 5/8 in drive shaft for secure motor coupling

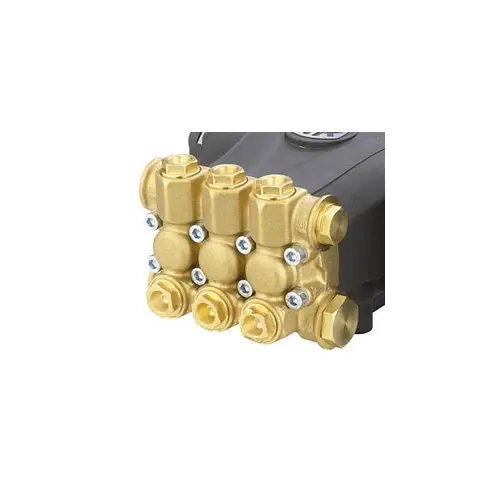

• Brass manifold for corrosion resistance and long-term durability
• Ceramic plungers with hardened stainless-steel pistons
• High-quality seals and O-rings resistant to chemicals and temperature cycling
• Die-cast aluminum crankcase for efficient heat dissipation
• Sight glass and splash-lubrication system for easy maintenance

Performance & Construction Benefits

Smooth, Stable Pressure Delivery

• Triplex plungers provide a balanced, low-pulsation discharge stream
• Protects downstream valves, hoses, guns, and fittings from pressure shock
• Ideal for applications requiring consistent, sustained pressure

RCAM1G15EF8-SX Durable Internal Components

• Ceramic plunger surfaces reduce friction and extend internal component life
• Hardened stainless-steel pistons maintain sealing performance under load
• Chemical-resistant elastomers maintain integrity through frequent start-stop cycles

Cooling & Mechanical Stability

• Aluminum crankcase acts as a heat sink for cooler running and longer life
• Heavy-duty bearings reduce wear during extended duty cycles
• Splash-lubrication system ensures consistent oil coverage

Application Suitability

• Compact wash systems and enclosed equipment racks
• OEM cleaning machinery with tight or mirrored layouts
• Precision washdown and detail cleaning systems
• Fine surface rinsing and controlled-flow spray applications
• Process fluid circulation and light industrial pressure systems

The smooth flow profile helps extend accessory lifespan, reduces vibration,
and maintains stable performance in both intermittent and continuous light-duty
industrial operation.

Integration & Maintenance

• Direct F8 flange mount simplifies installation—no custom brackets required
• Left-hand drive orientation supports mirrored pump banks and optimized equipment layout
• Maintenance limited mainly to periodic oil checks and seal inspections
• Factory-tested for pressure accuracy, seal integrity, and mechanical tolerances

Specifications

• Model: RCAM1G15EF8-SX
• Flow: 1.0 GPM
• Pressure: 1,500 PSI
• RPM: 1,750
• Drive: Left-hand drive
• Mount: F8 flange
• Shaft Size: 5/8 in
• Manifold Material: Brass
• Plungers: Ceramic
