NZMQC5P-050 QC Nozzle 5-Pack 050 | Pressure Washer

NZMQC5P-050

• NZMQC5P-050 is a professional 5-piece quick-connect nozzle kit built around a 050 orifice for maximum water volume and fast coverage on high-output pressure washing systems.
• Designed for crews who need to move water efficiently across large surfaces—where rinse speed, flushing power, and consistent spray geometry drive productivity.
• The 050 class is typically selected for commercial wash bays, fleet operations, agricultural washdown, and facility maintenance programs that prioritize throughput over ultra-aggressive cutting.

NZMQC5P-050 Kit Contents and Angle Identification

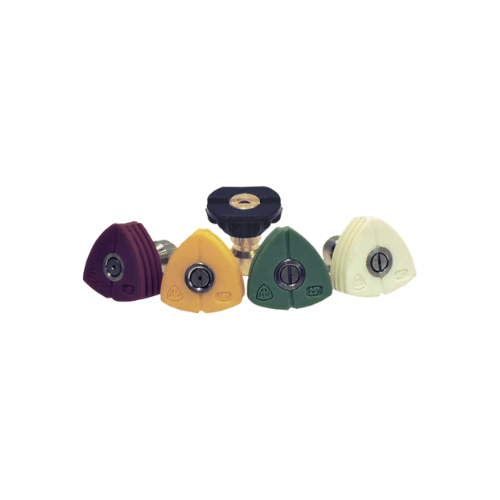

• Includes five 1/4″ quick-connect spray nozzles with matched 050 orifice sizing across the set.
• Spray patterns included: 0°, 15°, 25°, 40°, and Soap.
• Color-coded tips support fast selection at the wand, reducing downtime and improving consistency across operators.
• Uniform orifice sizing ensures predictable flow behavior as crews change spray angles during a single job.

NZMQC5P-050 050 Orifice Function and System Matching

• The 050 orifice is engineered to support high flow rates, improving flushing efficiency and reducing time spent on large-area rinsing.
• Larger orifices generally reduce restriction, which can help stabilize operating temperatures during long duty cycles on commercial pumps.
• Correct nozzle sizing is essential: an orifice that is too small can increase pressure, heat, and pump load; an orifice that is too large can reduce effective cleaning impact.
• When properly matched to the machine’s output, 050 tips deliver strong coverage and steady control—especially valuable on broad surfaces and high-volume wash programs.

Quick-Connect Interface and Rig Compatibility

• Uses the industry-standard 1/4″ quick-connect plug for tool-free installation and rapid angle changes.
• Compatible with most contractor-grade trigger guns, extension lances, wands, and many downstream accessories that accept 1/4″ QC tips.
• Secure detent engagement helps prevent accidental disconnects during trigger cycling and pressure transitions.
• For best sealing and safety, maintain the coupler O-ring, verify the locking collar returns fully, and replace worn couplers before they damage nozzle plugs.

NZMQC5P-050 Spray Pattern Roles in the Field

0° Focused Stream

• Concentrated jet intended for controlled spot work on durable surfaces.
• Effective on compacted mud, thick buildup, and hard deposits when operators can maintain safe standoff distance.
• Best used briefly and deliberately to avoid surface damage, especially on painted or softer materials.

15° High-Impact Fan

• Aggressive fan pattern for heavy soil removal while offering more control than a pinpoint stream.
• Commonly used for equipment washdown, wheel wells, undercarriages, and heavy residue on industrial surfaces.
• Strong first-pass nozzle before transitioning to wider fans for flushing and finishing.

25° General-Cleaning Fan

• Balanced spray angle for routine cleaning tasks that require both control and coverage.
• Well-suited for vehicle exteriors, farm machinery panels, building components, and general facility washdown.
• Supports consistent progress without excessive surface aggression.

40° Wide Coverage Fan

• Wide spray for fast rinsing and broad surface coverage on large areas.
• Ideal for big concrete pads, sidewalks, building exteriors, tanks, trailers, and wash bay finishing passes.
• Helps reduce striping when operators maintain consistent wand speed and distance.

Soap Nozzle for Downstream Chemical Application

• Low-pressure pattern used to activate downstream chemical injectors and apply detergents uniformly.
• Supports pre-soak and dwell processes that improve removal of road film, grease, and organic soils before high-pressure rinsing.
• Best practice is to flush clean water after chemical use to protect injectors, hoses, and nozzle passages.

NZMQC5P-050 Materials, Durability, and Repeatability

• Manufactured from high-pressure-rated, corrosion-resistant materials suited to commercial wash environments.
• Precision-machined orifices and internal profiles support stable spray geometry and consistent flow.
• Designed to withstand repeated coupling cycles, vibration, and extended runtime in hot or cold water service.
• Factory-tested for secure fitment, dependable spray patterns, and leak-free operation under typical professional conditions.

Industrial Applications

• Fleet washing for buses, trucks, trailers, and service vehicles where rinse speed drives throughput.
• Agricultural washdown for tractors, implements, barns, and livestock facilities requiring high-volume flushing.
• Facility maintenance including building exteriors, loading zones, service bays, and equipment staging areas.
• Large hard-surface cleaning on concrete, asphalt, sidewalks, and pads where coverage efficiency is critical.
• Contractor and municipal work requiring quick pattern changes to move from cutting to rinsing without changing tools.

NZMQC5P-050 Operating Guidance and Service Practices

• Match nozzle size to the machine’s rated GPM/PSI—proper selection protects pumps, unloaders, and heating coils while keeping cleaning performance predictable.
• Start with wider angles to evaluate surface response, then tighten patterns only where additional impact is required.
• Inspect tips regularly for wear; enlarged orifices reduce impact and increase water consumption while masking the root cause of weak performance.
• Keep the full set staged at the rig so operators always have cut, wash, rinse, and soap capability available without delays.
