NZMQC5P-055 QC Nozzle 5-Pack 055 | Pressure Washer

NZMQC5P-055

• NZMQC5P-055 is a professional 5-piece quick-connect nozzle kit built around a 055 orifice for high-flow washing, rapid rinsing, and wide-area coverage on large-output pressure washer systems.
• Designed for operations where productivity is measured in square footage and cycle time—wash bays, agricultural washdown, fleet programs, and facility maintenance that require fast flushing and consistent spray geometry.
• The 055 class is typically chosen when the machine has the flow capacity to support it and the job demands broad wetting, heavy rinsing, and efficient soil transport rather than maximum point-impact cutting.

Kit Contents and Angle Identification

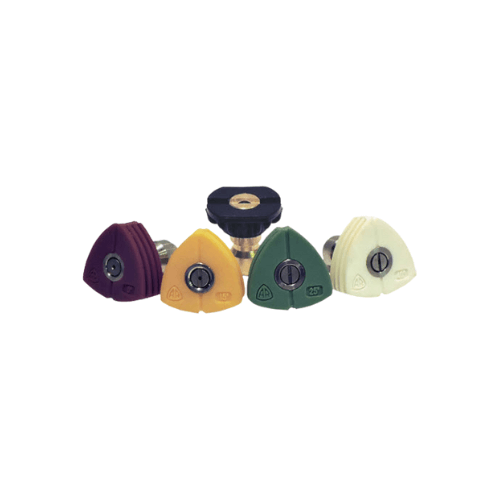

• Includes NZMQC5P-055 five 1/4″ quick-connect spray nozzles with matched 055 orifice sizing across the set for predictable flow behavior when changing spray angles.
• Spray patterns included: 0°, 15°, 25°, 40°, and Soap (low-pressure chemical application).
• Color-coded tips provide immediate pattern recognition at the wand to keep crews moving without second-guessing angles.
• Consistent orifice sizing helps standardize performance across operators, shifts, and multiple rigs set up for the same wash program.

055 Orifice Function and System Matching

• The 055 orifice is engineered for higher water volume, supporting fast coverage and strong flushing action on large surfaces and high-contamination environments.
• Higher flow improves debris transport—lifting and carrying mud, manure film, salts, and slurry away from the work zone instead of re-depositing it.
• Proper machine matching matters: the correct nozzle size stabilizes operating conditions, while an undersized tip can drive pressure, heat, and pump load upward.
• When correctly sized to the washer’s rated output, 055 tips deliver controlled performance with efficient rinsing, reduced striping, and consistent spray formation.

NZMQC5P-055 Quick-Connect Interface and Rig Compatibility

• Uses the industry-standard 1/4″ quick-connect plug for tool-free swaps between cutting, washing, rinsing, and soap application.
• Compatible with most professional trigger guns, lances, extension wands, and accessories designed around 1/4″ QC tips.
• Secure detent engagement supports reliable retention during trigger cycling and pressure transitions common in mobile wash and bay work.
• Best practice: keep coupler O-rings in serviceable condition, confirm the collar locks fully, and replace worn couplers before they damage nozzle plugs or create leakage.

Spray Pattern Roles in the Field NZMQC5P-055

0° Focused Stream

• Concentrated jet used for controlled spot cleaning on durable materials where maximum localized impact is required.
• Effective for compacted deposits in corners, joints, and heavy buildup zones when operators maintain safe standoff distance.
• Use deliberately and briefly—especially on painted surfaces, softer metals, or aging coatings—to avoid surface damage.

15° High-Impact Fan

• Aggressive fan pattern for heavy soil removal while providing more control and safety margin than a pinpoint stream.
• Commonly used for undercarriages, equipment frames, wheel areas, and high-residue zones on industrial and agricultural assets.
• Strong first-pass nozzle before transitioning to wider patterns for final flushing and rinse-down.

25° General-Cleaning Fan

• Balanced pattern for routine washdown where both control and coverage are needed across mixed materials.
• Ideal for fleet panels, tanks, implements, building components, and general facility maintenance tasks.
• Supports consistent wand speed and uniform results across large areas without excessive aggressiveness.

40° Wide Coverage Fan

• Wide-angle rinse and coverage pattern optimized for large surfaces where productivity depends on fast wetting and flushing.
• Works well on floors, pads, sidewalks, bays, trailers, and broad exterior surfaces where uniform rinsing matters.
• Helps reduce striping when operators maintain consistent distance and overlap, especially on concrete and coated floors.

Soap Nozzle for Downstream Chemical Application

• Low-pressure pattern designed to activate downstream injection and apply detergent with consistent wetting and dwell.
• Supports foam and detergent application for road film, grease, organic residue, and heavy soils prior to high-pressure rinsing.
• Operational discipline: flush with clean water after chemical use to protect injectors, hoses, couplers, and nozzle passages.

NZMQC5P-055 Materials, Durability, and Quality Controls

• Constructed from high-pressure-rated, corrosion-resistant materials suited to harsh wash environments and frequent connection cycles.
• Precision-machined orifices and internal profiles support stable fan formation and repeatable spray angles during extended runtime.
• Built for hot- and cold-water service within the system’s operating limits, supporting continuous wash bay duty and mobile wash schedules.
• Quality testing focuses on spray-angle accuracy, orifice consistency, connection integrity, and leak resistance to keep field performance predictable.

Industrial Applications NZMQC5P-055

• Agricultural washdown for tractors, sprayers, harvesters, implements, and barn environments where high-volume flushing removes film and residue efficiently.
• Industrial facility maintenance including floors, docks, equipment staging areas, machinery housings, and wash bay cleanup.
• Fleet programs for trucks, buses, and trailers where rinse speed and consistent coverage improve throughput.
• Commercial hard-surface cleaning on pads, sidewalks, garages, and service lanes where wide patterns reduce time-on-task.
• Construction equipment washdown for earthmoving and rental assets where mud and heavy debris require strong flushing capacity.

NZMQC5P-055 Operating Guidance and Service Practices

• Select 055 tips only when the washer has the flow capacity to support them; correct sizing preserves pump life and keeps cleaning performance stable.
• Start with wider angles to evaluate surface response, then tighten patterns only where additional impact is required for stubborn deposits.
• Inspect tips for wear—an enlarged orifice can reduce effective impact and increase water consumption while masking the cause of weak performance.
• Keep the full set staged at the rig so crews can move from chemical application to cutting to rinse-down without downtime.
