MVR42021 Adjustable Injector 2.1 mm | 4060 PSI

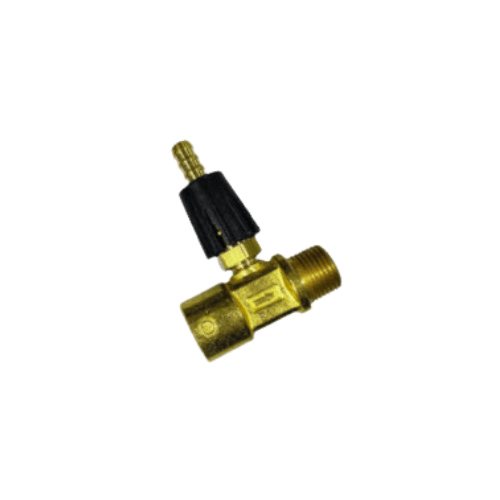

MVR42021 Adjustable Chemical Injector (2.1 mm, 4,060 PSI)

• Adjustable Venturi chemical injector designed for controlled downstream detergent delivery in professional pressure washer systems.
• Configured with a 2.1 mm orifice and rated to 4,060 PSI for dependable chemical pickup in higher-output wash programs.
• Matched to approximately 3.0–6.0 GPM equipment where stable draw and repeatable dilution are required across crews and shifts.
• Ideal for mobile rigs, skid builds, and fixed wash bays that need fast soap-to-rinse transitions without adding complex control valves.

Chemical Injection Method

Venturi Draw  MVR42021 with Adjustable Metering

• Venturi throat creates a low-pressure zone that pulls detergent through the pickup hose when backpressure is reduced in soap mode.

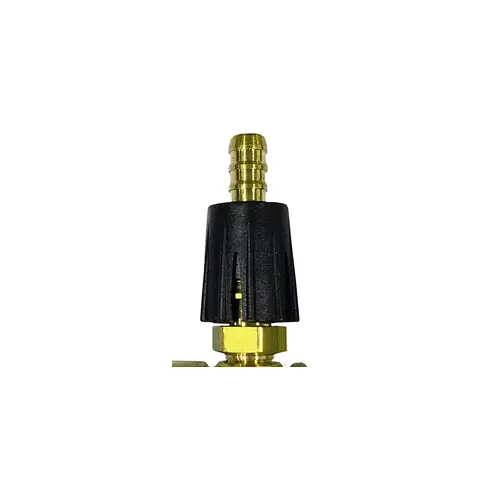

• Integrated metering knob allows smooth, incremental adjustment of chemical concentration to match soil load, surface type, and detergent recommendations.
• 2.1 mm orifice sizing supports stronger, more stable draw than smaller injectors for typical hose reels, moderate lift, and jobsite layouts.
• Repeatable knob settings help standardize application strength across rotating crews and multiple machines.

MVR42021 Backflow Protection and Clean Operation

• Built-in check valve prevents reverse flow into the chemical container during shutdown, pressure spikes, or rapid mode changes.
• Helps protect detergent quality by limiting unintended dilution and contamination through the suction circuit.
• Reduces flooding of the pickup line to improve response when returning to soap mode.
• Supports cleaner handling on mobile rigs by limiting chemical migration when the injector is not actively drawing.

System Integration and Performance

Optimized for 3.0–6.0 GPM Systems

• Designed for high-output washers where injector sizing impacts suction strength, foam consistency, and usable rinse performance.
• Balanced internal geometry supports dependable pickup while minimizing unnecessary restriction through the discharge path.
• Maintains stable draw under common conditions such as frequent trigger cycling, long hose runs, and manifold-based plumbing.
• Helps keep chemical strength consistent from the first pass through final rinse, reducing rework and chemical waste.

Tip-Based Soap and Rinse Switching

• Downstream, tip-driven behavior: chemical draw typically engages with a low-pressure soap nozzle and stops by switching to a high-pressure rinse tip.
• Fast transitions improve productivity on multi-stage wash routines without adding extra valves or bypass plumbing.
• Supports predictable dwell times by stabilizing suction when operators cycle the trigger frequently.
• Allows immediate return to high-pressure rinsing once detergent application is complete.

Construction and Durability

Materials Built for Chemical Exposure

• Corrosion-resistant brass body provides durability and long service life in mobile trailers, carts, and fixed bays.
• Stainless-steel internal components improve resistance to corrosion and wear when used with compatible soaps, detergents, and degreasers.
• Precision-machined bore reduces turbulence and hydraulic losses to preserve overall system efficiency.
• Designed to withstand vibration, thermal cycling, and frequent connection cycles typical of daily-use equipment.

MVR42021 Adjustable Injector 2.1 mm | 4060 PSI

Compact Inline Profile

• Inline layout integrates cleanly downstream of the unloader and upstream of the hose for straightforward plumbing on skids and carts.
• Compact form factor fits alongside filters, gauges, unloaders, and manifolds without forcing tight bends that can restrict flow.
• Flow-direction marking on the body reduces installation errors that can cause weak draw or inconsistent pickup.
• Service-friendly access to the metering control supports quick adjustments during production work.

Operation and Maintenance

Best Practices for Strong, Stable Draw

• Use a vented chemical container and place it close to the injector to reduce lift and stabilize suction.
• Keep suction hose runs short and unrestricted; avoid soft tubing that can collapse and reduce pickup.
• Maintain airtight suction connections—small air leaks commonly cause intermittent draw and weak foam.
• Document knob positions for frequent jobs so crews can return to proven ratios quickly across shifts.

Routine Care MVR42021

• Flush clean water through the injector and suction line after chemical use to reduce residue buildup.
• Inspect and clean the intake screen regularly to maintain unrestricted pickup.
• Replace hardened, swollen, or cracked suction tubing to prevent air leaks and restriction.
• Keep chemical containers and pickup assemblies clean to preserve consistent dilution over time.

Technical Specifications

• Model: MVR42021
• Type: Adjustable downstream Venturi chemical injector
• Orifice: 2.1 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.0–6.0 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MVR42021 Adjustable Injector 2.1 mm | 4060 PSI

Typical Applications

• Fleet washing, truck and trailer washdowns, and transit operations requiring adjustable concentration for variable soil loads.
• Construction and rental equipment cleanup where stable draw and predictable dwell improve productivity.
• Agricultural sanitation and facility wash areas needing repeatable chemistry across rotating crews.
• Building maintenance and plant operations using 3.0–6.0 GPM rigs for routine exterior cleaning and washdown programs.
• Commercial and industrial systems needing precise downstream injection with fast soap-to-rinse changeovers.
