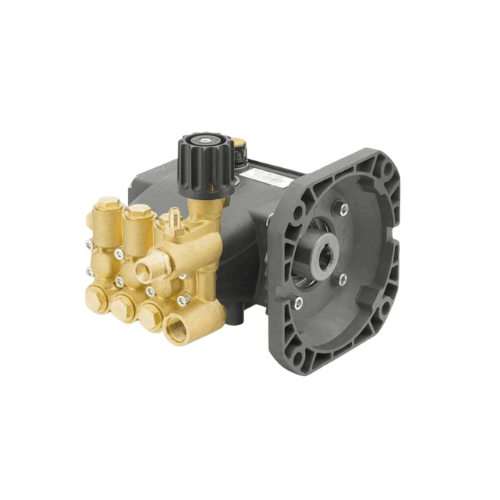

JRV35G20D-F8 | 3.5 GPM 2000 PSI F8 Electric Pump, Unloader

JRV35G20D-F8 by Annovi Reverberi — JRV Series Axial Radial Pump with Integrated Unloader | 3.5 GPM | 2,000 PSI | Brass Head | 3,400 RPM | Fixed 12% Injector | NEMA 56C Electric | 7,000 Cleaning Units

The JRV35G20D-F8 by Annovi Reverberi is a JRV Series axial radial pump with integrated unloader delivering 3.5 GPM at 2,000 PSI at 3,400 RPM — engineered for direct electric motor coupling via the F8 NEMA 56C Electric interface. Rated at 3.5 GPM and 2,000 PSI, the JRV35G20D-F8 delivers 7,000 cleaning units — through a brass head, ceramic pistons, aluminum connecting rods, an integrated adjustable unloader, and a fixed 12% chemical injector in one compact, factory-assembled pump body. The JRV Series operates at 3,400 RPM — the standard operating speed for direct electric motor coupling to NEMA 56C-frame motors in residential and light commercial wash station applications. Protected by a 2-year US limited warranty and built to be fully rebuilt rather than replaced. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the JRV35G20D-F8 is the complete integrated JRV solution for electric motor-powered pressure washing at 2,000 PSI.

Motor Compatibility — What Drives the JRV35G20D-F8

F8 NEMA 56C Flange. 5/8″ I.D. Hollow Shaft. 4.5 HP Minimum. 3,400 RPM.

The JRV35G20D-F8‘s F8 NEMA 56C flange and 5/8″ I.D. hollow shaft mount directly to standard NEMA 56C-frame electric motors at 3,400 RPM. A minimum of 4.5 horsepower is required to deliver full rated output at 3.5 GPM / 2,000 PSI. NEMA 56C-frame electric motors from all major manufacturers are compatible with the F8 direct-mount interface.

JRV Series — 3,400 RPM Electric Platform

• Brass Head — correct specification for the duty cycle — Brass head construction on every JRV Series model — the correct specification for sustained residential and light commercial pressure washing duty cycles.
• Aluminum connecting rods — lightweight and frictionless — the JRV Series aluminum connecting rod specification delivers smooth, low-friction operation across residential and light commercial duty cycles at 3,400 RPM.
• Adjustable integrated unloader — set working pressure to match nozzle selection, surface type, and application requirements without sourcing a separate unloader valve.
• Fixed 12% chemical injector — ready for detergent delivery — the integrated 12% injector is already in the pump. Add the detergent hose and filter to complete the system.
• Fully rebuildable — every wear component is individually available through AR North America’s nationwide distribution network.

Key Specifications

JRV35G20D-F8 Technical Details at a Glance

• Flow Rate: 3.5 GPM
• Maximum Pressure: 2,000 PSI (138 bar)
• Cleaning Units: 7,000 (GPM x PSI)
• Operating Speed: 3,400 RPM
• Power Required: 4.5 HP minimum
• Pump Type: JRV Series axial radial — integrated unloader, fully rebuildable
• Head Material: Brass Head
• Pistons: Ceramic
• Connecting Rods: Aluminum
• Shaft/Flange: 5/8″ I.D. hollow shaft — F8 — NEMA 56C electric motor direct mount
• Bore Diameter: 12mm / Stroke: 10.7mm
• Inlet: 3/8″ F
• Outlet: 3/8″ M
• Oil Capacity: 5.43 oz
• Weight: 8.81 lbs
• Max Temperature: 140 degrees F
• Easy Start: Not included on this model
• Integrated Unloader: Adjustable — set working pressure to match application requirements
• Chemical Injector: Fixed 12% — integrated; detergent hose and filter sold separately
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 2-year limited warranty — US-based coverage through Annovi Reverberi North America

JRV35G20D-F8 Typical Applications

• Stationary electric motor-driven wash stations — F8 NEMA 56C direct motor mount at 3,400 RPM for fixed wash bay, industrial cleaning, and commercial wash station installations
• OEM equipment builds and replacements — integrated pump-and-unloader format with AR North America nationally stocked parts simplifies OEM design and field replacement
• Residential and light commercial cleaning programs — 7,000 cleaning units with integrated pressure regulation for consistent output
• Complete the chemical delivery system — add the DETHOSE-FIL6X 6ft Detergent Hose with Red Filter to complete downstream chemical delivery at the JRV35G20D-F8 injector port.

2-Year US Warranty, National Parts Availability, and Wholesale Pricing

JRV35G20D-F8 — JRV Series. Brass Head. Integrated Unloader. Backed for Two Years.

The JRV35G20D-F8 is protected by Annovi Reverberi’s 2-year limited warranty through the US-based warranty and service network administered by AR North America. Every wear component is stocked nationally through authorized AR North America distribution channels. OEM builders, electric motor system integrators, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the JRV35G20D-F8 and the complete WSHPWR pump package lineup.

7,000 Cleaning Units. 2,000 PSI. 3.5 GPM. Brass Head. 3,400 RPM. Integrated Unloader. Fixed 12% Injector. F8 NEMA 56C Electric. 2-Year US Warranty.

Annovi Reverberi JRV Series. Axial Radial. 3,400 RPM. Integrated Unloader. Fully Rebuildable. Nationwide Service.

The JRV35G20D-F8 is the complete JRV integrated axial solution for electric motor-powered pressure washing at 2,000 PSI and 3,400 RPM — brass head, ceramic pistons, aluminum connecting rods, integrated adjustable unloader, and fixed 12% chemical injector in one compact factory-assembled pump body. Two-year US warranty. Nationwide AR North America service centers. Fully rebuildable.
