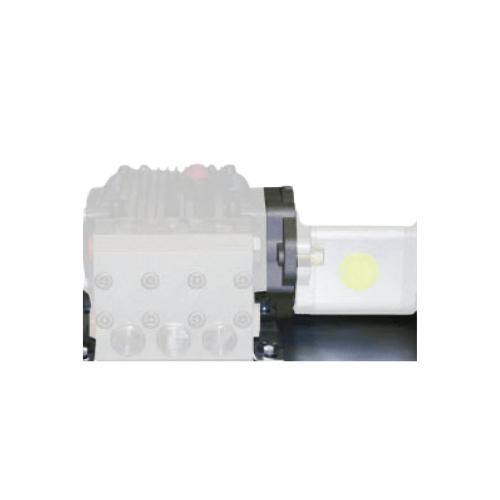

HYDXMSPACER Spacer Kit | HYD XM Pump Motor Assembly

HYDXMSPACER Spacer Kit | HYD XM Pump Motor Assembly

• HYDXMSPACER is a factory-style replacement spacer kit engineered for
  HYD-XM hydraulic pressure-washer assemblies.
• Restores the precise motor-to-pump stand-off so the hydraulic drive motor and
  Annovi Reverberi (AR) XM-series triplex pump run on a true shared centerline.
• Correct spacing keeps the flexible coupling engaged on the intended faces, preserves coaxial alignment,
  and maintains clearance for the coupling guard, unloader block, and hose sweeps.
• Results in smoother running, less vibration, lower bearing and seal loads, and predictable service life—
  ideal for fleet operators and OEMs who need consistent, repeatable builds.

When to Use HYDXMSPACER

• After motor, pump, coupling, or frame repair that may have changed the face-to-face dimension.
• During a major teardown or pump upgrade on a HYD-XM assembly.
• Whenever you see symptoms of stand-off drift:
  • Fresh coupling dust or powdered elastomer inside the guard.
  • Abnormal heat at the coupling or guard interference.
  • New vibration at known-good speeds.
• Returning the assembly to the original factory stand-off removes guesswork and helps protect
  the driveline from axial thrust and side-loading that shorten pump and motor life.

Installation Highlights

• Verify the build’s HYDXMSPACER Spacer Kit target face-to-face dimension between motor and pump.
• Install the included spacers between the motor and mount as specified, then confirm coupling gap
  and key engagement.
• Torque mounting hardware in a cross pattern, run the machine, then recheck fasteners
  and vibration.
• Before returning to service:
  • Confirm the guard fits without rubbing.
  • Ensure suction, pressure, and bypass hoses sweep naturally with no tight bend radii near the unloader and relief valve.
• The restored geometry speeds single-tech maintenance and supports clean warranty
  documentation for fleets.

Hydraulic Motor Context HYDXMSPACER Spacer Kit (HYD-XM Packages)

• HYD-XM packages typically use a low-speed/high-torque (LSHT) hydraulic motor
  (brands in the field commonly include Marzocchi, Parker, and Danfoss).
• Motors are selected for calm trigger cycling and steady pressure at wash-down speeds.
• Typical hydraulic ports:
  • SAE-12 ORB (3/4″) for pressure and return.
  • SAE-8 ORB (1/2″) case drain when required by the motor build.
• Best practices:
  • Observe A/B port orientation for correct rotation.
  • Route any case drain above reservoir oil level to prevent aeration.
  • Size hose IDs generously and respect bend radii to avoid restriction and heat.

Pump Interface & Plumbing (AR XM Series)

• Water end is always Annovi Reverberi—industry leader in pump quality since 1958.
• Typical XM-class manifold ports:
  • 1/2″ F-BSPP inlet
  • 3/8″ F-BSPP discharge
  • Adapters to NPT are readily available.
• Keep the suction run short, straight, and oversize from a flooded source.
• Use an anti-collapse suction hose and a coarse inlet strainer to protect volumetric
  efficiency and prevent cavitation.
• Match the unloader to the XM duty class and include:
  • A correctly sized high-pressure relief valve.
  • A glycerin-filled pressure gauge for commissioning and diagnostics.
  • A thermal relief valve on the bypass loop for extended gun-closed operation.

Why Spacer Alignment Matters

• HYDXMSPACER Spacer Kit Precision stand-off directly controls coupling engagement and motor–pump alignment.
• If the motor sits too close or too far:
  • The coupling carries load on unintended faces and generates excess heat.
  • Powdered elastomer accumulates inside the guard and on the frame.
  • Side-loads transfer into pump crankcase and motor bearings, accelerating wear.
• HYDXMSPACER returns the assembly to blueprint geometry, helping it run cooler,
  quieter, and longer—especially on compact skids where hose paths and guard clearances are tight.

Typical Applications

• Mobile wash skids and service trucks.
• Enclosed vans and plant-floor carts.
• Municipal and DOT fleets, wastewater and sanitation rigs.
• Heavy-equipment yards and rental turn-backs.
• Contractor systems and OEM builds using hydraulic-driven AR XM triplex pumps.
• Any installation where a hydraulic motor drives an AR XM pump and
  factory alignment and uptime are priorities.

Ownership, Warranty & Support

• Pump manufacturer: Annovi Reverberi, engineered and built in Modena, Italy.
• AR pumps ship with crankcase oil installed, plus an easy-view sight glass and
  vented dipstick to speed pre-start checks and routine PM.
• Pump coverage: 5-year limited, conditional warranty.
• Coverage requires:
  • Proper hydraulic and water-side installation.
  • Correct filtration and lubrication.
  • Operation within published pressure, speed, and temperature limits.
  • Understanding that seals and valves are normal wear items (consumables).
• For model-specific XM data, consult the current AR North America catalog or
  the Annovi Reverberi industry series information.
