SXMV35G32D24CIG Triplex Pump | 3.5 GPM 3200 PSI

SXMV35G32D24CIG | 3.5 GPM 3200 PSI Gas Engine Pump with Gymatic Unloader, 1 in. Hollow Shaft

The SXMV35G32D24CIG is an Annovi Reverberi SXM triplex plunger pump rated 3.5 GPM at 3,200 PSI at 3400 RPM, with a Gymatic unloader already installed. It slides onto a 1 in. engine shaft and bolts to the engine face, so the machine is ready to plumb with one part.

The SXM has a shorter distance between its inlet and outlet ports than other AR pumps, so a standard Gymatic will not line up. This pump comes fitted with the special SXM version of the Gymatic, rated to 4,000 PSI, which sits well above the pump’s 3,200 PSI working pressure. If you are replacing the unloader later, order the SXM version, not a standard Gymatic 3/B.

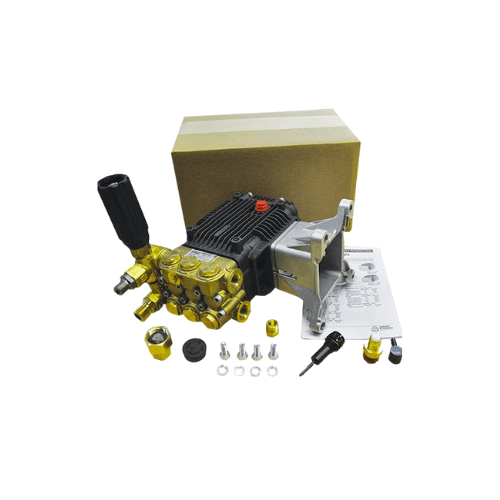

What’s in the Box

• SXMV35G32D24CIG pump with F24 engine flange
• SXM-version Gymatic unloader, installed
• Crankcase oil, pre-filled at the factory
• Vented dipstick. The pump ships with a shipping plug in the oil port. Swap in the dipstick before the first start.
• Engine mounting bolts and lock washers
• Operation manual and parts schematic
• 5-year Annovi Reverberi warranty

The shaft key is not included. It comes with your engine, and its size is set by the engine maker.

Will It Fit My Machine?

• Shaft: your engine has a 1 in. keyed horizontal shaft.
• Mount: the engine face matches the F24 flange bolt pattern.
• Engine size: 389cc to 420cc (13 HP class).
• Hose and accessories: every hose, fitting and nozzle must be rated for 3,200 PSI.

Not sure? Text a pump specialist at (505) 226-6061 with a photo of your engine tag and we’ll confirm the fit.

What Else You’ll Need

• Thermal relief valves and inlet filters: the thermal valve protects the pump during long bypass periods, and the filter keeps debris out of the valves.

SXMV35G32D24CIG Specifications

• Model: SXMV35G32D24CIG
• Flow: 3.5 GPM
• Max Pressure: 3,200 PSI
• Speed: 3400 RPM (engine speed)
• Gas Engine Size: 389cc to 420cc
• Shaft: 1 in. hollow
• Mount: F24 engine flange
• Unloader: SXM-version Gymatic, rated 4,000 PSI, installed
• Plungers: Ceramic
• Max Water Temperature: 140°F
• Weight: 16 lbs
• Warranty: 5 years
• Brand: Annovi Reverberi

Shipping: Usually ships via UPS in 1 to 3 days.
