BIXC060P400 Bolondi Air Motor Tank Head | 400 Bar

BIXC060P400 Bolondi Air Motor Tank Head | 400 Bar

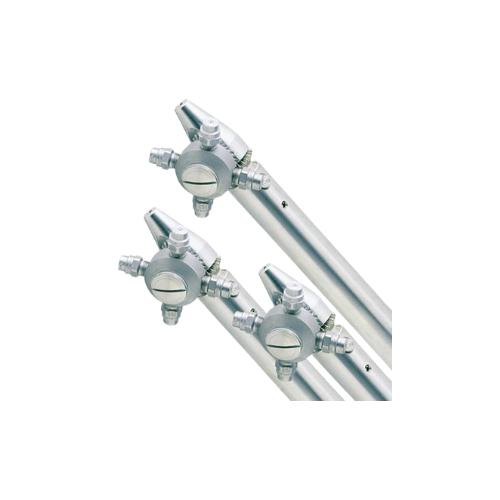

• Model: BIXC060P400 – Bolondi High-Pressure Cleaning Head – Air Motor, Stainless Steel Build.
• Type: Pneumatic, air motor–driven rotary jet cleaning head for extreme-duty industrial applications.
• Pressure Rating: Up to 400 bar (≈5,800 PSI) with flow capacity up to 16 GPM (60 L/min).
• Construction: Fabricated entirely from AISI 316 stainless steel for corrosion resistance and sanitary performance.
• Use Cases: Tanks, reactors, silos, and vessels in chemical plants, refineries, offshore rigs, paint & coating facilities, and mobile service fleets.
• Safety: Intrinsically safe, non-electric design ideal for ATEX-classified and explosion-sensitive environments.

Pneumatic Power for Hazardous Environments

• Air motor drive: BIXC060P400 No electrical components, eliminating spark risk in volatile or solvent-rich atmospheres.
• Explosion-proof operation: Fully pneumatic system supports strict ignition-control requirements in ATEX zones.
• Controlled rotation: Compressed-air drive maintains steady nozzle movement even when water flow fluctuates.
• Remote compatibility: Ideal for offshore rigs, mobile tank-cleaning trucks, and field wash stations where compressed air is readily available.
• Low maintenance: Simplified drive mechanism reduces wear compared with electric motors and complex gear trains.

BIXC060P400 High-Pressure 360° Rotary Cleaning

• Ultra high pressure: Operates up to 400 bar (≈5,800 PSI) for deep, aggressive cleaning.
• High flow: Handles up to 16 GPM (60 L/min) to support heavy-duty washing and fast debris removal.
• Full 360° coverage: Rotating stainless steel nozzle arms create a dense spray pattern that reaches every interior surface.
• Penetrates heavy residues: Effective on cured coatings, hardened grease, biofilms, mineral scale, and chemical deposits.
• Efficient cleaning: High-impact jets shorten cleaning cycles, reduce downtime, and minimize reliance on aggressive detergents.

Rugged Stainless Steel Construction

• Material: AISI 316 stainless steel body and components for maximum corrosion resistance.
• Chemical tolerance: Withstands caustic wash agents, solvents, sanitizers, and CIP detergents.
• Thermal stability: Built to handle hot wash cycles and frequent temperature swings.
• Precision machining: Balanced rotary arms reduce vibration and ensure smooth operation at high pressure.
• Long service life: Designed for consistent performance across thousands of aggressive cleaning cycles.

BIXC060P400 Bolondi Air Motor Tank Head | 400 Bar

Applications

• Chemical & solvent tanks: Removes hardened residues and coatings in volatile atmospheres.
• Oil & gas facilities: Safe tank and vessel cleaning on offshore rigs, refineries, and petrochemical sites.
• Food & beverage: ATEX-safe sanitation for sugar, alcohol, oil, and flavoring tanks.
• Pharmaceutical & cosmetics: Compliant cleaning in solvent-based and explosion-sensitive production lines.
• Paint & adhesives: Strips cured films and viscous coatings without manual scraping.
• Mobile tank cleaning: Ideal for IBCs, transport containers, and field-based industrial cleaning services.

Benefits & Differentiators

• Air motor driven: Intrinsically safe solution for ATEX and explosion-sensitive zones.
• Ultra high pressure: 400 bar rating delivers heavy-duty cleaning performance for the toughest residues.
• Full 360° spray coverage: Ensures deep cleaning of welds, seams, and complex tank geometries.
• Durable stainless build: Long life in corrosive, caustic, and high-temperature environments.
• Flexible integration: Suitable for CIP loops, fixed installations, and mobile cleaning rigs.
• Built to order: Engineered to customer specifications with typical lead times of ≈8 weeks by air freight or ≈14 weeks by ocean cargo.

Why Choose the BIXC060P400?

• Safety-first design: Pneumatic drive eliminates electrical ignition risks in hazardous zones.
• Maximum cleaning power: 5,800 PSI rotary jets tackle the most stubborn industrial residues.
• Sanitary and robust: All-316 stainless steel body supports hygienic operation and extreme durability.
• Versatile deployment: Performs reliably in CIP systems, mobile service rigs, and fixed industrial installations.
• Operational efficiency: Shorter cleaning cycles, reduced manual labor, and improved uptime in the harshest applications.
