BIPW063LC Bolondi Rotary Cleaning Head | 2900 PSI

Overview

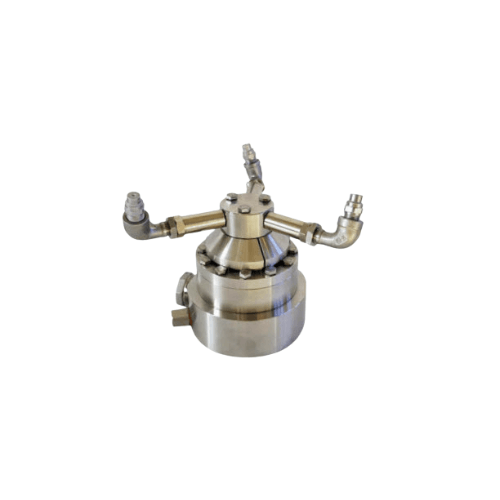

• The Bolondi BIPW063LC Rotary Cleaning Head is a high-flow rotary jet cleaner
  designed for professional car wash systems, industrial portals, and fleet wash stations.
• Built with Italian precision from one of the global leaders in rotating nozzle technology,
  it is engineered to handle continuous-duty cycles in demanding cleaning environments.
• Operates from 435 to 2,900 PSI (30–200 bar) to deliver aggressive cleaning
  force with smooth, balanced rotation.
• Provides consistent, full-coverage cleaning that removes dirt, grease, scale, and road film
  quickly and efficiently in automated bays and high-volume industrial wash rigs.

How It Works

• Features a self-powered water-motor drive system that converts incoming water
  pressure into rotary motion.
• Multiple spray nozzles spin to deliver 360° high-velocity jets, eliminating the
  need for external motors and reducing system complexity.
• 360° coverage: Complete spray pattern ensures no blind spots on the vehicle or equipment.
• Self-contained design: No gears, belts, or motors—rotation is powered entirely by water flow.
• Optimized flow compatibility: Handles higher flow rates than the BIPW060LC, ideal for large wash
  portals and industrial-scale applications.

Construction & Materials

• Engineered for extreme conditions: Bolondi designs its rotary heads for harsh,
  continuous-use environments, and the BIPW063LC is no exception.
• 316L stainless steel: Delivers maximum resistance to corrosion, detergents, road salts,
  and aggressive cleaning chemicals.
• Aluminum alloy body: Reduces overall weight so the head integrates smoothly into automated
  wash systems without overloading mechanical arms or gantries.
• Precision machining: Internal rotors are balanced for smooth, vibration-free operation,
  even under prolonged use at maximum pressure.
• Seal protection: Durable sealing system keeps water where it belongs, reducing wear
  and extending service life.
• Combination of premium materials ensures long-term durability and minimal downtime in
  high-throughput commercial wash facilities.

Performance Specs (Quick Reference)

• Operating Pressure: 435–2,900 PSI (30–200 bar)
• Max Flow Rate: Supports high-flow configurations for portal and underbody systems
• Coverage: 360° full-spray rotary action
• Materials: 316L stainless steel and aluminum alloy
• Drive System: Internal water-powered motor
• Typical Applications: Automated portals, underbody systems, industrial wash bays

Benefits & Differentiators

• Automated cleaning efficiency: Ideal for drive-thru and portal systems where
  consistency and speed are critical.
• Heavy-duty design: Handles long operating hours and aggressive chemicals without degradation.
• Higher flow stability: Optimized for higher flow compared with smaller models like the BIPW060LC.
• Corrosion resistance: Withstands constant exposure to detergents, degreasers, and road salt.
• Energy efficient: Powered by water pressure alone—no auxiliary power sources required.
• Built to order: Engineered to customer specifications; typical lead time is ~8 weeks by air freight
  or ~14 weeks by standard cargo.

Applications

• Automotive: Drive-thru car washes, automated portals, and underbody cleaning stations.
• Fleet Maintenance: Buses, trucks, rental fleets, and municipal vehicles.
• Industrial: High-throughput wash bays for equipment, machinery, and plant vehicles.
• Specialty Cleaning: Heavy construction vehicles, mining trucks, and agricultural equipment.

Setup & Operation

• Connect the BIPW063LC to a professional-grade pressure washer or automated wash system.
• Set operating pressure within the 435–2,900 PSI range for optimal rotation and cleaning.
• Select nozzle configuration based on system flow rate and cleaning requirements.
• Integrate into automated gantries or underbody rails for continuous rotary action.
• Flush the unit after each cycle to maintain seals and protect internal components.

What’s Included

• Bolondi BIPW063LC stainless steel/aluminum rotary cleaning head
• Customer-specified nozzle configuration (typically 2–4 jets)
• Installation and maintenance documentation to support proper setup and service

Notes

• Professional integration only: Designed for car wash and industrial systems—not recommended
  for consumer-grade washers.
• Chemical compatibility: Works with a wide range of detergents and sanitizers; always confirm
  compatibility for extended use.
• Maintenance intervals: Depend on flow rate, chemical exposure, and hours of operation—inspect
  seals and bearings periodically for best performance.
