AR51248 | VB80/400 Unloader, 5800–6500 PSI, Stainless

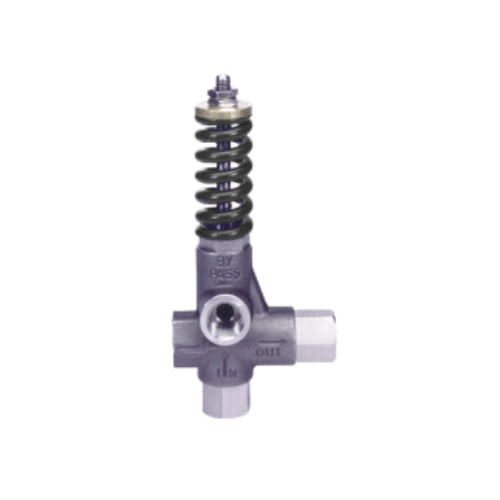

AR51248 – VB80/400 Stainless Steel Unloader Valve – 5800 PSI, 21 GPM, 1/2″ NPT

Overview

AR51248 is the VB80/400 stainless steel trapped-pressure unloader valve, manufactured in Italy by P.A. S.p.A. and supplied under Annovi Reverberi part number AR51248 (PA MPN 60.0430.50). Rated at 5,800 PSI (400 bar) with a maximum permissible pressure of 6,500 PSI (450 bar) and a rated flow of 21 GPM (80 L/min), this valve is built for the upper end of professional and industrial high-pressure cleaning.

In any high-pressure system, the unloader is the component standing between your pump and a costly failure. The VB80/400 manages intense pressure loads while holding a stable working setting through frequent trigger cycling. That makes the AR51248 a core specification item for contractors, OEM builders, and facility maintenance teams running near the limits of conventional pressure washer equipment.

Verified Specifications

• Rated pressure: 5,800 PSI / 400 bar
• Max. permissible pressure: 6,500 PSI / 450 bar
• Min. adjustable pressure: 580 PSI / 40 bar
• Rated flow: 21 GPM / 80 L/min
• Max. temperature: 195 °F / 90 °C (short duration); 140 °F / 60 °C continuous duty
• Body material: AISI 303 stainless steel
• Ports: Dual 1/2″ NPT female inlet, 1/2″ NPT female outlet, 1/2″ NPT female bypass
• Spring: Black (400 bar range)
• Weight: 47 oz / 2.93 lb / 1,330 g
• MPN: 60.0430.50 — also cross-referenced as General Pump YU2158 and CAT 7536

Stainless Steel Construction for Chemical Duty

The AR51248 uses a 303 stainless steel body, the standard grade for high-pressure valve construction because it combines the mechanical strength required at 400 bar with clean machinability for precision internal components. Against brass, the advantage is decisive: brass dezincifies, pits, and softens when exposed to caustics, degreasers, and solvent-based cleaners, while 303 stainless holds dimensional stability and sealing integrity through the same exposure.

This makes the valve well suited to industrial wash bays, chemical cleaning operations, oilfield and mining equipment, and trailer- or truck-mounted contractor rigs where vibration and outdoor exposure are constant. For applications involving continuous saltwater immersion or aggressive process chemistry, a 316 stainless body with Viton seals is the more appropriate specification — contact our technical team and we will match the grade to your fluid.

1/2″ NPT Connections with Dual Inlet

Inlet, outlet, and bypass ports are all 1/2″ NPT female, matching North American high-pressure plumbing without adapters. The valve carries a double connection on the inlet, giving installers two feed options and real flexibility when routing plumbing on a tight skid or manifold.

Confirm your system uses NPT before ordering. The same valve is produced in a BSP configuration under a separate part number, and NPT and BSP threads are not interchangeable — they will start together and then leak under pressure.

Trapped-Pressure Bypass Operation

This is a trapped-pressure unloader, and understanding that behavior matters. During spraying, the valve regulates system pressure to your setting. When the trigger is released, flow is diverted to bypass and bypass pressure drops, while pressure remains trapped in the discharge line. The gun stays charged and fires instantly on the next pull, with no lag and no pressure surge.

That trapped pressure is normal operation, not a fault. It also means the discharge line must be relieved before any hose, gun, or fitting is disconnected for service. Managed correctly, the AR51248 protects pump seals, plungers, and valves from the heat buildup that destroys equipment during long bypass periods.

Engineered for High-Cycle Operation

Precision-machined internals deliver consistent regulation across thousands of cycles without sticking or drift, and a hexagonal check valve design resists jamming. Pressure is set with an adjustable locknut and holds reliably through variable flow and long operating sessions.

Routine service is straightforward: seals and wear components are replaceable in the field, which keeps labor time and downtime low for fleet operators and service shops running these valves at duty.

Ideal Use Cases

• Industrial wash bays running detergents, degreasers, and chemical cleaners
• Contractor rigs — trailer- and truck-mounted units exposed to weather and vibration
• Chemical cleaning facilities requiring stainless compatibility and stable regulation
• Oilfield and mining equipment cleaning in abrasive, high-temperature conditions
• Surface preparation — paint removal and hydro-blasting at 5,000+ PSI
• OEM system builds specifying a 21 GPM stainless unloader at 400 bar

Why Choose the AR51248?

Where brass unloaders fail early under chemical exposure and sustained high pressure, the AR51248 VB80/400 delivers a stainless solution with published, verifiable ratings and a parts network behind it. Specify it with confidence when your pump output falls at or below 21 GPM and 5,800 PSI, and when downtime costs more than the valve.
