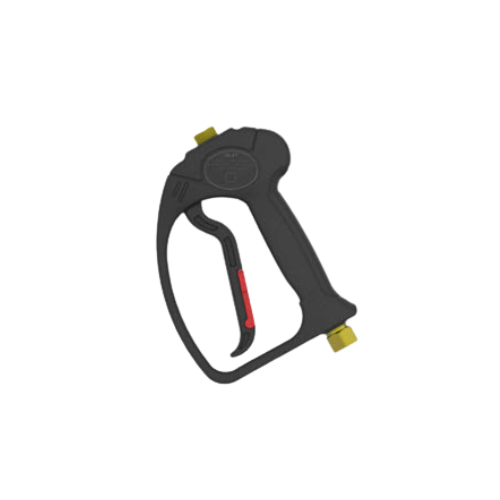

TL40 | Inline Trigger Control, 10.6 GPM 5800 PSI

Overview

The TL40 Inline Trigger Control is a heavy-duty, professional-grade spray gun
designed for extreme-pressure and high-capacity cleaning applications. Rated for
10.6 GPM, 5,800 PSI, and temperatures up to
320°F, it is ideal for fleet washing, agricultural cleaning, industrial
degreasing, and other high-output environments. Its inline design routes high-pressure water
through a central, valve-controlled axis, reducing turbulence and pressure loss while improving
ergonomics and operator comfort during long work sessions.

Built for Tough Jobs in Harsh Environments

• Rated for 320°F, making it fully compatible with hot water and steam-based
  cleaning systems for degreasing, sanitizing, and descaling.
• Internal components are manufactured from high-grade stainless steel to resist
  corrosion, abrasion, and caustic cleaning chemicals.
• Impact-resistant outer housing protects the valve body and internals from drops, bumps, and
  harsh job-site conditions.
• Seals and moving parts are selected for longevity under frequent high-pressure cycling, making
  the TL40 suitable for demanding, continuous-duty applications.

High-Volume Flow Meets Operator Comfort

• Inline trigger design promotes a natural hand and wrist position, helping to
  reduce operator fatigue compared to traditional pistol-grip guns.
• Central flow path minimizes internal friction and turbulence, maintaining maximum throughput
  with minimal pressure drop.
• Smooth, progressive trigger pull allows precise modulation of water output—from full-power
  blasting to controlled rinsing.
• Ergonomically balanced for extended use in high-flow, high-pressure applications.

Technical Specifications

• Max Flow Rate: 10.6 GPM – built for large-scale cleaning and high-volume rinsing.
• Max Pressure: 5,800 PSI – suitable for aggressive washing, degreasing, and descaling.
• Max Temperature: 320°F – compatible with hot water and steam cleaning systems.
• Body Construction: High-impact composite housing with stainless steel internals.
• Trigger Mechanism: Inline style with low-resistance, smooth pull.
• Inlet Connection: 3/8″ NPT female.
• Outlet Connection: 1/4″ NPT female.
• Orientation: Inline flow design for ergonomic operation and efficient performance.
• Weight: Lightweight for its class to help minimize operator fatigue.

Key Features & Benefits

• Ergonomic inline design reduces hand and wrist strain during long cleaning
  sessions.
• Stainless steel internals provide maximum corrosion resistance and long-term
  durability in harsh chemical and hot-water environments.
• High-temperature rating to 320°F supports steam and hot-water cleaning for
  sanitization and tough grease removal.
• High flow capacity (10.6 GPM) allows rapid coverage of large surface areas and
  multi-stage cleaning processes.
• Extreme pressure capability (5,800 PSI) makes it suitable for heavy-duty
  stripping and industrial degreasing.
• Versatile connections – 3/8″ F inlet × 1/4″ F outlet for compatibility with
  professional hoses, lances, and accessories.
• Field-proven design withstands frequent high-pressure cycling in demanding industrial and
  commercial settings.

Applications

• Fleet washing: Trucks, trailers, buses, and transport vehicles requiring fast,
  thorough cleaning.
• Agricultural equipment cleaning: Tractors, sprayers, harvesters, and farm
  machinery covered in mud, manure, and residues.
• Industrial degreasing: Removal of oil, carbon buildup, and contaminants from
  machinery, engines, and factory equipment.
• Food & beverage sanitation: Cleaning processing lines, meatpacking areas,
  and USDA-compliant facilities when paired with proper detergents and procedures.
• Municipal & public works: Sidewalks, park equipment, city vehicles, and
  maintenance operations.
• Construction cleanup: Removing concrete splatter, dust, coatings, and paint
  from job-site tools and heavy equipment.

Why Choose the TL40?

• Combines maximum throughput, extreme pressure capability, and
  high-temperature tolerance in a single, professional-grade trigger control.
• Inline ergonomics and low-resistance trigger reduce operator fatigue and improve control in
  high-flow applications.
• Stainless steel internals and impact-resistant housing ensure long service life with minimal
  downtime.
• Ideal for mobile rigs, plant washdown systems, and industrial cleaning where reliability and
  uptime are critical.
• A professional tool engineered for operators who cannot afford failure, fatigue, or unnecessary
  maintenance interruptions.
