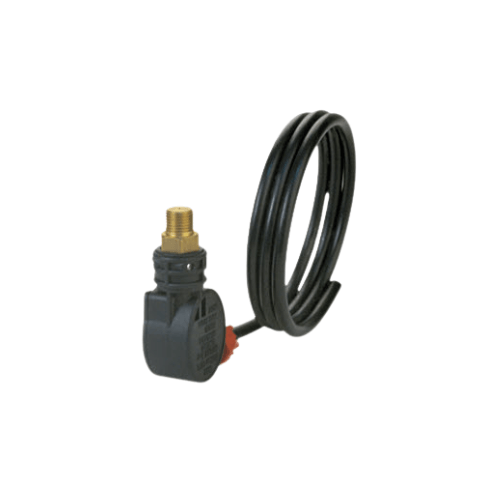

The AR AL690 Mini Pressure Switch 1/4 in Male is a compact, precision-calibrated control
device engineered by Annovi Reverberi to automate pump operation based on line pressure. Threaded with a
1/4-inch male connection for a tight, leak-resistant fit, it mounts directly on pump heads,
manifolds, or control blocks and continuously monitors system pressure to start the motor when demand appears
and shut it down once target pressure is restored.

By matching pump run time to actual flow needs, the AL690 helps stabilize pressure, conserve energy, and
protect seals, valves, hoses, and gauges from over-pressurization in professional cleaning systems.

Why Automatic Pressure Control Matters

Protection, Efficiency & Consistency

• Automatic start/stop: engages the pump only when pressure drops below the cut-in point and stops it when set pressure returns.
• Reduced mechanical stress: limits unnecessary runtime that overheats oil, wears bearings, and shortens seal life.
• Stable system pressure: smooths out saw-toothing at the trigger for a more consistent spray pattern and better chemical draw.
• Energy savings: pumps and motors only run when needed, lowering power consumption on electric and gas units.

Construction & Design

Compact Brass Body with Calibrated Internals

The AL690 uses a robust brass housing for corrosion resistance and dimensional
stability in wet, detergent-rich environments. Inside, a tuned diaphragm and contact assembly provide the
sensitivity and repeatability needed for accurate switching across thousands of cycles.

• 1/4 in male thread: tight, leak-resistant connection to pump heads or manifolds.
• Fixed, non-swivel body: preserves alignment under vibration and prevents micro-movement at the seal.
• Shielded contact chamber: protects the electrical section from moisture, fines, and splash.
• Mini form factor: ideal for tight control panels, compact electric units, and mobile skids.

Installation & Commissioning

Simple Setup for Reliable Control

• Mount the switch to a clean, appropriate 1/4 in port on the pump head, manifold, or control block.
• Tighten to the specified torque to secure the seal without distorting threads or seats.
• During commissioning, verify that cut-in and cut-out pressures occur within the intended range.
• Confirm leak-free operation and proper motor response through a few start/stop cycles with the trigger.

Once installed and verified, the AL690 operates automatically, eliminating manual toggling and nuisance
run-on after trigger release.

Operation & System Behavior

Smoother Performance in Daily Use

In service, the AL690 acts as a guardrail for pump health. By responding quickly to pressure changes it:

• Helps prevent dry running after brief supply interruptions or closed-gun conditions.
• Tempers water hammer by avoiding overshoot and abrupt spikes.
• Coordinates with unloader valves so pressure returns to setpoint smoothly after trigger pulls.
• Improves operator experience: a calmer gauge needle, more predictable trigger feel, and fewer system drips.

These effects are especially noticeable on compact electric and small gas units, where stable control improves
performance with downstream injectors and precision nozzles.

Maintenance & Troubleshooting

Low Upkeep, High Reliability

• Perform quick visual checks during routine shutdowns to confirm threads are clean and the housing is undamaged.
• Keep surrounding plumbing free of leaks and vibration to preserve calibration and seal integrity.
• Use the switch as a diagnostic checkpoint when investigating pressure swings, filter restrictions, or unloader mis-adjustments.

Each AL690 is built to Annovi Reverberi standards and verified for dimensional precision, switch accuracy,
and leak resistance before leaving production, providing reliable performance from installation to rebuild.

Typical Applications

• Residential and light commercial pressure washer systems with automatic on/off control.
• Fixed wash bays in automotive, fleet, and facility maintenance environments.
• Compact electric and small gas skids where space, efficiency, and component protection are priorities.
• Retrofit upgrades on legacy machines to add modern, pressure-based pump automation.

AL690 Mini Pressure Switch | 1/4 in Male, Compact AL Series

The AR AL690 Mini Pressure Switch 1/4 in Male delivers reliable, automatic, pressure-based pump
control in a compact brass package. By starting the pump when demand appears and shutting it down when it does not,
it stabilizes pressure, conserves energy, and protects critical seals and valves—helping professional cleaning
systems run efficiently, safely, and predictably shift after shift.
