7P9G8700-50HP-V Pressure Washer | 7.9GPM 8700PSI VFD

7P9G8700-50HP-V Industrial Electric Pressure Washer | 7.9 GPM | Max Pressure 8700 PSI | 50 HP VFD

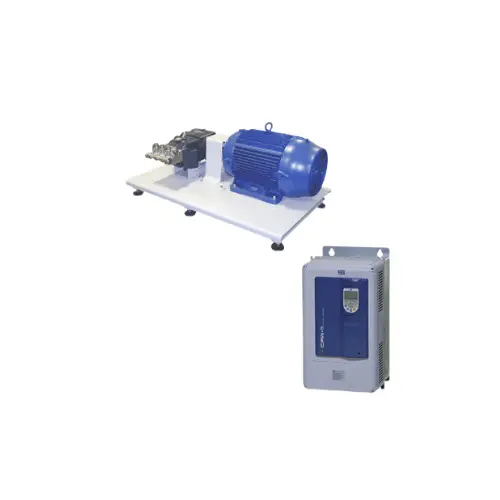

The 7P9G8700-50HP-V is a powerful industrial electric pressure washer that delivers a maximum pressure of 8700 PSI at 7.9 GPM, powered by a 50 HP motor and an Annovi Reverberi RTP 30.60N pump with a Variable Frequency Drive (VFD). This model offers the highest pressure in the WSHPWR lineup, ideal for tough tasks like coating removal and surface preparation, while maintaining a compact water footprint for confined spaces. The direct-coupled shaft drives the pump, with the VFD enabling precise control over motor RPM and flow rate, surpassing fixed-speed starter systems.

The RTP 30.60N runs at its full nameplate 1000 RPM, delivering 7.9 GPM at 8700 PSI with the 50 HP motor loaded to 94 percent — sole-source ultra-high-pressure performance. The integrated VFD provides soft starts, adjustable accel/decel ramps, and stored Wash, Prep, and Rinse profiles so operators achieve consistent results every shift without nozzle swaps or manual pressure adjustments. Fully electric and zero-emission, the 7P9G8700-50HP-V is purpose-built for enclosed industrial bays, production cells, and facilities where engine platforms are not practical or permitted.

7P9G8700-50HP-V Performance Specifications

Max Pressure, Flow & Power at a Glance

• Max Pressure: 8700 PSI — the rated maximum working pressure of the 7P9G8700-50HP-V system at full VFD-controlled duty output
• Max Flow Rate: 7.9 GPM — controlled ultra-high-pressure output for efficient carry-off and tight containment at 8700 PSI max pressure
• Motor: 50 HP — sized to the RTP duty demand at 8700 PSI max pressure with margin for hose runs, regulation, and accessories

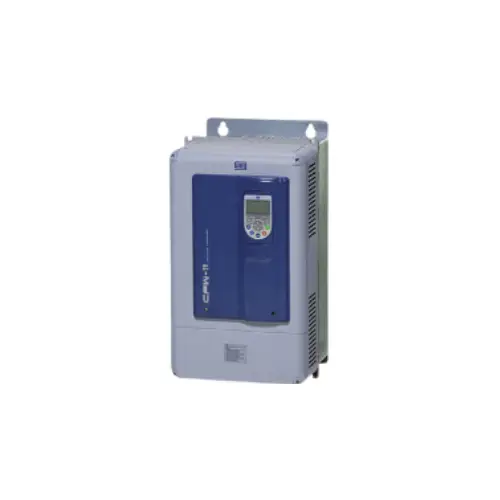

• Drive: Variable Frequency Drive (VFD) integrated — the VFD controls motor RPM to set flow rate; programmable ramps, stored profiles, soft starts, and fine RPM control

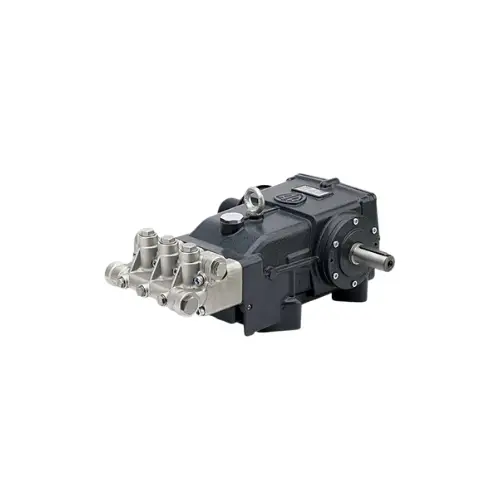

• Pump: Annovi Reverberi RTP 30.60N nickel-plated brass solid-shaft triplex plunger pump — direct-drive, rigid coupling configuration for precise alignment and reliable power transfer at 8700 PSI max pressure
• Electric Brake Horsepower: 7.9 GPM × 8700 PSI ÷ 1457 ≈ 47.2 EBHP — the 50 HP motor operates at approximately 94 percent load at rated 8700 PSI max pressure
• Configuration: Fully enclosed electric — zero exhaust emissions, low noise, indoor-rated for production and industrial environments

Why 7.9 GPM at 8700 PSI Max Pressure

7P9G8700-50HP-V Duty Point — Matched Pump and Motor for Value

• 8700 PSI max pressure for the toughest tasks: delivers the concentrated jet energy needed to break coatings, scale, and compacted deposits that lower-pressure systems cannot remove — the highest max pressure in the WSHPWR lineup
• 7.9 GPM for tight containment: the controlled flow limits splash-back and runoff while carrying loosened material away after 8700 PSI max pressure impact — ideal for enclosed cells with limited drainage
• Economically matched pairing: the RTP 30.60N pump and 50 HP motor are selected to fully utilize both, delivering 8700 PSI max pressure without paying for capability the duty point cannot use
• 50 HP motor at 94 percent load: electric brake horsepower demand at 8700 PSI max pressure is approximately 47.2 EBHP — the motor operates in an efficient, productive range with appropriate margin for real-world operating conditions
• VFD for profile-based repeatability: stored Wash, Prep, and Rinse setpoints lock RPM and pressure to facility SOPs so crews get the same result every shift at 8700 PSI max pressure without nozzle changes or manual adjustments

RTP Pump Architecture

Annovi Reverberi RTP-Series — Built for 8700 PSI Max Pressure Industrial Service

• Nickel-plated brass manifold head: enhanced corrosion resistance and scale mitigation versus plain brass for industrial washdown at 8700 PSI max pressure — appropriate for standard water chemistry and plant-approved detergents
• Ceramic plungers: minimize heat transfer at the packing interface — extending water-seal life significantly during long-duration cycles and frequent start/stop operation at the 7P9G8700-50HP-V’s rated maximum pressure
• Precision stainless valves and oversized crank bearings: maintain smooth, low-pulsation hydraulics across long hose runs and tooling at 8700 PSI max pressure — protecting downstream accessories and hose assemblies from pressure cycling fatigue
• Dual-packing seal design: provides redundancy and sealing stability at 8700 PSI max pressure — with proper inlet conditions and filtration these pumps routinely log thousands of trouble-free operating hours between major service events

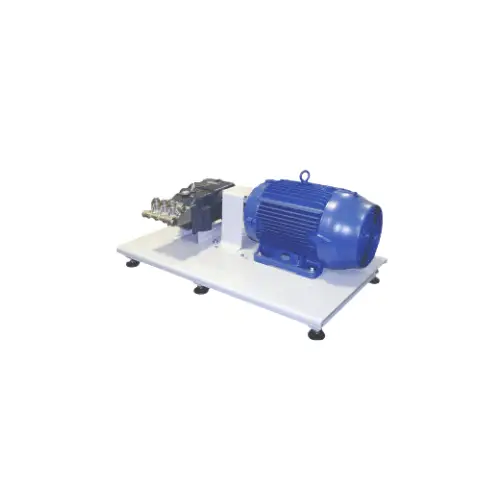

• Guarded rigid coupling: the motor drives the pump through a direct-coupled shaft — preserving motor-to-pump alignment, reducing vibration transmission, and protecting bearings and seals for high MTBF and predictable service intervals at sustained 8700 PSI max pressure output
• Service-forward frame design: clear access to oil fill and drain, valve caps, and seal stacks keeps maintenance fast and repeatable without relocating the 7P9G8700-50HP-V from its installed position

What the VFD Adds Day-to-Day

7P9G8700-50HP-V VFD Features at 8700 PSI Max Pressure

• Soft start and soft stop: motor ramps smoothly to operating speed at each startup — reducing electrical inrush and mechanical shock to couplings, packings, and bearings at the 8700 PSI max pressure operating point
• Adjustable accel/decel ramps: smooth pressure transitions as guns cycle at 8700 PSI max pressure — preventing overshoot at the lance, reducing unloader chatter, and delivering a calm, predictable trigger feel
• RPM-controlled flow: the VFD sets motor speed to dial in the delivered flow rate precisely, matching output to the task or accessory without swapping nozzles — full control within the 8700 PSI max pressure envelope from the keypad
• Stored Wash, Prep, and Rinse profiles: lock SOP setpoints at rated 8700 PSI max pressure so crews get the same result every shift — no guesswork, no manual tweaks between cleaning zones
• Component protection through controlled operation: VFD soft starts and ramp profiles lower mechanical shock at every startup cycle — extending seal and valve service intervals at rated 8700 PSI max pressure output

7P9G8700-50HP-V Operator Experience

Working at 8700 PSI Max Pressure in Enclosed Industrial Environments

• Stable lance feel with predictable impact: steady electric RPM combined with VFD ramping delivers consistent 8700 PSI max pressure impact at the nozzle and smooth trigger transitions — operators experience significantly less fatigue than with engine-driven systems at equivalent output
• Efficient sweep at 7.9 GPM: flow moves loosened soils to drains efficiently after 8700 PSI max pressure impact — the work zone clears quickly and post-cleaning cleanup time is reduced
• Zero exhaust, low noise: enclosed electric operation at 8700 PSI max pressure makes the 7P9G8700-50HP-V ideal for enclosed bays, production cells, and indoor facilities where engine platforms are restricted or prohibited
• Consistent output across shifts: stored VFD profiles at the rated 8700 PSI max pressure setpoint deliver the same cleaning quality regardless of operator — supervisors see repeatable results across all shifts and cleaning zones

7P9G8700-50HP-V Priority Applications

Where 8700 PSI Max Pressure and 7.9 GPM Deliver Results

• Industrial and MRO precision cleaning: coating removal, descaling, and surface preparation of fixtures, tooling, and production components where 8700 PSI max pressure mechanical action and tight flow control are both required
• Fleet and heavy equipment maintenance: cutting compacted mud, grease, and buildup on frames, axles, and undercarriages — the 7P9G8700-50HP-V’s 8700 PSI max pressure removes heavy deposits with minimal water volume
• Facilities and infrastructure maintenance: targeted spot cleaning on concrete, steel, grating, and structural components where concentrated 8700 PSI max pressure impact with controlled 7.9 GPM runoff is required
• Utilities and municipal operations: fabricated steel and service equipment where 8700 PSI max pressure jet energy combined with controlled 7.9 GPM flow speeds turnaround versus lower-pressure alternatives
• Multi-zone industrial facilities: VFD-stored profiles make the 7P9G8700-50HP-V ideal for facilities cleaning multiple surface types per shift — operators switch zones at the keypad without adjusting 8700 PSI max pressure manually or changing nozzle tips

7P9G8700-50HP-V Integration & Installation

Best Practices for System Setup at 8700 PSI Max Pressure

• Electrical setup: size supply conductors and circuit protection to the 50 HP motor nameplate; include a panel E-stop and lockout/tagout procedures; program VFD ramp times, stop mode, overload limits, and interlocks for low water, over-temperature, and overload fault conditions per facility SOPs
• Suction plumbing: keep inlet runs short, straight, and full-bore — RTP-series triplex pumps at 8700 PSI max pressure require adequate NPSH margin; avoid elbows and restrictions near the pump to protect packing life at rated max pressure output
• Bypass management: return bypass flow to the supply tank — especially with warm water — to stabilize inlet temperature and protect seals during extended 8700 PSI max pressure operation
• Accessories: all hoses, guns, lances, swivels, and tools must be rated for a minimum of 8700 PSI at operating temperature — no exceptions at this ultra-high-pressure level; size nozzle orifices for target impact at the 7P9G8700-50HP-V’s rated 7.9 GPM flow
• Inlet filtration: oversize the inlet strainer — low-cost protection for valves, seats, and seals at 8700 PSI max pressure, especially with reclaimed, hard, or mineral-laden water supply

7P9G8700-50HP-V Maintenance & Serviceability

Routine Service to Maintain 8700 PSI Max Pressure Performance

• First pump oil change at approximately 50 operating hours, then follow Annovi Reverberi’s RTP-series maintenance schedule; investigate milky or discolored oil immediately as it indicates water ingress into the crankcase
• Water seals and valves: replace seals at the first sign of weeping; refresh valve sets if startup pressure fails to reach the 8700 PSI max pressure setpoint, pulsation increases, or recovery slows after trigger release
• Coupling alignment checks: recheck direct-drive rigid coupling alignment and frame fasteners after initial installation, after transport, and during each seasonal service interval to protect bearings and seals at rated 8700 PSI max pressure
• VFD parameters: document and back up all stored profiles, ramp settings, and interlock configurations — restore immediately if the VFD is replaced or reset to factory defaults to maintain 8700 PSI max pressure setpoint accuracy across all stored profiles
• Service log: maintain a concise record of oil changes, seal and valve replacements, alignment checks, and VFD parameter updates — identify trends early and stage parts proactively to protect uptime at 8700 PSI max pressure

Why Choose the 7P9G8700-50HP-V

8700 PSI Max Pressure, Matched Flow, and Full VFD Control

• 8700 PSI max pressure with 7.9 GPM: the highest pressure in the WSHPWR lineup paired with controlled flow — sole-source cutting power for the toughest coating and scale removal
• Economically matched pump and motor: the Annovi Reverberi RTP 30.60N nickel-plated brass pump and 50 HP motor are paired to fully utilize both — 94 percent motor load at rated 8700 PSI max pressure means no wasted capability and predictable ownership economics
• VFD over fixed-speed: programmable ramps, stored profiles, soft starts, and fine RPM control make the 7P9G8700-50HP-V more versatile, more consistent, and easier on components than any fixed-speed alternative at 8700 PSI max pressure
• Zero emissions, indoor-rated: fully enclosed electric operation at 8700 PSI max pressure makes this system appropriate for enclosed manufacturing cells and facilities where combustion engines are not permitted
• Annovi Reverberi RTP-series reliability: proven solid-shaft triplex pump platform with predictable maintenance intervals and wide OEM parts availability across the U.S. and Canada
• Backed by WSHPWR: expert system integration support, application guidance, and full parts availability for the 7P9G8700-50HP-V and the Annovi Reverberi RTP pump platform

The 7P9G8700-50HP-V delivers 8700 PSI maximum pressure at 7.9 GPM from a 50 HP VFD-controlled electric system built on the Annovi Reverberi RTP 30.60N nickel-plated brass triplex pump — the sole-source ultra-high-pressure package in the WSHPWR lineup, engineered for environments where 8700 PSI max pressure cutting power, controlled 7.9 GPM flow, programmable control, and zero-emission indoor operation are all required. Contact WSHPWR for current pricing, availability, and system configuration support.
