23.5G3000-50HP-V Electric Pressure Washer 3000 PSI

23.5G3000-50HP-V Industrial Electric Pressure Washer | 23.5 GPM | Max Pressure 3000 PSI | 50 HP VFD

The 23.5G3000-50HP-V is a high-throughput industrial electric pressure washer delivering a maximum pressure of 3000 PSI at 23.5 GPM, powered by a VFD-controlled 50 HP electric motor paired with an Annovi Reverberi RTD-series solid-shaft triplex pump. The 23.5G3000-50HP-V is engineered for operations where area cleared per hour is the primary KPI — 23.5 GPM clears pads, bays, and production aisles rapidly while 3000 PSI max pressure provides dependable jet energy for oils, food residues, road film, and light oxides on concrete, steel, and equipment housings without stepping outside the broadly supported 3000 PSI accessory class.

The integrated VFD delivers soft starts, programmable accel/decel ramps, and stored Wash, Prep, and Rinse profiles that improve repeatability across shifts — supervisors save common setpoints for pad rinse, equipment wash, and surface cleaning; operators select at the keypad. With correct nozzle sizing, 23.5 GPM at 3000 PSI max pressure pairs with 24–30 inch rotary surface cleaners rated for the class to speed floor and dock work while keeping water volume manageable for containment and recovery systems. Fully electric and zero-emission, the 23.5G3000-50HP-V is ideal for food manufacturing, beverage plants, meat processing, dairies, packaging lines, warehouses, and transit depots where emissions-free indoor operation is essential.

23.5G3000-50HP-V Performance Specifications

Max Pressure, Flow & Power at a Glance

• Max Pressure: 3000 PSI — the rated maximum working pressure of the 23.5G3000-50HP-V system; dependable jet energy for oils, food residues, road film, and light oxides across all broadly supported 3000 PSI accessories
• Max Flow Rate: 23.5 GPM — highest-flow configuration in the 3000 PSI max pressure RTD-series lineup; engineered for maximum area-cleared-per-hour on large pads, bays, and production aisles
• Motor: 50 HP VFD-controlled — strong but appropriate load at the 3000 PSI max pressure duty point with practical headroom for hose length, manifolds, and regulation hardware
• Drive: Variable Frequency Drive (VFD) integrated — soft starts, programmable ramps, stored profiles, and load matching for temperature and energy management
• Pump: Annovi Reverberi RTD-series solid-shaft triplex plunger pump — belt-drive configuration for reduced pump RPM, lower vibration, and extended seal and bearing life in enclosed industrial environments
• Surface Cleaner Compatibility: 23.5 GPM at 3000 PSI max pressure pairs with 24–30 inch class-rated rotary surface cleaners for fast, even floor and dock cleaning lanes
• Water Horsepower: 23.5 GPM × 3000 PSI ÷ 1714 ≈ 41.1 HP theoretical — 50 HP motor provides practical headroom above demand at rated 3000 PSI max pressure
• Configuration: Fully enclosed electric — zero exhaust emissions, low noise, indoor-rated for food processing, sanitation, and production environments

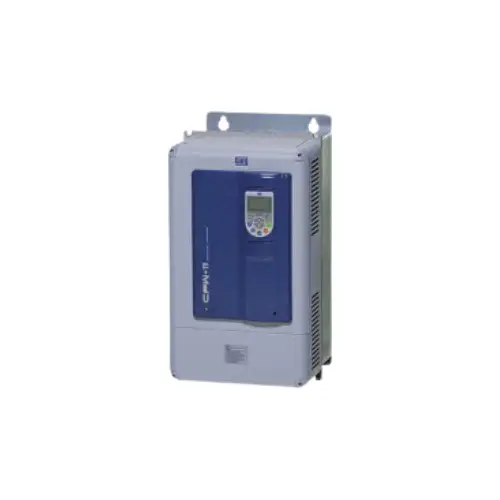

Why Choose the VFD Version

23.5G3000-50HP-V VFD Advantages at 3000 PSI Max Pressure

• Soft starts reduce startup shock at 23.5 GPM: VFD-controlled ramping at each startup cycle reduces electrical inrush and hydraulic shock — protecting seals, valves, belts, and electrical gear where 23.5 GPM hydraulic inrush forces at 3000 PSI max pressure startup are the highest in the lineup
• Programmable accel/decel ramps: smooth transitions when operators open and close guns, switch to rotary surface cleaners, or run long hose sets at 3000 PSI max pressure — reducing pressure overshoot and delivering consistent, even cleaning results across large floor areas
• Stored Wash, Prep, and Rinse profiles: supervisors save common setpoints at rated 3000 PSI max pressure — pad rinse, equipment wash, surface cleaning — operators select at the keypad for repeatable results across all shifts without manual adjustments
• Load matching for energy management: the VFD only spins the speed required for each task at 3000 PSI max pressure — managing temperature, reducing wear, and trimming power consumption during partial-duty work where full 23.5 GPM output is not always required
• Performance consistency as tools change: the VFD helps maintain target pressure and flow at 3000 PSI max pressure as nozzle or tool selections change — keeping cleaning performance consistent across diverse task types and operator preferences

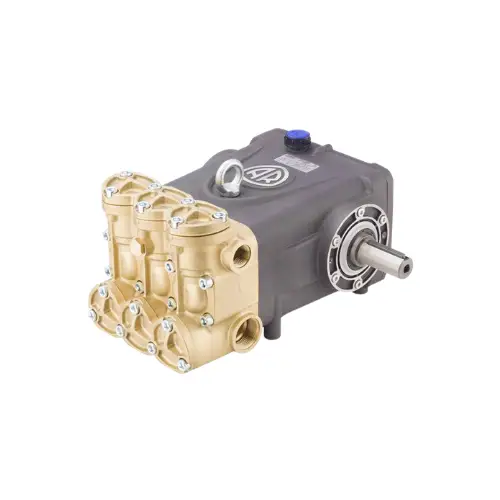

RTD Pump Architecture

Annovi Reverberi RTD-Series — Built for 3000 PSI Max Pressure High-Flow Industrial Service

• Industrial brass manifold head: stands up to hard water and compatible detergents in daily high-flow industrial service at 3000 PSI max pressure — built for the continuous washdown demands of food manufacturing, fleet maintenance, and production facility environments
• Ceramic plungers: limit heat transfer at the packing interface — extending water-seal life significantly during long-duration cycles at 23.5 GPM and the 23.5G3000-50HP-V’s rated maximum pressure
• Dual-packing seal stack: adds redundancy and sealing stability at 3000 PSI max pressure — supporting thousands of operating hours when suction plumbing and inlet filtration are correctly maintained
• Oversized crank bearings and precision stainless valves: keep hydraulics smooth across long hose runs and multi-gun manifold configurations at 3000 PSI max pressure — protecting downstream accessories from pressure cycling fatigue at sustained high-flow output
• Belt-drive configuration: reduces pump RPM and vibration transmission — supporting seal and bearing longevity and lowering sound levels in enclosed bays at 3000 PSI max pressure output across demanding multi-shift daily duty cycles
• Service-forward layout: exposes oil fill and drain, valve caps, and seal stacks for fast, repeatable maintenance access without relocating the 23.5G3000-50HP-V from its installed position

23.5G3000-50HP-V Operator and Facility Advantages

Working at 3000 PSI Max Pressure in Enclosed Industrial Environments

• Maximum area cleared per hour at 3000 PSI max pressure: 23.5 GPM delivers the highest floor coverage rate in the 3000 PSI max pressure RTD-series lineup — paired with 24–30 inch rotary surface cleaners for wide, even cleaning lanes that maximize throughput per shift
• Broad accessory compatibility at 3000 PSI max pressure: 3000 PSI is the most widely supported pressure class in industrial cleaning — the largest selection of hoses, guns, surface cleaners, manifolds, and accessories rated for this max pressure level
• Zero exhaust, low noise for multi-shift facilities: quiet belt-drive electric operation at 3000 PSI max pressure makes the 23.5G3000-50HP-V ideal for food manufacturing, beverage plants, meat processing, dairies, packaging lines, and transit depots where emissions and noise affect worker comfort and regulatory compliance
• Manageable containment at 23.5 GPM: with correct nozzle sizing and rotary surface cleaner selection, 23.5 GPM at 3000 PSI max pressure keeps water volume manageable for containment systems and recovery infrastructure while delivering maximum floor cleaning speed

23.5G3000-50HP-V Priority Applications

Where 3000 PSI Max Pressure and 23.5 GPM Deliver Results

• Fleet and transit maintenance: rapid bay cycles on frames, wheel-ends, and undercarriages — 23.5 GPM at 3000 PSI max pressure delivers the fastest fleet wash turnover in this pressure class
• Food and beverage production: floor and equipment rinse at 3000 PSI max pressure in zero-emission indoor environments — use facility SOPs and compatible chemistries; verify drainage capacity for 23.5 GPM flow
• Industrial MRO facilities: pits, mezzanines, machine surrounds, and dedicated wash stations where 3000 PSI max pressure combined with 23.5 GPM carry-off volume maximizes cleaning productivity per shift
• Facilities and property maintenance: loading docks, parking structures, and large production aisles where 23.5 GPM at 3000 PSI max pressure with large rotary surface cleaners covers maximum area per shift
• Concrete and construction preparation: slab cleanup and surface preparation prior to coatings or sealers where high-flow 3000 PSI max pressure efficiently removes curing compounds, laitance, and construction residues

23.5G3000-50HP-V Integration & Installation

Best Practices for System Setup at 3000 PSI Max Pressure

• Electrical setup: size feeders and circuit protection to the 50 HP motor nameplate; include E-stop and lockout/tagout procedures; program VFD minimum and maximum Hz, accel/decel ramps, and interlocks for low water and over-temperature conditions per facility SOPs
• Suction plumbing: keep inlet runs short, straight, and full-bore — RTD-series belt-drive triplex pumps at 23.5 GPM and 3000 PSI max pressure require adequate NPSH margin; avoid tight elbows at the pump head to protect packing life
• Bypass management: return bypass flow to the supply tank — especially with warm water — to stabilize inlet temperature and extend seal life during extended high-flow 3000 PSI max pressure operation
• Accessories: all hoses, guns, lances, swivels, manifolds, and surface tools must be rated for a minimum of 3000 PSI at operating temperature; nozzle precisely for 23.5 GPM to hit the set 3000 PSI max pressure with minimal regulation hunting
• Inlet filtration: oversize the inlet strainer — low-cost protection for valves, seats, and seals at 3000 PSI max pressure and 23.5 GPM flow, particularly with reclaimed or hard water supply

23.5G3000-50HP-V Maintenance & Serviceability

Routine Service to Maintain 3000 PSI Max Pressure Performance

• First pump oil change at approximately 50 operating hours, then follow Annovi Reverberi’s RTD-series maintenance intervals; investigate milky or discolored oil immediately as it indicates water ingress into the crankcase
• Water seals and valves: replace seals at the first sign of early weeping; refresh valve sets if startup pressure fails to reach the 3000 PSI max pressure setpoint, pulsation increases, or recovery slows after trigger release
• Belt inspection and tension: recheck belt alignment and tension after initial installation and on a scheduled service cadence — VFD soft starts on the 23.5G3000-50HP-V significantly extend belt life at 3000 PSI max pressure versus fixed-speed start alternatives
• VFD parameters: document and back up all stored profiles, ramp settings, and interlock configurations — restore immediately if the VFD is replaced or reset to factory defaults to maintain 3000 PSI max pressure setpoint accuracy across all stored profiles
• Maintenance log: maintain a concise record of oil changes, seal and valve replacements, belt adjustments, and VFD parameter updates — stage parts proactively and keep downtime predictable at 3000 PSI max pressure across the 23.5G3000-50HP-V’s high-flow daily duty cycle

Why Choose the 23.5G3000-50HP-V

3000 PSI Max Pressure, Maximum Flow, and Area-Cleared-Per-Hour Performance

• Highest GPM in the 3000 PSI max pressure RTD lineup: 23.5 GPM delivers more area cleared per hour than any lower-flow system at equivalent 3000 PSI max pressure — the top throughput choice for operations where cleaning speed directly impacts operational productivity
• 24–30 inch rotary surface cleaner synergy at 3000 PSI max pressure: 23.5 GPM is specifically matched for large-class surface cleaners — the fastest combination available for floor and dock cleaning in the 3000 PSI max pressure class
• Broadest 3000 PSI max pressure accessory compatibility: 3000 PSI is the most widely supported industrial cleaning pressure class — the largest selection of rated hoses, guns, manifolds, and surface tools for maximum system flexibility
• VFD for multi-shift standardization and energy management: stored profiles, load matching, soft starts, and ramp control make the 23.5G3000-50HP-V more consistent, more energy-efficient, and easier on components than any fixed-speed 3000 PSI max pressure alternative
• Zero emissions across all target markets: belt-drive electric operation at 3000 PSI max pressure supports food processing, pharmaceutical, and enclosed industrial environments where combustion engines are not permitted across all shift patterns
• Backed by WSHPWR: expert system integration support, surface cleaner sizing guidance, multi-gun manifold design, and full parts availability for the 23.5G3000-50HP-V and the Annovi Reverberi RTD pump platform

The 23.5G3000-50HP-V delivers 3000 PSI maximum pressure at 23.5 GPM from a 50 HP VFD-controlled belt-drive electric system built on the proven Annovi Reverberi RTD-series triplex pump — engineered for high-throughput industrial facilities where maximum area cleared per hour at 3000 PSI max pressure, large-class rotary surface cleaner compatibility, programmable VFD standardization, and zero-emission indoor operation are all required. Contact WSHPWR for current pricing, availability, and system configuration support.
