14G4350-50HP-V Electric Pressure Washer 4350 PSI

14G4350-50HP-V Industrial Electric Pressure Washer | 14 GPM | Max Pressure 4350 PSI | 50 HP VFD

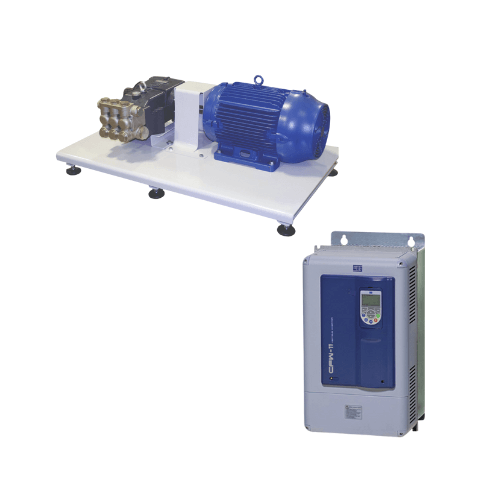

The 14G4350-50HP-V is a high-output industrial electric pressure washer delivering a maximum pressure of 4350 PSI at 14 GPM, powered by a 50 HP electric motor paired with an Annovi Reverberi RTX60 solid-shaft triplex pump and an integrated Variable Frequency Drive (VFD). The 14G4350-50HP-V delivers a rare combination of serious rinse volume and decisive cutting power — 4350 PSI max pressure provides the mechanical action needed for baked road film, light oxides, and compacted grime on steel and concrete while 14 GPM prevents redeposition, moves fines to containment, and speeds bay turnover in fewer passes than lower-flow systems at equivalent max pressure. The motor drives the pump through a direct-coupled shaft, and the VFD manages start/stop behavior and profile tuning while the pump runs at its full nameplate rating.

Unlike VFD-trimmed builds, the 14G4350-50HP-V runs the RTX60 at its full nameplate rating of 14 GPM at 4350 PSI at 1450 RPM — no derating required, with all operating points squarely within Annovi Reverberi’s published envelope. The VFD is used for soft start and stop behavior and fine profile tuning rather than speed reduction — delivering the full RTX60 nameplate performance with the programmable control advantages of VFD technology. The integrated VFD provides soft starts, programmable accel/decel ramps, and stored Wash, Prep, and Rinse profiles so output stays consistent shift to shift. Fully electric and zero-emission, the 14G4350-50HP-V is purpose-built for enclosed industrial bays, production cells, and facilities where engine platforms are not practical or permitted.

14G4350-50HP-V Performance Specifications

Max Pressure, Flow & Power at a Glance

• Max Pressure: 4350 PSI — the rated maximum working pressure of the 14G4350-50HP-V system; decisive cutting action on baked road film, light oxides, and compacted grime on steel and concrete
• Max Flow Rate: 14 GPM — high-volume output for fast bay turnover, efficient redeposition prevention, and broad even sweeps across large industrial surfaces
• Motor: 50 HP — efficient utilization at the RTX60 duty point with margin for long hose runs, regulation, and accessory demand
• Drive: Variable Frequency Drive (VFD) integrated — soft start and stop control, programmable ramps, stored profiles, and fine tuning at full nameplate performance
• Pump: Annovi Reverberi RTX60 nickel-plated brass manifold solid-shaft triplex pump — direct-drive, rigid coupling; nameplate rated 14 GPM at 4350 PSI at 1450 RPM; operates at full nameplate speed and pressure with no derating required
• Pump Mapping: RTX60 runs at full nameplate 1450 RPM at rated 4350 PSI max pressure — VFD used for start/stop behavior and profile tuning, not speed reduction; full operating compliance within Annovi Reverberi’s published envelope
• Water Horsepower: 14 GPM × 4350 PSI ÷ 1714 ≈ 35.6 HP theoretical — 50 HP motor provides meaningful margin above demand at rated 4350 PSI max pressure for long hose runs, regulation, and accessories
• Configuration: Fully enclosed electric — zero exhaust emissions, low noise, indoor-rated for production and industrial environments

Why 14 GPM at 4350 PSI Max Pressure

14G4350-50HP-V Duty Point — High Flow That Finishes, Pressure That Breaks

• 4350 PSI max pressure breaks heavy industrial soils: baked road film, light oxides, and compacted grime on steel and concrete yield quickly to 4350 PSI max pressure mechanical action — faster removal than 3,000–3,600 PSI systems without the cost or operational complexity of ultra-high-pressure equipment
• 14 GPM finishes the job efficiently: high flow prevents redeposition of loosened soils after 4350 PSI max pressure impact, moves fines to containment, and speeds bay turnover — broad, even sweeps clear loosened contamination decisively and shorten cleanup time
• Full RTX60 nameplate — no derating: this is the rare build that runs at the pump’s exact published 14 GPM and 4350 PSI max pressure ratings at 1450 RPM — maximum volumetric efficiency, full Annovi Reverberi warranty coverage, and no performance compromise
• 50 HP motor efficient utilization: theoretical water horsepower at 4350 PSI max pressure is approximately 35.6 HP — the 50 HP motor is efficiently loaded with meaningful margin for hose friction, regulation, and multi-accessory configurations
• VFD for control, not speed reduction: unlike other VFD builds in this lineup that trim RPM to reduce flow, the 14G4350-50HP-V uses the VFD purely for soft start behavior and stored profile management at full 4350 PSI max pressure nameplate output

RTX60 Pump Architecture

Annovi Reverberi RTX-Series — Built for 4350 PSI Max Pressure Full-Nameplate Service

• Nickel-plated brass manifold head: enhanced corrosion resistance versus plain brass at lower cost than stainless — ideal for hard water and common industrial detergents at sustained 4350 PSI max pressure output, particularly in fleet and transit cleaning environments
• Ceramic plungers: limit heat transfer at the packing interface — extending water-seal life significantly during long-duration cycles and frequent start/stop operation at the 14G4350-50HP-V’s rated maximum pressure and 14 GPM high-flow output
• Precision stainless valves and oversized crank bearings: maintain smooth, low-pulsation hydraulics across long hose runs and large rotary surface cleaner tools at 4350 PSI max pressure — protecting downstream accessories and hose assemblies from pressure cycling fatigue
• Dual-packing seal strategy: provides redundancy and pressure stability at 4350 PSI max pressure — with proper inlet conditions and filtration these pumps routinely log thousands of trouble-free operating hours between major service events
• Guarded rigid coupling: preserves motor-to-pump shaft alignment, reduces vibration transmission, and protects bearings and seals — a key contributor to high MTBF and predictable service intervals at sustained full-nameplate 4350 PSI max pressure output
• Service-forward frame design: exposed oil fill and drain, valve caps, and seal stacks keep routine maintenance fast and repeatable without relocating the 14G4350-50HP-V from its installed position

What the VFD Delivers for Cleaning Crews

14G4350-50HP-V VFD Features at 4350 PSI Max Pressure

• Soft start and soft stop: motor ramps smoothly to full nameplate operating speed at each startup — eliminating hose kick, electrical inrush, and torsional shock to couplings, packings, and bearings at the 4350 PSI max pressure operating point
• Programmable accel/decel ramps: soft-ramped pressure rise and decay when the trigger cycles at 4350 PSI max pressure — reducing unloader chatter, eliminating pressure overshoot, and delivering a stable, predictable lance feel for operators across long cleaning shifts
• Stored Wash, Prep, and Rinse profiles: supervisors lock SOP setpoints at rated 4350 PSI max pressure — operators select a labeled preset for the task rather than guessing, delivering repeatable results and consistent surface finish quality across all shifts
• Profile tuning at full nameplate output: fine parameter adjustment within the 4350 PSI max pressure envelope without sacrificing flow or pressure — VFD adds control precision to an already fully rated pump system rather than compensating for derating
• Component protection at full-rated output: soft starts and controlled ramps lower mechanical shock at every cycle at 4350 PSI max pressure — extending the service intervals of a pump already running at its most efficient and reliable nameplate operating point

14G4350-50HP-V Operator Experience

Working at 4350 PSI Max Pressure in Enclosed Industrial Environments

• Stable lance with a broad, even sweep: steady electric RPM at full nameplate 1450 RPM combined with VFD ramping delivers predictable 4350 PSI max pressure impact at the nozzle and smooth trigger transitions — operators see a broad, decisive sweep that clears loosened soils efficiently across large surfaces
• 14 GPM shortens cleanup significantly: high flow at 4350 PSI max pressure prevents redeposition and moves fines to drains decisively — bay turnover times are shorter and post-cleaning squeegee and mop-up time is reduced versus lower-flow systems at equivalent pressure
• Zero exhaust, low noise: enclosed electric operation makes the 14G4350-50HP-V ideal for enclosed bays, production cells, and indoor industrial facilities where engine platforms are restricted or prohibited
• Consistent quality across shifts: stored VFD profiles at the rated 4350 PSI max pressure setpoint deliver the same output regardless of operator — supervisors see repeatable cleaning results and surface finish quality across all shifts and cleaning zones

14G4350-50HP-V Priority Applications

Where 4350 PSI Max Pressure and 14 GPM Deliver Results

• Fleet and transit depots: pads, undercarriages, and wheel-ends — the 14G4350-50HP-V’s 4350 PSI max pressure with 14 GPM carry-off delivers faster turnaround on buses, refuse trucks, tractors, and heavy transport fleets than lower-flow or lower-pressure systems
• Industrial and MRO facilities: production floor rinse, equipment surrounds, fixtures, and pre-paint surface preparation — 4350 PSI max pressure breaks light oxide and scale on steel efficiently at full nameplate 14 GPM flow
• Food and beverage sanitation: wide-area rinse at 4350 PSI max pressure where metallurgy and chemistry allow — follow facility SOPs and verify chemical compatibility for all cleaning agents applied
• Municipal and utilities maintenance: transfer stations, vaults, and lift stations where 14 GPM at 4350 PSI max pressure reduces redeposition and speeds bay turnover versus lower-flow alternatives on large municipal infrastructure
• Multi-zone industrial facilities: VFD stored profiles make the 14G4350-50HP-V ideal for operations cleaning multiple surface types per shift — operators switch zones at the keypad without adjusting 4350 PSI max pressure manually or changing nozzle tips

14G4350-50HP-V Integration & Installation

Best Practices for System Setup at 4350 PSI Max Pressure

• Electrical setup: size supply conductors and circuit protection to the 50 HP motor nameplate; include a panel E-stop and lockout/tagout procedures; program VFD ramp times, stop mode, overload limits, and interlocks for low water, over-temperature, and overload fault conditions per facility SOPs
• Suction plumbing: keep inlet runs short, straight, and full-bore — RTX-series triplex pumps at full nameplate 1450 RPM and 4350 PSI max pressure require adequate NPSH margin; avoid elbows and restrictions near the pump to protect packing life
• Bypass management: return bypass flow to the supply tank — especially with warm water — to stabilize inlet temperature and protect seals during extended 4350 PSI max pressure operation
• Accessories: all hoses, guns, lances, swivels, and surface tools must be rated for a minimum of 4350 PSI at operating temperature; size nozzle orifices for 14 GPM to hold 4350 PSI max pressure and avoid unloader hunting at full nameplate output
• Inlet filtration: oversize the inlet strainer — low-cost protection for valves, seats, and seals at 4350 PSI max pressure, particularly with reclaimed, hard, or mineral-laden water supply

14G4350-50HP-V Maintenance & Serviceability

Routine Service to Maintain 4350 PSI Max Pressure Performance

• First pump oil change at approximately 50 operating hours, then follow Annovi Reverberi’s RTX-series maintenance schedule; investigate milky or discolored oil immediately as it indicates water ingress into the crankcase
• Water seals and valves: dual-packing layout supports long seal life — replace water seals at the first sign of weeping; refresh valve sets if startup pressure fails to reach the 4350 PSI max pressure setpoint, pulsation rises, or recovery slows after trigger release
• Coupling alignment checks: recheck rigid coupling alignment and all frame fasteners after initial installation, after transport, and during each seasonal service interval to protect bearings and seals at rated 4350 PSI max pressure
• VFD parameters: document and back up all stored profiles, ramp settings, and interlock configurations — restore immediately if the VFD is replaced or reset to maintain 4350 PSI max pressure setpoint accuracy and full nameplate output compliance across all stored profiles
• Service log: maintain a concise record of oil changes, seal and valve replacements, alignment checks, and VFD parameter updates — identify trends early and stage parts proactively to protect uptime at 4350 PSI max pressure

Why Choose the 14G4350-50HP-V

4350 PSI Max Pressure at Full Nameplate Flow With VFD Control

• Full RTX60 nameplate — no derating, no compromise: 14 GPM at 4350 PSI max pressure at 1450 RPM exactly as Annovi Reverberi published — maximum volumetric efficiency, full warranty coverage, and the most productive operating point available on this pump platform
• 4350 PSI max pressure with 14 GPM carry-off: the combination of decisive cutting power and high carry-off volume delivers faster bay turnover and better surface results than any lower-flow or lower-pressure alternative in the same class
• VFD for control at full output — not compensation: unlike derating-required VFD builds, the 14G4350-50HP-V uses VFD technology to add soft start protection and profile management on top of already-optimal 4350 PSI max pressure nameplate performance
• Zero emissions, indoor-rated: fully enclosed electric operation at 4350 PSI max pressure makes this system appropriate for food processing environments, enclosed manufacturing cells, and facilities where combustion engines are not permitted
• Annovi Reverberi RTX60 reliability: nickel-plated brass manifold, ceramic plungers, dual-packing seal strategy, and precision stainless valves — proven platform with thousands of documented trouble-free operating hours at 4350 PSI max pressure in demanding industrial applications
• Backed by WSHPWR: expert system integration support, application guidance, and full parts availability for the 14G4350-50HP-V and the Annovi Reverberi RTX pump platform

The 14G4350-50HP-V delivers 4350 PSI maximum pressure at 14 GPM from a 50 HP VFD-controlled electric system built on the Annovi Reverberi RTX60 triplex pump at its full nameplate rating — engineered for fleet depots, industrial facilities, and municipal operations where decisive 4350 PSI max pressure cutting power, high-flow bay turnover efficiency, programmable VFD control, and zero-emission indoor operation are all required. Contact WSHPWR for current pricing, availability, and system configuration support.
