Feeding jetter hose into a line takes both hands. So does steadying a lance in a tank, or guiding a nozzle into a duct. A trigger gun assumes you have a spare hand, and in most sewer and pipe work you do not. A high pressure foot valve moves the control to your foot.

A foot control puts the valve on the floor. The operator keeps both hands on the hose and controls flow with a pedal, and lifting the foot shuts it off instantly.

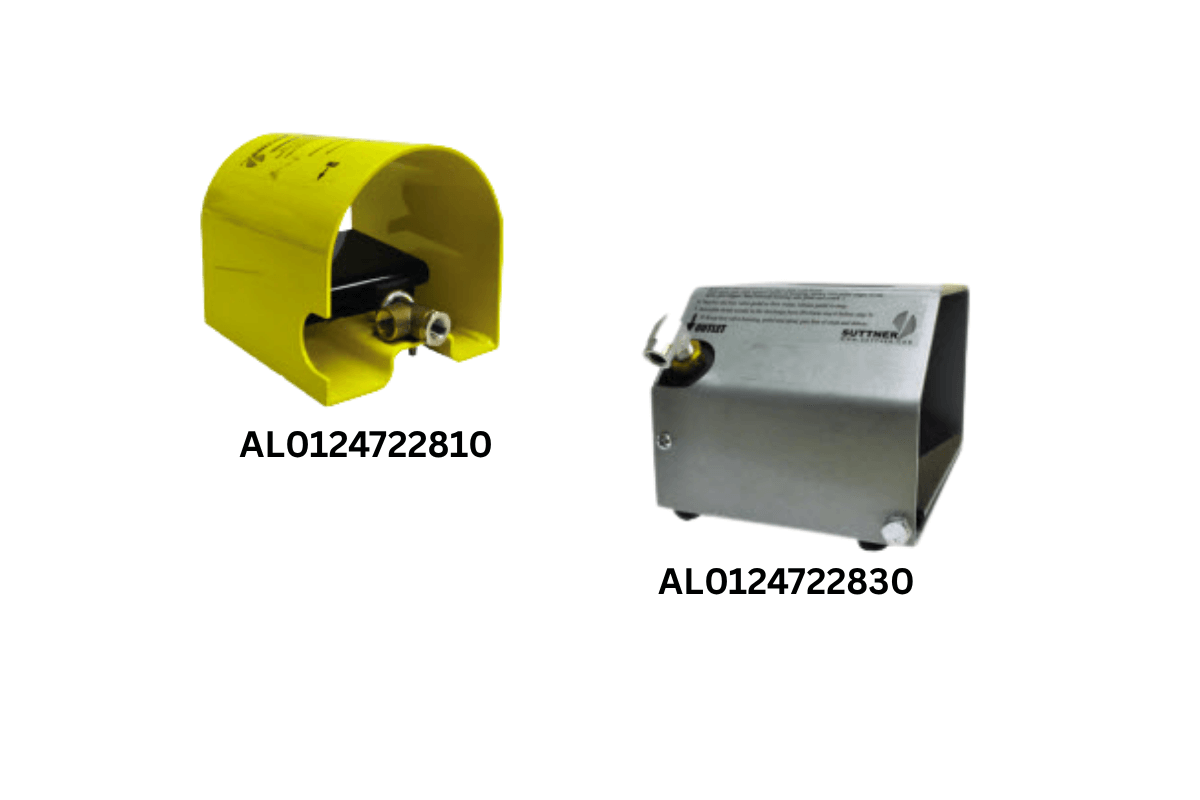

The two high-pressure foot valves

Flow and temperature ratings are not published for these valves. Tell us your machine’s GPM and whether you are running hot water, and we will confirm the valve fits before you order. Hot water matters on grease lines, where heat does more of the work than pressure does.

Size by your jetter, and leave margin. A valve rated 3,000 PSI on a 4,000 PSI machine is the weakest point in a system where the weakest point fails at your feet.

How high-pressure foot valves work

The valve mounts on the ground, plumbed inline between the high-pressure source and the tool. Stepping on the pedal opens flow; releasing it closes and depressurises the line downstream.

Three consequences:

• Both hands stay on the hose. On a jetter that matters more than convenience, because a hose that gets away from you at 3,000 PSI is dangerous.
• Shutoff is immediate and does not require reaching for anything or walking back to the machine.
• Less water hammer. Clean open and close cycles are easier on pumps, hoses and nozzles than repeatedly starting and stopping the machine.

Sewer and pipe work

This is the core use. Jetting a line means feeding hose in, adjusting position, changing nozzles and watching the return. Without hands-free control the operator either shuts the machine down at the pump every time or needs a second person.

With a foot valve, one operator controls the whole process: better control of jetting speed and direction, less risk from sudden hose movement, faster completion.

Pair it with the right nozzle from the sewer and drain cleaning range, matched to your jetter’s flow and the pipe diameter.

Where else they earn their keep

Industrial plant maintenance. Pipe descaling, tank cleaning and duct flushing with a lance. Both hands on the lance, flow under the foot.

Food processing. Sanitation crews working around delicate equipment, often with hot water. Hands-free control means the operator can position carefully rather than fighting a trigger.

Marine and ship maintenance. Bilges, ballast tanks and engine rooms, where the spaces are confined and the hoses are heavy.

HVAC duct cleaning. Controlled bursts rather than continuous spray, which is what keeps you from soaking duct linings.

Construction. Dust suppression and concrete cleaning where the operator is bracing a hose against rough ground.

Storm drain and catch basin work. Manoeuvring hose through complex drain systems with precise flow control.

Fleet maintenance. Radiators, undercarriages and clogged lines, in tight and greasy positions.

The safety argument

At 3,000 to 5,000 PSI a loose hose or an unintended discharge causes real injury. A foot valve means the operator never has to let go of the hose to stop the water, and the system depressurises the moment the foot lifts.

That is a meaningful difference from a trigger gun, where stopping the water and controlling the hose compete for the same hands.

And the productivity one

• Start and stop without leaving the work area or shutting down at the pump
• Less wear on pumps and nozzles from clean cycling
• Operators who are not gripping a trigger all day last longer and work more accurately at the end of a shift

Across a crew and a full shift those add up to more than they look like on paper.

Send your jetter’s flow and pressure and you will get the right valve rating, plus nozzle recommendations for the lines you work.
