XWLSS42.05N | 11 GPM 1450 PSI Pump 1450 RPM SS Head 24mm Shaft

XWLSS42.05N | Stainless Triplex Pump, 11.1 GPM 725 PSI, 1450 RPM, 24 mm Solid Shaft

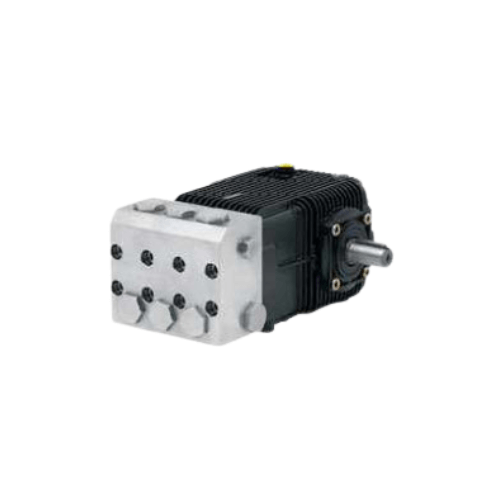

The XWLSS42.05N is an Annovi Reverberi XWL triplex plunger pump with a stainless steel head, rated 11.1 GPM (42 L/min) at 725 PSI (50 bar) at 1450 RPM. It is built for volume, not pressure: high-flow rinsing, sanitation, foam and chemical application, and process water transfer where corrosive cleaners would attack a brass head.

At 725 PSI it is safe on food contact surfaces, equipment, livestock areas and finished goods, while 11 GPM clears residue fast. The heavy XWL frame runs at 1450 RPM on a belt drive, so seals, valves and bearings run cool through long sanitation shifts.

What’s in the Box

• XWLSS42.05N pump with stainless steel head and 24 mm keyed solid shaft
• Crankcase oil, pre-filled at the factory
• Vented dipstick. The pump ships with a shipping plug in the oil port. Swap in the dipstick before the first start.
• Operation manual and parts schematic
• 5-year Annovi Reverberi warranty

Will It Fit My Machine?

• Drive: belt drive. Size the pulleys so the pump turns no faster than 1450 RPM.
• Electric motor: 7.5 HP.
• Gas engine: 270cc or larger (9 HP class).
• Inlet supply: at 11 GPM, use a large, unrestricted inlet line and strainer so the pump never starves.
• Need more pressure? The XWLSS42.15N delivers the same 11 GPM at 2,200 PSI.

Not sure? Text a pump specialist at (505) 226-6061 with your drive details and we’ll confirm the fit.

What Else You’ll Need

The pump is sold bare. The unloader, thermal relief valve, inlet filter and rail kit are sold separately:

• Unloader valves: choose one rated for at least 11 GPM at your working pressure. A stainless unloader keeps the whole wet end corrosion resistant.
• Thermal relief valves, inlet filters and rail kits: rails mount the pump to a base for belt drive.

XWLSS42.05N Specifications

• Model: XWLSS42.05N
• Flow: 11.1 GPM (42 L/min)
• Max Pressure: 725 PSI (50 bar)
• Speed: 1450 RPM

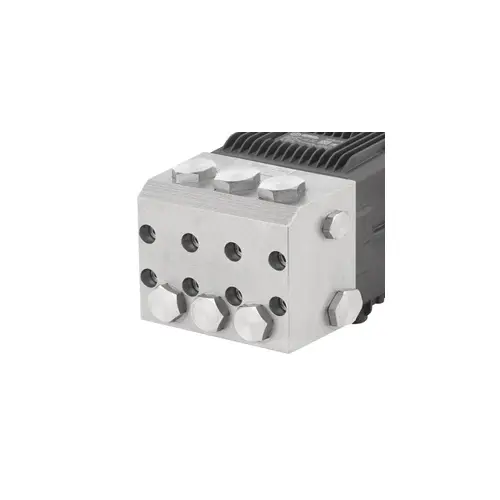

• Head: Stainless steel

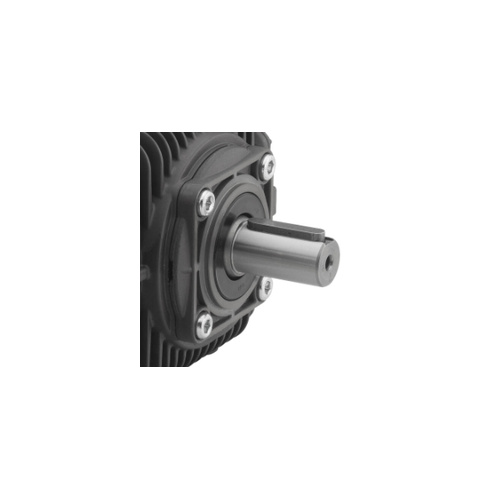

• Shaft: 24 mm solid, keyed
• Drive Size: 7.5 HP electric, or 270cc+ gas with belt drive
• Plungers: Ceramic
• Max Water Temperature: 140°F
• Weight: 37 lbs
• Warranty: 5 years
• Brand: Annovi Reverberi

Shipping: Usually ships via UPS in 1 to 3 days.
