XWL41.21NHT | 10.8 GPM 3000 PSI Pump 1450 RPM Hot Water Ready

XWL41.21NHT — 10.8 GPM, 3000 PSI, 185°F Hot Water Industrial Pump

High-flow hot water pump for continuous-duty cleaning

• The Annovi Reverberi XWL41.21NHT is a high-flow, hot water–rated industrial triplex plunger pump
  engineered for continuous-duty wash systems that demand both pressure and elevated temperature performance.
• Delivers 10.8 GPM at 3000 PSI while running at 1450 RPM, providing strong cleaning
  impact with reduced heat, vibration, and mechanical stress inside the pump.
• Rated for water temperatures up to 185°F, making it an excellent choice for degreasing, sanitation,
  and heavy soil removal where cold-water systems fall short.
• Nickel-plated head, stainless valves, and ceramic plungers are specified for harsh chemical environments,
  hot detergents, and long daily run times in industrial settings.

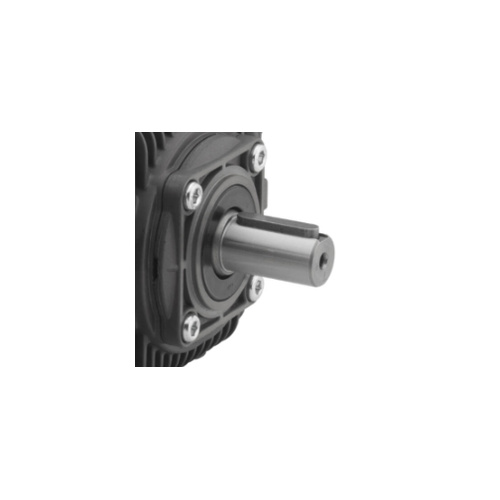

• A 24 mm solid keyed shaft supports belt-drive, gearbox-driven, or direct-coupled engine and motor
  configurations on custom WSHPWR.com-grade systems.

Key Specifications for XWL41.21NHT

Critical data for system designers and OEMs

• Model: Annovi Reverberi XWL41.21NHT industrial hot water triplex plunger pump.
• Flow Rate: 10.8 GPM for high-volume wash bays, equipment cleaning, and multi-gun systems.
• Maximum Pressure: 3000 PSI for cutting through grease, oil, and compacted soils.
• Operating Speed: 1450 RPM slow-speed operation for cooler running and extended life.
• Temperature Rating: Hot water capable up to 185°F under continuous-duty conditions.
• Shaft Size: 24 mm solid keyed shaft for standard industrial couplings and pulleys.
• Head / Manifold: Nickel-plated brass head for corrosion resistance in hot, chemical wash circuits.
• Valves: Stainless steel valves for precise timing, thermal stability, and long sealing life.
• Plungers: Solid ceramic plungers to manage pressure, temperature, and friction loads.
• Lubrication: Oil bath crankcase with sight glass and vented dipstick.
• Warranty: 5-year commercial-use warranty with U.S.-based service support.

Construction & Materials

Built for heat, pressure, and daily industrial abuse

• Nickel-plated head and manifold protect wetted components from hot detergents, mineral-rich water,
  and corrosive wash chemistries common in heavy cleaning environments.

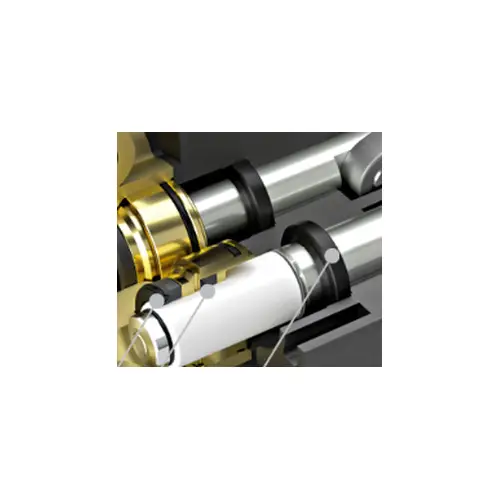

• Ceramic plungers maintain dimensional stability at high pressure and elevated temperature,
  reducing scoring, glazing, and seal wear during long duty cycles.
• Stainless steel inlet and discharge valves resist corrosion and maintain sharp hydraulic timing for
  consistent flow and pressure at 3000 PSI.
• Bronze or heavy-duty connecting rods and a precision-ground crankshaft are specified for sustained
  hot-water operation and heavy side loads from belts and couplings.
• A rigid crankcase casting and oversized bearings control shaft alignment and reduce vibration,
  supporting thousands of operating hours in fixed and mobile rigs.

Hot Water Performance of XWL41.21NHT

Thermal endurance where cold-water pumps fail

• Engineered specifically for hot-water, high-duty applications where inlet temperatures up to 185°F
  are routine rather than occasional.
• Elevated fluid temperature improves detergent activation and degreasing performance on engines, undercarriages,
  industrial tooling, and plant equipment.
• High-temperature seals, plungers, and valve materials are selected to resist thermal shock during startup,
  shutdown, and chemical purge cycles.
• Low-RPM operation helps control internal temperature rise even when plumbing inlets with hot booster systems or
  dedicated heating coils.
• Ideal for sanitation, food production, and industrial processes where hot water is mandated by procedure or
  regulatory standards.

Benefits for Industrial and Commercial Users

Productivity, uptime, and lifecycle advantages

• High flow with hot water: 10.8 GPM supports multi-gun, multi-nozzle, or wide-surface cleaning in a single circuit.
• True hot-water capability: 3000 PSI at up to 185°F unlocks degreasing and sanitation performance that cold water cannot match.
• Extended service intervals: Slow 1450 RPM operation and robust internal components help stretch seal, valve, and bearing life.
• Lower vibration and noise: Balanced triplex crank geometry and solid construction reduce fatigue on frames, skids, and pipework.
• Service-friendly layout: Oil sight glass, vented dipstick, and external valve caps support fast inspection and scheduled rebuilds.
• Reduced downtime risk: Hot-water rating and premium materials minimize failures when systems are run near their thermal limit day after day.

Typical Applications

Where the XWL41.21NHT excels

• Commercial hot water pressure washer skids for contractors, rental fleets, and mobile wash rigs
  handling degreasing and heavy soils.
• Industrial wash bays in truck shops, heavy-equipment facilities, and manufacturing plants that
  require hot-water cleaning for oils and lubricants.
• Mining and construction sites for removal of clay, aggregate dust, hydraulic oil, and diesel
  residues from equipment.
• Food and beverage production in USDA- or FDA-regulated plants where hot-water cleaning and
  sanitation protocols are mandatory.
• Waste management and fleet maintenance for waste trucks, roll-offs, tankers, and transfer station
  washdown.
• Agricultural and dairy operations requiring hot-water wash for milking parlors, barns, tanks, and
  support equipment.

XWL41.21NHT | 10.8 GPM 3000 PSI Pump 1450 RPM Hot Water Ready

Integration & Maintenance Best practices for WSHPWR-grade systems

• Mount on a rigid, level base and align precisely with motors or engines to keep bearing loads within specification
  at 1450 RPM.
• Provide an ample, filtered, and de-aerated inlet supply sized for 10.8 GPM at elevated temperature to avoid
  cavitation in hot-water service.
• Pair with a correctly sized unloader or regulator, pressure relief valve, and bypass plumbing designed for
  3000 PSI hot-water duty.
• Follow a documented service schedule for oil changes, valve inspections, and seal kit replacement based on hours,
  temperature, water quality, and chemical loading.
• After chemical or detergent use, run a clean-water flush cycle to protect the nickel-plated head, valves, and
  seals from residue damage.
• Maintain accurate records of operating conditions and service history to support long-term reliability and warranty
  compliance in critical operations.

Why Specify the XWL41.21NHT

Selection logic for engineers, OEMs, and facility managers

• Combines 10.8 GPM, 3000 PSI, and 185°F capability in a single industrial pump footprint for
  high-demand hot-water systems.
• Fills the gap between small contractor units and large custom pumps, giving designers a standardized, field-proven
  hot-water platform.
• Material selection and low-RPM geometry support long service life in plants, wash bays, and mobile equipment that
  run daily, not occasionally.
• Aligns with WSHPWR.com system philosophy: industrial-grade components, straightforward service, and predictable
  lifecycle cost.
• Backed by Annovi Reverberi’s industrial pedigree and a 5-year commercial-use warranty with
  U.S.-based technical support and parts availability.
