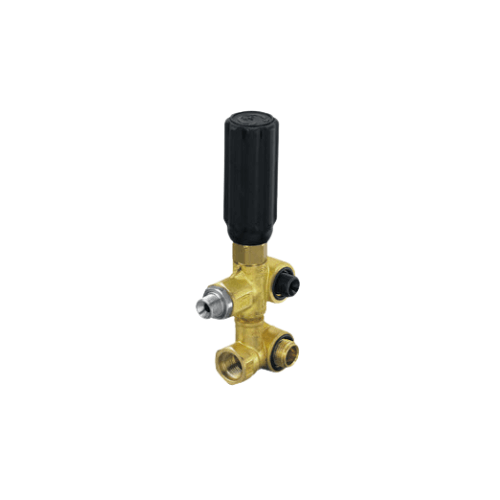

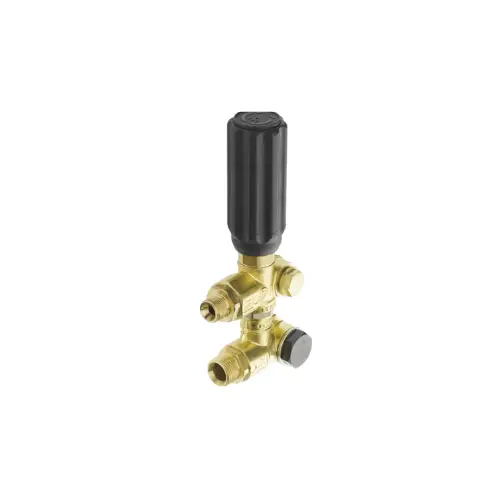

AR20080 | Gymatic 3/B Unloader Valve 3650 PSI Pressure Control

AR20080 | Gymatic 3/B Unloader Valve – 3650 PSI Pressure Control

The Annovi Reverberi AR20080, commonly referred to as the
Gymatic 3/B unloader valve, is a vital pressure-regulating and safety component
used in professional high-pressure water systems. Designed to automatically manage pressure and
flow, this valve protects pumps and downstream components by diverting water through a bypass
circuit once a preset pressure threshold is reached.

In pressure washer systems, pressure spikes often occur when the spray gun is released or flow
is temporarily restricted. Without a properly functioning unloader valve, these spikes can
cause rapid wear, seal failure, hose rupture, or even catastrophic pump damage. The AR20080
prevents these issues by ensuring pressure remains within safe operating limits while allowing
the pump to continue running smoothly.

Whether installed in commercial pressure washers, fleet washing rigs, industrial cleaning
systems, or custom-built pump assemblies, the AR20080 delivers consistent pressure control,
improved system reliability, and enhanced operator safety. For professionals who rely on their
equipment daily, this unloader valve plays a critical role in extending pump life and maintaining
stable performance.

Function and Importance

Automatic Pressure Regulation and Bypass Control

The AR20080 is a pressure-actuated unloader valve. As system pressure increases and reaches the
preset adjustment point, the valve opens internally and redirects water away from the discharge
line and into a bypass or return circuit. This action prevents pressure from continuing to rise
beyond safe limits.

• When the spray gun is closed, flow is restricted but the pump continues to move water. The
  unloader instantly reacts by bypassing excess flow, preventing pressure buildup.
• By controlling pressure spikes, the valve protects critical components such as pump seals,
  plungers, hoses, fittings, spray guns, and nozzles.
• Continuous bypass circulation reduces heat buildup in the pump head, lowering the risk of
  overheating and cavitation during idle periods.

This automatic regulation is especially important in systems with frequent trigger cycling,
intermittent cleaning patterns, or variable flow demands. In such environments, the AR20080
ensures smooth transitions between spraying and bypass modes without placing undue stress on
the pump or plumbing.

Specifications and Technical Overview

The AR20080 is engineered for compatibility with a wide range of commercial and industrial
pressure washer configurations. Its robust design allows it to handle demanding operating
conditions while maintaining precise pressure control.

• Model: AR20080 (Gymatic 3/B unloader / regulating valve)
• Maximum Pressure Rating: Up to approximately 3,650 PSI, depending on system configuration
• Typical Flow Capacity: Suitable for high-flow systems, commonly used with pumps in the 8–10 GPM range
• Inlet Connection: 1/2-inch female threaded inlet
• Outlet / Bypass Connection: 3/8-inch male threaded outlet for return or bypass hose

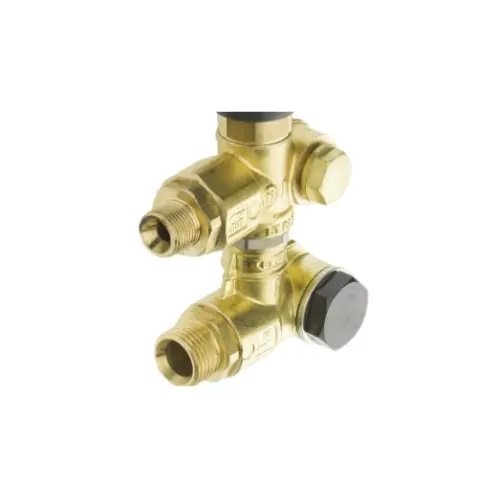

• Construction: Heavy-duty metal body designed for long-term use in high-pressure environments

These specifications make the AR20080 a versatile choice for both OEM installations and retrofit
applications. Its standardized threaded connections allow for straightforward integration into
existing systems without extensive modification.

Recommended Applications

Thanks to its reliability and adaptability, the AR20080 is used across many professional cleaning
and water-handling environments.

• Commercial pressure washer systems: Ideal for car wash bays, fleet washing
  operations, building maintenance rigs, and rental units where pressure fluctuations are common.
• Industrial cleaning setups: Suitable for factories, warehouses, and processing
  facilities where stable pressure is required for equipment washdown and floor cleaning.
• Custom-built and OEM pressure washers: A critical safety component when
  designing or upgrading pump systems to ensure controlled operation.
• Frequent start-stop applications: Particularly valuable in systems where the
  spray gun is opened and closed repeatedly throughout the workday.

In each of these applications, the AR20080 helps maintain consistent output pressure while
protecting the pump from damaging load conditions.

Installation Guidelines

Proper installation is essential for the AR20080 to function correctly and deliver maximum
protection.

• Install the valve in line with the pump discharge, positioned between the pump outlet and the
  high-pressure hose or spray gun.
• Ensure that inlet, outlet, and bypass ports are correctly oriented according to flow direction.
• Use hoses, fittings, and accessories that are rated for equal or greater pressure and flow
  than the pump and valve.
• Route the bypass line securely back to the pump inlet, buffer tank, or designated return
  location to prevent leaks or water hammer.

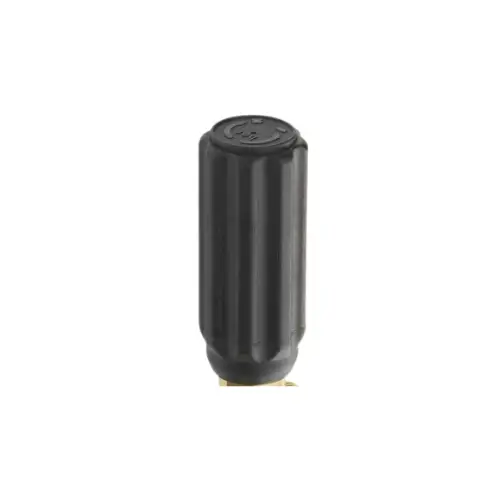

After installation, pressure should be adjusted carefully while monitoring system operation.
Improper adjustment can reduce cleaning performance or place unnecessary strain on components.

Maintenance and Service Best Practices

Routine inspection and maintenance help ensure reliable operation and extend the service life of
the AR20080 unloader valve.

• Periodically inspect seals, springs, and internal components for wear, especially in systems
  with frequent pressure cycling.
• Check all threaded connections for leaks and retighten or reseal as necessary.
• Flush the system regularly, particularly when detergents, chemicals, or hot water are used,
  to prevent residue buildup inside the valve.
• Monitor system behavior for signs of improper unloading, such as pressure spikes, chatter, or
  excessive heat buildup.

Addressing minor issues early helps prevent larger failures and reduces downtime in critical
cleaning operations.

Why Choose the AR20080 Gymatic 3/B?

The AR20080 stands out as a dependable pressure-control solution for professional users who
prioritize safety, consistency, and long-term equipment protection.

• Enhanced system safety: Automatically limits pressure and reduces the risk of
  equipment failure or operator injury.
• Extended pump life: Minimizes stress on pump components, seals, and valves
  during idle and high-load conditions.
• Versatile compatibility: Works with a wide range of commercial and industrial
  pressure washer configurations.
• Proven reliability: Manufactured by Annovi Reverberi, a trusted name in
  high-pressure pump and accessory design.
• Ease of integration: Standard port sizes and straightforward design simplify
  installation and servicing.

AR20080 | Gymatic 3/B Unloader Valve – 3650 PSI Pressure Control

The AR20080 Gymatic 3/B unloader valve is an essential component for any high-pressure
washer system that demands safe, controlled, and reliable pressure regulation. Whether used in a
custom-built rig, an industrial cleaning setup, or a commercial wash system, it plays a key role
in protecting equipment, maintaining performance, and ensuring long-term operational efficiency.

For professionals who depend on their pressure washing equipment every day, the AR20080 provides
peace of mind by delivering consistent pressure control and dependable protection under demanding
conditions.
