XWFSS9.7G15N | 9.75 GPM 2200 PSI Pump 1000 RPM SS Head 24mm

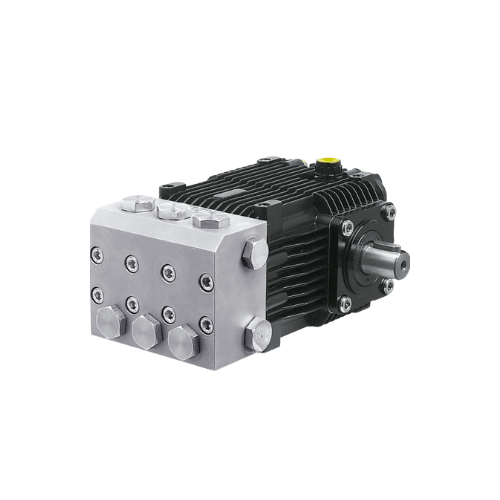

XWFSS9.7G15N Stainless Steel Industrial Plunger Pump — 9.7 GPM, 1500 PSI

High-volume stainless performance for aggressive environments

• The Annovi Reverberi XWFSS9.7G15N is a stainless steel industrial plunger pump engineered for harsh, chemically aggressive, and sanitation-critical environments.
• Delivers 9.7 GPM at 1500 PSI while running at a slow 1450 RPM, providing high volume with reduced mechanical stress and heat buildup.
• AISI 316 stainless steel wet end offers superior corrosion resistance for food-grade, marine, and chemical-processing applications.
• Triplex plunger design with ceramic plungers and premium seals is built for continuous-duty operation in demanding facilities.
• 24 mm solid keyed shaft integrates cleanly with belt-drive, gearbox, and direct-coupled industrial power trains.

Key Specifications for XWFSS9.7G15N

Critical operating data for system designers

• Model: XWFSS9.7G15N stainless steel industrial plunger pump.
• Flow Rate: 9.7 GPM (gallons per minute) for high-volume wash and CIP circuits.
• Pressure Rating:</strong > 1,500 PSI for medium-pressure sanitation, rinse, and cleaning duty.
• Speed: 1,450 RPM slow-running design for long service life.
• Shaft: 24 mm solid keyed shaft for belt or flexible-coupling drive layouts.
• Head / Manifold: AISI 316 stainless steel for maximum chemical and corrosion resistance.
• Plungers: High-strength ceramic plungers for low wear and stable performance.
• Seals: Premium-grade seal package suitable for detergents, sanitizers, and wash chemicals within rating.
• Crankcase: Oil bath crankcase with integrated sight glass and vented dipstick.
• Warranty: 5-year commercial-use warranty with U.S.-based support.

Construction & Materials

Built for chemical, food-grade, and marine duty

• AISI 316 stainless steel head and wetted components resist chloride attack, caustic solutions, and sanitation chemistries.
• Forged stainless or stainless/brass manifold structure provides dimensional stability at temperature and pressure.
• Solid ceramic plungers run against precision seal stacks to maintain tight sealing with minimal friction.
• Oversized crankshaft bearings support continuous operation at rated load, reducing vibration and shaft deflection.
• Die-cast crankcase with oil bath lubrication manages heat and provides consistent lubrication during long run cycles.
• High-quality O-rings, packings, and backup rings are selected for compatibility with typical CIP and washdown chemicals.

Performance & Operation

Slow-running industrial duty cycle

• Triplex plunger geometry produces smooth hydraulic output with reduced pulsation, protecting hoses, valves, and fittings.
• Low 1450 RPM operating speed lowers fluid velocity inside the pump, reducing internal erosion and extending component life.
• High-volume 9.7 GPM output supports multi-nozzle booms, header manifolds, and CIP spray devices in a single circuit.
• Stable mid-range 1500 PSI operating pressure offers strong cleaning force without excessive mechanical stress on piping.
• Excellent thermal behavior under continuous-duty conditions when paired with proper bypass, relief, and supply plumbing.
• Predictable performance curve simplifies nozzle sizing, header design, and CIP impact calculations in WSHPWR-grade systems.

Benefits for Plant & OEM Integration

Why model

XWFSS9.7G15N fits demanding wash and CIP systems

• Stainless wet end construction makes the pump suitable for food, beverage, pharmaceutical, and chemical processing lines that cannot tolerate corrosion or contamination from base metals.
• High flow at moderate pressure is ideal for large-area washdown, CIP spray devices, and recirculating sanitation loops.
• Slow-speed operation reduces noise, vibration, and heat, translating into longer intervals between seal and bearing services.
• 24 mm solid shaft provides flexibility for engine-driven prototypes, electric motor belt drives, or centralized pump rooms.
• Maintenance-friendly layout with front-access valve caps and visible oil level encourages routine inspections and planned service instead of emergency repairs.
• Five-year commercial warranty reflects industrial-duty expectations and supports long-term system planning.
• XWFSS9.7G15N | 9.75 GPM 2200 PSI Pump 1000 RPM SS Head 24mm.

Typical Applications

Where the XWFSS9.7G15N excels

• USDA- and FDA-style food processing plants requiring stainless washdown pumps for proteins, dairy, and ready-to-eat products.
• CIP (Clean-in-Place) circuits for beverage, brewery, and dairy tanks using spray balls, rotary heads, or fixed manifolds.
• Chemical processing facilities performing detergent, solvent, or neutralization rinses in corrosive atmospheres.
• Marine and coastal operations exposed to saltwater, brine, and humidity where brass manifolds are not sufficient.
• Recycling, waste handling, and sanitation systems pumping aggressive cleaners across long shifts.
• Centralized industrial wash stations feeding multiple hoses, foamers, or cleaning tools on a shared header.

Integration & Maintenance Practices

Design and service considerations

• Mount on a rigid base or skid with proper alignment to the motor sheave or coupling to minimize bearing load and vibration.
• Provide an oversized, filtered inlet supply with minimal restriction to avoid cavitation in high-flow sanitation loops.
• Use a correctly sized unloader, regulator, or bypass manifold to maintain stable 1500 PSI working pressure.
• Monitor crankcase oil through the sight glass and follow scheduled oil changes for long bearing and crank life.
• Inspect seals, valves, and plungers at planned intervals based on run hours, chemistry, and temperature profile.
• Document installation data, setpoints, and maintenance history as part of a WSHPWR-style asset management program.

Why Specify the XWFSS9.7G15N

Selection logic for engineers, contractors, and operators

• Combines stainless-corrosion resistance, slow-speed operation, and high flow into one industrial pump platform.
• Supports 24/7 usage in environments where downtime, contamination, or corrosion-related failures are unacceptable.
• Delivers the hydraulic performance required for serious washdown and CIP work without oversizing pressure.
• Aligned with WSHPWR.com system philosophy: industrial-grade components, predictable life cycle, and serviceable design.
• Backed by a 5-year commercial warranty and a strong North American support network for parts and technical assistance.
