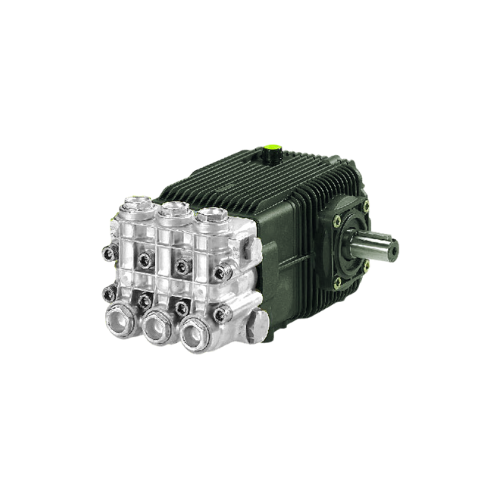

XWAM8G35NHT | 8 GPM 3500 PSI Pump 1750 RPM High Temp Rated

XWAM8G35NHT | Hot Water Triplex Pump, 8 GPM 3500 PSI, 1750 RPM, 24 mm Solid Shaft

The XWAM8G35NHT is the high-temperature version of the Annovi Reverberi XWAM 8 GPM pump, rated 8.0 GPM at 3,500 PSI at 1750 RPM, with a heat-rated seal set for water up to 185°F. Standard pumps are limited to 140°F. This one is built for machines fed with warm or recirculated water, and for hot water rigs where heat reaches the pump.

At 8 GPM it is a production pump for fleet washing, heavy equipment, degreasing and large-surface work. At 1750 RPM it couples straight to a standard 4-pole electric motor, or runs on a belt drive from a gas engine.

What’s in the Box

• XWAM8G35NHT pump with 24 mm keyed solid shaft and high-temperature seals
• Crankcase oil, pre-filled at the factory
• Vented dipstick. The pump ships with a shipping plug in the oil port. Swap in the dipstick before the first start.
• Operation manual and parts schematic
• 5-year Annovi Reverberi warranty

Will It Fit My Machine?

• Electric motor: 20 HP at 1750 RPM, direct coupled.
• Gas engine: V-twin, 680cc or larger (25 HP class) with a belt drive. Size the pulleys so the pump turns no faster than 1750 RPM.
• Hot water: feed the pump at or below 185°F. On burner machines, the pump goes before the burner.
• Inlet supply: hot water needs a positive, unrestricted feed to the inlet to prevent cavitation.

Not sure? Text a pump specialist at (505) 226-6061 with your drive details and we’ll confirm the fit.

What Else You’ll Need

The pump is sold bare. The unloader, thermal relief valve, inlet filter and rail kit are sold separately:

• Unloader valves: choose one rated for at least 3,500 PSI, 8 GPM and your water temperature. The VRT3-310EZ XW package is a matched fit.
• Thermal relief valves, inlet filters and rail kits: the TPP140 thermal relief valve, and the AR2748 rail kit for belt drive.

XWAM8G35NHT Specifications

• Model: XWAM8G35NHT
• Flow: 8.0 GPM
• Max Pressure: 3,500 PSI
• Speed: 1750 RPM
• Max Water Temperature: 185°F
• Seals: High-temperature

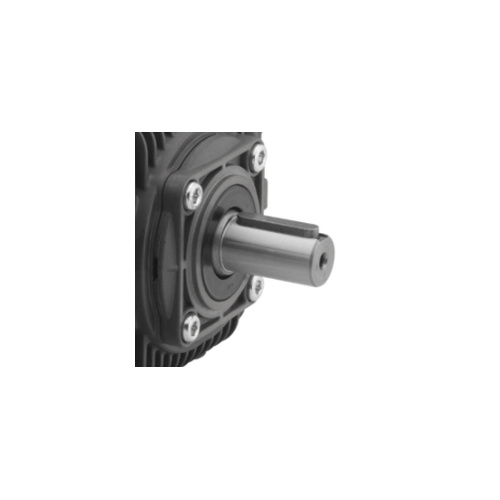

• Shaft: 24 mm solid, keyed
• Drive Size: 20 HP electric, or 680cc+ V-twin gas with belt drive

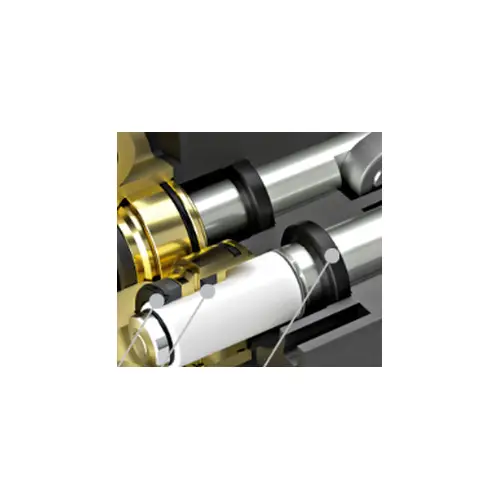

• Plungers: Ceramic
• Weight: 34 lbs
• Warranty: 5 years
• Brand: Annovi Reverberi

Shipping: Usually ships via UPS in 1 to 3 days.
