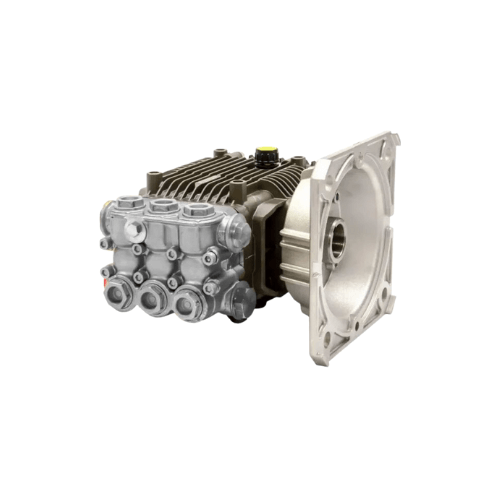

XMASS25G25E-F17 — Stainless Steel Triplex Pump, 2.5 GPM, 2,500 PSI, 1,750 RPM (F-17 / 182–184C Direct Drive)

The XMASS25G25E-F17 stainless steel pressure washer pump is a powerful, compact, and industrial-grade solution for operators who require high pressure, consistent performance, and corrosion resistance in commercial cleaning systems. Designed for direct-mount integration with NEMA 182/184C electric motors, this model features a precision-machined 5/8” hollow shaft and an F-17 flange, ensuring seamless coupling and efficient power transfer.

Delivering 2.5 GPM at 2,500 PSI, the XMASS25G25E-F17 is a top-performing choice for commercial, industrial, and OEM washdown applications where long-term durability and reliability are essential.

Engineered with stainless steel valves, solid ceramic plungers, and a corrosion-resistant anodized crankcase, this pump is built to withstand chemical exposure, thermal stress, and extended run times. Operating at 1,750 RPM, it maintains quiet, smooth performance with reduced vibration and increased bearing life. The built-in vented dipstick and oil sight glass allow quick maintenance checks to minimize downtime in demanding environments.

Every XMASS25G25E-F17 is factory-tested for flow, pressure, and sealing integrity before shipment. It arrives pre-filled with break-in oil and includes complete documentation—manual, schematics, and performance test report. Backed by a 5-year commercial warranty and U.S.-based service support, this pump offers unmatched long-term value.

Key Features & Specifications

• Flow Rate: 2.5 GPM
• Operating Pressure: 2,500 PSI
• Speed: 1,750 RPM
• Mounting: F-17 flange for 182/184C electric motors
• Shaft: 5/8” hollow shaft for direct-drive coupling
• Head: Stainless steel for corrosion resistance
• Crankcase: Anodized aluminum with superior chemical resistance
• Valves: Stainless steel for long-term durability
• Plungers: Solid ceramic for heat and wear protection
• Seals: High-grade seals engineered for chemical and thermal resistance
• Maintenance: Oil sight glass and vented dipstick
• Testing: Factory-tested and performance verified
• Warranty: 5-year commercial coverage with U.S. support

What’s Included with XMASS25G25E-F17

• Pre-installed break-in oil for immediate startup
• Oil sight glass and vented dipstick
• Factory performance test report
• Owner’s manual and full schematic documentation
• 5-year commercial warranty

Benefits of the XMASS25G25E-F17

• Direct-Mount Efficiency: F-17 flange and hollow shaft allow direct motor mounting without extra adapters.
• Compact Power: Delivers 2,500 PSI at 2.5 GPM—ideal balance for multi-purpose cleaning systems.
• Industrial Durability: Stainless steel head and valves resist scaling, rust, and chemical attack.
• Low Maintenance: Sight glass and vented dipstick simplify lubrication checks.
• Peace of Mind: Fully factory-tested and covered by a 5-year warranty.

Typical Applications for Stainless Steel Manifold Pumps

• Fleet wash trailers: Acid washing for trucks, buses, and municipal vehicles.
• Vehicle rental depots: Fast cleaning turnaround for high-volume rental fleets.
• HVAC coil cleaning: Stable flow and pressure for cooling unit maintenance.
• Theme parks and entertainment: Maintains cleanliness in high-traffic areas.
• USDA-compliant food plants: Stainless steel design supports sanitation requirements.
• Fire departments: Ideal for rapid decontamination and hose cleaning.
• Restaurant hood/duct cleaning: High pressure to remove grease and residue.

Conclusion

Whether replacing an existing unit, building an OEM skid, or outfitting a commercial washdown system, the XMASS25G25E-F17 offers the perfect balance of power, efficiency, and durability. Its stainless steel construction, direct-drive compatibility, and 5-year warranty make it one of the most reliable pumps available for continuous-duty applications.

XMASS25G25E-F17

2.5 GPM, 2500 PSI, 1750 RPM, Stainless steel head, Ceramic plungers, F-17 flange, 182/184C mount, Hollow shaft pump, Direct motor mount, 5-year warranty
