XMA3G25E-F33 3.0 GPM 2500 PSI | 1750 RPM F33-frame pump

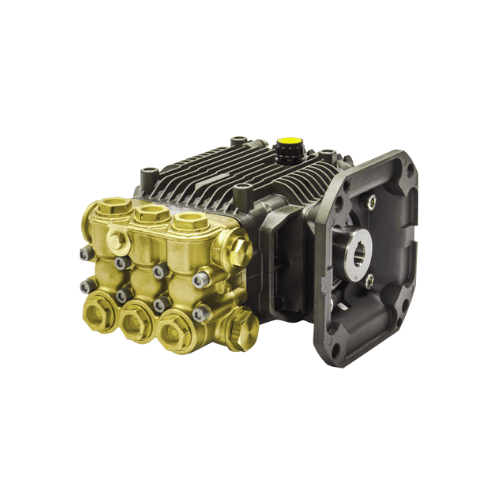

Annovi Reverberi XMA3G25E-F33 Triplex Plunger Pump

The Annovi Reverberi XMA3G25E-F33 is a dependable triplex plunger pump built for electric-driven
pressure washer systems that need steady performance and long service life. Producing 3.0 GPM at
2,500 PSI and running at a cooler 1,750 RPM, it delivers strong cleaning power without the
high-RPM wear and vibration common in many entry-level pumps.

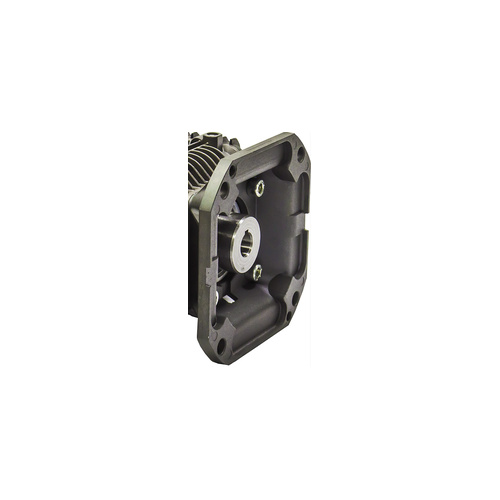

The F33 flange is designed for direct motor mounting, helping simplify installation and keep alignment

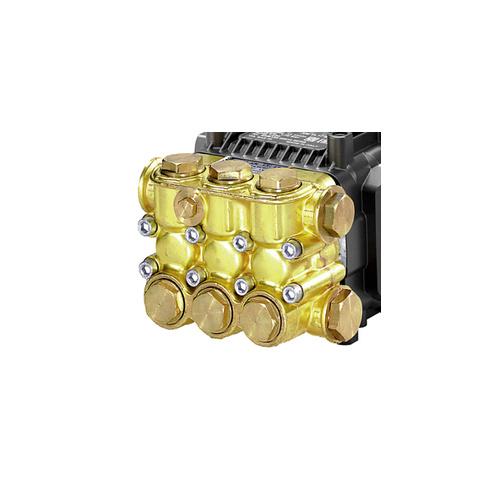

consistent. With a brass manifold, ceramic plungers, and stainless steel valves, the XMA3G25E-F33 is a solid fit for
homeowners, maintenance teams, and light commercial users who want smooth output and straightforward maintenance.

Key Specifications

• Flow Rate: 3.0 GPM
• Maximum Pressure: 2,500 PSI
• Operating Speed: 1,750 RPM
• Mounting: F33 electric motor flange (direct-couple design)
• Shaft: Motor-coupling shaft per F33 configuration
• Pump Type: Triplex plunger pump
• Construction: Brass manifold, ceramic plungers, stainless steel valves
• Maintenance: Oil sight glass and vented dipstick
• Warranty: 5-year manufacturer warranty

What’s Included with XMA3G25E-F33

• Factory break-in oil pre-installed
• Vented dipstick for quick oil checks
• Oil sight glass for easy monitoring
• Operator’s manual and parts schematic

How It Produces Pressure

The triplex plunger design uses three plungers working in sequence to create consistent flow with reduced pulsation.
That smoother delivery helps protect seals, valves, hoses, and spray accessories—especially during longer run times or
frequent start/stop cleaning cycles.

Running at 1,750 RPM reduces heat and mechanical stress, which supports longer service intervals and more
stable day-to-day performance. The direct-mount F33 flange keeps the pump/motor connection compact and
efficient, making it a practical choice for tight equipment layouts.

Benefits of the XMA3G25E-F33

• Balanced performance: 3.0 GPM at 2,500 PSI for versatile cleaning power
• Cooler operation: 1,750 RPM helps reduce wear and vibration
• Direct motor mounting: F33 flange supports a clean, compact installation
• Pro-grade internals: Brass manifold, ceramic plungers, stainless valves
• Simple maintenance: Sight glass and vented dipstick for fast checks

Typical Applications

• Vehicle washing and detailing—cars, trucks, boats, RVs
• Driveways, patios, decks, siding, fencing, and outdoor furniture
• Equipment cleanup—mowers, small tractors, tools, light construction gear
• Property maintenance for homeowners and small facilities
• Light commercial wash tasks—small fleets, shops, and routine cleanup

Why Choose the XMA3G25E-F33?

The XMA3G25E-F33 is a strong upgrade path when you want smoother triplex performance, lower RPM longevity, and a
direct-mount electric configuration. It’s designed to deliver consistent pressure, easier maintenance, and dependable
cleaning results for residential and light commercial use—backed by a 5-year warranty and broad service support.
