XMA3G18E-F33SXV Viton Triplex Pump | 3.0 GPM 1800 PSI

XMA3G18E-F33SXV — Hot-Water Triplex Pump, 3.0 GPM, 1,800 PSI, 1,750 RPM

The Annovi Reverberi XMA3G18E-F33SXV is a hot-water capable triplex plunger pump engineered for
reliable power, efficiency, and durability in residential and light commercial cleaning systems. Delivering
3.0 GPM at up to 1,800 PSI, it provides steady cleaning strength without being overly aggressive
on sensitive surfaces. Equipped with Viton seals and rated for water temperatures up to
185°F, this model is built for demanding jobs where standard cold-water pumps would quickly fall
short.

Designed to operate at a low-stress 1,750 RPM with an F33SXV flange configuration,
the XMA3G18E-F33SXV integrates cleanly with compatible electric motors. Its robust construction, hot-water
rating, and chemical-resistant sealing package make it a long-lasting solution for professional-grade cleaning
applications.

Key Specifications

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 1,800 PSI
• Operating Speed: 1,750 RPM
• Pump Type: Triplex ceramic plunger pump
• Flange Type: F33SXV for direct electric motor mounting
• Seals: Viton seals for hot water and chemical resistance
• Temperature Rating: Handles water up to 185°F

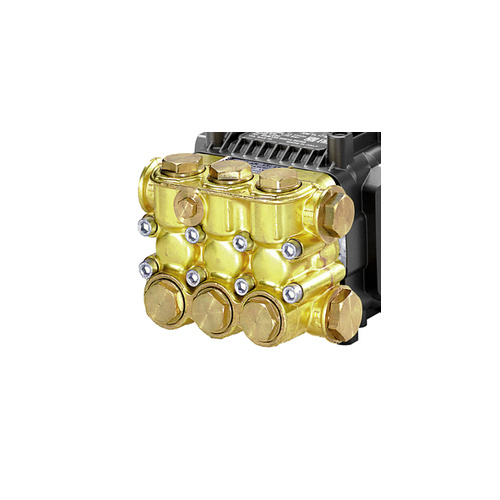

• Manifold: Brass for strength and corrosion resistance
• Valves: Stainless-steel valves for consistent flow and long life
• Warranty: 5-year manufacturer’s warranty

What’s Included with the XMA3G18E-F33SXV

• Factory pre-filled crankcase with premium break-in oil
• Vented dipstick for easy servicing and crankcase ventilation
• Oil sight glass for quick visual oil-level and condition checks
• Viton sealing package for hot water and detergent resistance
• Full operator’s manual with installation, maintenance, and parts guide
• Backed by a 5-year manufacturer warranty
• Nationwide technical support and service availability

How the XMA3G18E-F33SXV Works

• A triplex plunger design uses three ceramic plungers cycling in sequence to generate smooth,
  steady high-pressure flow with reduced pulsation.
• Viton seals are engineered to tolerate elevated temperatures and aggressive detergents, making
  the pump suitable for hot-water cleaning up to 185°F.
• A durable brass manifold resists corrosion, while
  stainless-steel valves maintain precise water flow and sealing under frequent use.

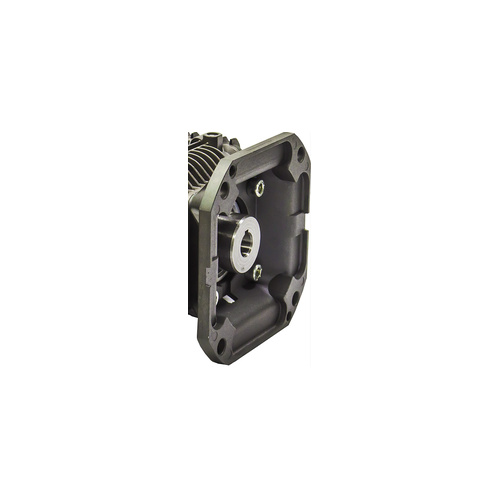

• The F33SXV flange mount provides secure, straightforward integration with compatible electric
  motors, simplifying both new builds and replacement installations.
• Low-RPM operation at 1,750 RPM reduces mechanical stress, heat, and vibration, extending seal,
  bearing, and crankcase life.

Benefits of the XMA3G18E-F33SXV Pump

• Hot water capable: Rated for inlet temperatures up to 185°F for tougher cleaning tasks.
• Viton seals: Provide excellent chemical and heat resistance for detergent-heavy environments.
• Balanced performance: 1,800 PSI at 3.0 GPM delivers strong cleaning power while protecting
  delicate surfaces.
• Low RPM durability: 1,750 RPM operation increases service life and reduces wear.
• Easy maintenance: Oil sight glass and vented dipstick make daily checks quick and visual.
• Versatile usage: Suitable for residential, light commercial, and hot-water cleaning systems.
• Warranty protection: Covered by a 5-year manufacturer warranty with nationwide support.

Typical Use Cases

• Residential cleaning: Vehicles, patios, driveways, siding, decks, and outdoor furniture.
• Commercial cleaning: Service businesses requiring reliable hot-water cleaning, such as auto
  detailers and pressure washing contractors.
• Industrial maintenance: HVAC coil cleaning, shop floors, and equipment washdown where heat and
  detergents improve results.
• Fleet & vehicle wash: Hot-water detergent cleaning for cars, trucks, and vans.
• Agricultural use: Barns, tools, and equipment where caked-on dirt and grease must be removed.

Why Choose the XMA3G18E-F33SXV?

• Hot-water ready: Purpose-built for elevated inlet temperatures and detergent-rich cleaning
  environments.
• Viton sealing system: Outlasts standard seals in chemically aggressive and high-temperature
  applications.
• Triplex plunger reliability: Delivers smooth, consistent pressure and longer component life.
• Low-RPM efficiency: 1,750 RPM operation balances strong output with reduced wear and noise.
• Flexible integration: F33SXV flange simplifies motor coupling for upgrades and new installations.
• Long-term value: Backed by a 5-year warranty and nationwide technical support network.

SEO-Optimized Summary

• The Annovi Reverberi XMA3G18E-F33SXV triplex plunger pump delivers
  3.0 GPM at 1,800 PSI and 1,750 RPM, with an
  F33SXV motor flange, Viton seals, and hot-water capability to 185°F.
• Ideal for residential, light commercial, fleet, and agricultural cleaning, it offers reliable
  hot-water performance, chemical resistance, easy maintenance, and a 5-year warranty for
  long-term, professional-grade results.
