TPR350-06 Rotating Nozzle | 5075 PSI Turbo Cleaner

TPR350-06 Rotating Nozzle | 5075 PSI Turbo Cleaner

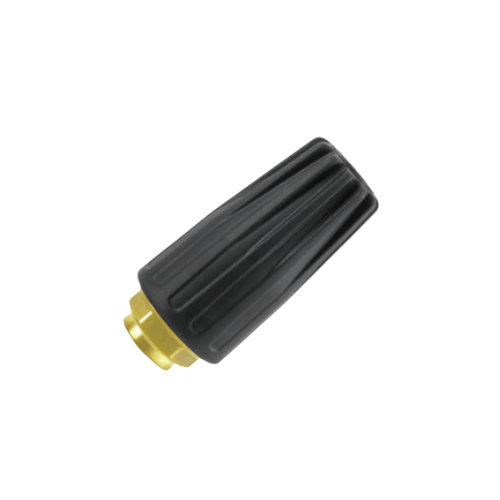

The Annovi Reverberi TPR350-06 Rotary Turbo Nozzle is a high-pressure rotating jet nozzle
built for professionals who need maximum impact and high flow for demanding cleaning and jetting work.
Equipped with a 6.0 nozzle size, a rugged 1/4″ female inlet, and a
maximum working pressure of 5,075 PSI, this nozzle transforms the output of your pressure
washer or jetter into a high-speed rotating zero-degree jet. The result is an ultra-aggressive rotary cone
pattern that chews through heavy contamination, hardened deposits, and stubborn buildup on concrete, steel,
masonry, and other durable surfaces far faster than standard fan tips.

Part of AR’s premium TPR350 high-pressure rotary series, the TPR350-06 is designed around a
durable brass body and a long-lasting ceramic orifice, paired with a
precision-balanced internal rotor engineered for continuous-duty use in harsh environments. Rated for water
temperatures up to 212°F (100°C), it integrates seamlessly with hot-water pressure
washers and jetters for degreasing, sanitation, and industrial washdown where heat dramatically speeds up
results. For operators running high-flow, high-pressure systems, this 6.0-size nozzle delivers a powerful
combination of impact, coverage, and durability.

Key Specifications

• Model: TPR350-06 High-Pressure Rotary Turbo Nozzle
• Nozzle Size (Orifice): 6.0
• Maximum Pressure: 5,075 PSI (350 bar)
• Maximum Temperature: 212°F (100°C), hot-water compatible
• Spray Angle: Approx. 20° rotating cone pattern
• Inlet Connection: 1/4″ female (1/4″ F)
• Body Material: Brass housing with impact-resistant design
• Orifice Material: Ceramic tip for wear resistance and precise jet geometry
• Application Class: Commercial, industrial, and contractor-grade heavy-duty cleaning

Performance & Design Highlights

• High-flow 6.0 orifice: The 6.0 nozzle size is tuned for higher-GPM professional pumps,
  passing more water while still focusing it into a tight rotating stream. This makes the TPR350-06 ideal for
  large-area cleaning, industrial washdown, and heavy jetting work where throughput matters.
• 5075 PSI high-pressure rating: Built to run at serious pressure levels, this nozzle provides
  the deep cutting power needed for tough contamination, hardened deposits, and severe industrial soil loads.
• Rotating zero-degree jet: Water is focused into a pinpoint stream and spun at high RPM by
  the internal rotor, multiplying impact compared with traditional fan tips or fixed 0° nozzles and
  dramatically accelerating removal of heavy buildup.
• 20° rotary cone pattern: The spinning jet sweeps a tight cone that effectively “scrubs”
  the surface, reducing striping and producing a more uniform cleaning path across wide concrete slabs,
  hardscape, and equipment surfaces.
• Hot-water ready construction: With a 212°F temperature rating and ceramic orifice, the
  TPR350-06 is an excellent match for hot-water units used in degreasing bays, food and equipment plants, and
  industrial sanitation applications.
• Engineered for daily professional use: A brass body, hardened internals, and balanced rotor
  assembly are designed to withstand vibration, pressure cycling, and extended operating hours in demanding
  contractor and plant environments.

Typical Applications

• Large concrete and flatwork cleaning: Ideal for big parking lots, fueling pads, loading
  docks, warehouse floors, aprons, and drive lanes where tire marks, oil stains, and embedded grime require
  aggressive removal.
• Industrial washdown & facility cleaning: Excellent for plant floors, containment areas,
  production zones, and wash bays that accumulate slurry, scale, and stubborn residues from manufacturing or
  handling operations.
• Fleet and heavy equipment maintenance: Attacks compacted mud, clay, grease, and road film
  on trucks, trailers, refuse vehicles, agricultural equipment, and construction machinery.
• Hardscape and exterior restoration: Restores retaining walls, block buildings, stadium
  steps, decorative concrete, and stone or masonry surfaces impacted by mildew, soot, atmospheric deposits,
  and urban grime.
• Pre-treatment and surface prep: Helps break down thick contaminants, chalky sealers, and
  deteriorated coatings on concrete or steel before chemical cleaning, mechanical prep, or recoating.

Sizing & Compatibility Recommendations

• The 6.0 orifice size is best matched with high-flow professional pressure washers and
  jetters. Always confirm your machine’s GPM and PSI against nozzle sizing charts to ensure
  proper pump loading and optimal rotor performance.
• Do not exceed the 5,075 PSI maximum pressure or the 212°F temperature
  rating to protect both the nozzle and the rest of your system.
• The 1/4″ F inlet threads directly on to most commercial spray wands, guns, and jetter
  hoses, and can be easily adapted using common quick-coupler fittings in contractor and industrial setups.
• Because of its concentrated rotary impact and high flow, the TPR350-06 is not recommended for
  delicate materials such as soft wood, thin siding, lightweight plastics, or freshly coated
  surfaces—always test in an inconspicuous area and adjust standoff distance as needed.
• For sewer or drain applications (when used in appropriate assemblies), always ensure hoses, couplings,
  swivels, and PPE are rated to at least the same pressure and temperature envelope as the nozzle.

Maintenance & Best Practices

• Flush before use: Purge hoses, filters, and supply lines before installing the TPR350-06 to
  keep sand, grit, and debris away from the ceramic orifice and rotor assembly.
• Start on a durable target: Bring the rotor up to speed with the spray aimed at a robust
  surface such as concrete or a wash pad, then move into the main work area once the pattern has stabilized.
• Control your standoff distance: Move closer for maximum cutting power on tough industrial
  surfaces; back off slightly where there is risk of etching, scarring, or damaging joints and coatings.
• Inspect regularly: Watch for changes in sound, rotation speed, spray uniformity, or visible
  leaks—these signals indicate internal wear or damage and mean the nozzle should be serviced or replaced.
• Plan for uptime: For high-usage crews, keeping a spare TPR350-06 or compatible repair kit
  on hand minimizes downtime and ensures you always have full cleaning power ready for the next job.
