TPR350-07 Rotating Nozzle | 5075 PSI Turbo Cleaner

TPR350-07 Rotating Nozzle | 5075 PSI Turbo Cleaner

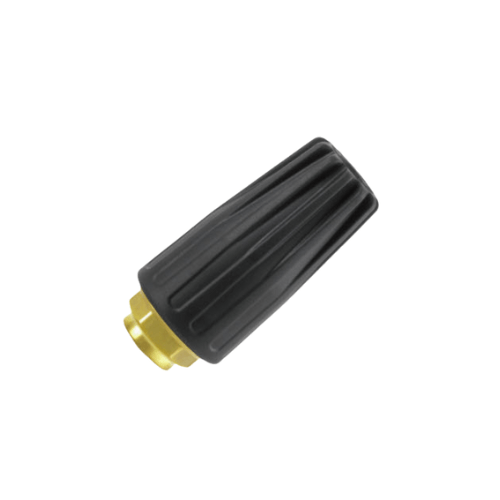

The Annovi Reverberi TPR350-07 Rotary Turbo Nozzle is a heavy-duty, high-pressure rotating jet
nozzle engineered for contractors, municipalities, and industrial users who require maximum impact and high
flow for demanding cleaning, jetting, and restoration tasks. Built around a large 7.0 nozzle size,
a rugged 1/4″ female inlet, and a maximum operating pressure of 5,075 PSI,
this nozzle converts pump output into a fast-spinning, high-energy zero-degree jet. The result is a powerful
rotary cone that tears through hardened buildup, thick scale, grease rings, and stubborn deposits on concrete,
steel, masonry, and within sewer and drain lines far faster than standard fan tips.

Constructed on AR’s premium TPR350 high-pressure rotary platform, the TPR350-07 features a
robust brass housing, a wear-resistant ceramic orifice, and a precision-balanced
rotor assembly designed for continuous-duty operation in harsh environments. Rated for water temperatures up to
212°F (100°C), it integrates seamlessly with hot-water pressure washers and jetters,
making it especially effective for industrial degreasing, sanitation, and pipe rehabilitation where heat
accelerates cleaning performance. For operators using high-GPM, high-pressure systems, this 7.0-size nozzle
delivers unmatched throughput, aggressive cutting action, and long-term durability on the toughest jobs.

Key Specifications

• Model: TPR350-07 High-Pressure Rotary Turbo Nozzle
• Nozzle Size (Orifice): 7.0
• Maximum Pressure: 5,075 PSI (350 bar)
• Maximum Temperature: 212°F (100°C), hot-water compatible
• Spray Pattern: Approx. 20° rotary cone
• Inlet Connection: 1/4″ female (1/4″ F)
• Body Material: Brass housing with reinforced construction
• Orifice Material: Ceramic tip for stability and extended wear life
• Application Class: Commercial, industrial, municipal, and contractor-grade heavy-duty cleaning

Performance & Design Highlights

• High-throughput 7.0 orifice: The 7.0 size TPR350-07 is engineered for high-flow professional pressure
  washers and jetters, moving substantial water volume while still focusing it into a tight, high-RPM rotary
  jet. This combination significantly increases material removal rates in large or difficult environments.
• 5075 PSI pressure rating: Provides exceptional cutting energy for breaking through heavy,
  compacted, or hardened contamination on industrial surfaces and within pipe systems.
• Rotating zero-degree jet: Instead of a static 0° stream, the rotor spins the jet at high
  speed, multiplying impact energy and creating a chisel-like effect that outperforms standard nozzles in
  heavy soil conditions.
• 20° rotary cleaning cone: Sweeps the cutting point across a circular path, providing
  consistent coverage, reducing striping, and delivering uniform cleaning results on concrete, steel, and
  large surfaces.
• Hot-water capable: With its 212°F rating and ceramic internals, the TPR350-07 is ideal
  for use in grease-heavy industrial environments, food processing areas, and sewer applications where heated
  water dramatically improves cleaning.
• Continuous-duty design: A brass housing, reinforced internals, and a balanced rotor deliver
  reliability under long operating cycles, making this nozzle a top choice for daily professional use.

Typical Applications

• Sewer and drain jetting: Ideal for penetrating thick grease rings, scale buildup, sludge,
  and hardened deposits inside sewer laterals, branch lines, and main drains—especially when paired with
  high-flow jetter systems.
• Large-scale concrete and flatwork cleaning: Excels on parking lots, loading docks,
  fueling pads, warehouses, aprons, and industrial yards where heavy staining and embedded contaminants
  require intense rotary cutting action.
• Industrial washdown: Perfect for manufacturing, processing, and plant maintenance areas
  where slurry, buildup, and stubborn residues accumulate.
• Fleet and heavy equipment cleaning: Removes compacted mud, road film, grease, and clay from
  trucks, trailers, agricultural machinery, and construction equipment.
• Pre-treatment and restoration: Breaks down deteriorated coatings, heavy scale, chalked
  sealers, and long-neglected residues before chemical cleaning, mechanical prep, or surface recoating.

Sizing & Compatibility Recommendations

• The 7.0 orifice size is designed for high-flow pressure washers and jetters. Always verify
  your machine’s GPM and PSI against nozzle sizing charts to ensure correct pump loading and
  proper rotor performance.
• Do not exceed the 5,075 PSI maximum pressure or 212°F temperature
  rating to protect both the nozzle and the overall system.
• The 1/4″ F inlet installs quickly onto most commercial spray wands, jetter lines, and
  high-pressure fittings, and works with industry-standard quick-connect adapters.
• Due to its intense rotary cutting action, this nozzle is not suitable for delicate surfaces
  such as thin siding, soft wood, lightweight plastics, or recently coated materials—always test on a small
  area first.
• For sewer/drain work, use hoses, couplings, and PPE rated for equal or greater pressure and temperature
  capacity.

TPR350-07 Rotating Nozzle | 5075 PSI Turbo Cleaner

Maintenance & Best Practices

• Flush the system before use: Prevent sand, sediment, or debris from entering the ceramic
  orifice and rotor assembly by purging supply lines and filters thoroughly.
• Stabilize before engagement: Start on a durable surface or inside the pipe, allowing the
  rotor to reach full operating speed before moving toward sensitive or critical targets.
• Adjust standoff distance: Move closer for maximum cutting power on hard surfaces or heavy
  buildup; increase distance to avoid unwanted etching or scarring.
• Inspect frequently: Changes in jet sound, rotation speed, or pattern uniformity often
  indicate internal wear or the need for maintenance.
• Keep a spare ready: For high-usage environments, maintaining an additional TPR350-07 nozzle
  or a compatible repair kit minimizes downtime and ensures uninterrupted productivity.
