TPR255-03 Rotating Nozzle | 3700 PSI Turbo Cleaner

TPR255-03 Rotating Nozzle | 3700 PSI Turbo Cleaner

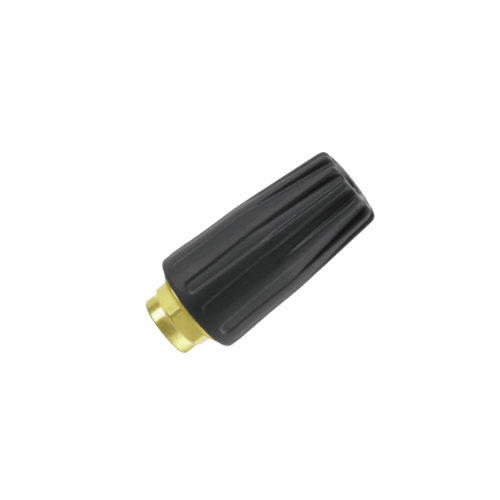

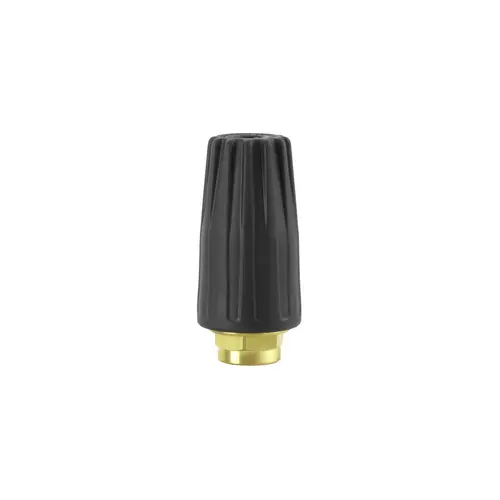

The Annovi Reverberi TPR255-03 Rotary Turbo Nozzle is a professional-grade rotating jet
accessory engineered to deliver significantly higher impact force than standard spray tips. Rated up to
3,700 PSI with a durable 1/4″ F inlet, the TPR255-03 combines a focused
zero-degree stream with a rapidly spinning cone pattern, producing an aggressive cutting action ideal for
deep-cleaning hard surfaces. The 03 orifice size makes this model suitable for mid-flow commercial pressure
washers commonly used in contractor, facility maintenance, and agricultural washdown environments.

Like all nozzles in the TPR255 series, the TPR255-03 is built with a rugged brass
body, precision internal rotor, and high-strength ceramic components designed to withstand the heat,
pressure, and vibration of continuous operation. It is rated for water temperatures up to
212°F (100°C), allowing compatibility with many hot-water systems while maintaining
stable rotor speed and consistent spray quality. When matched correctly to pump GPM and PSI, this turbo nozzle
delivers dramatically faster cleaning times and improved penetration on concrete, metal, brick, and equipment
surfaces.

Key Specifications

• Model: TPR255-03 Rotary Turbo Nozzle
• Maximum Pressure: 3,700 PSI (255 bar)
• Maximum Temperature: 212°F (100°C)
• Inlet Connection: 1/4″ female
• Nozzle Orifice Size: 03
• Body Material: Brass with wear-resistant internal components
• Spray Pattern: Rotating zero-degree jet producing a tight, high-energy cone
• Application Class: Commercial and light-industrial pressure washing

How the TPR255-03 Turbo Nozzle Works

• The nozzle’s 03 orifice focuses pump output into a pinpoint jet that drives the internal
  rotor at high speed, producing a rapid circular motion.
• This rotation converts a single zero-degree stream into a tight high-impact cone, greatly
  increasing cleaning force compared with fixed fan tips.
• The spinning action not only cuts deeper into buildup but also distributes energy across a small working
  area, improving cleaning speed on concrete, metal, and masonry.
• Correct sizing ensures the rotor spins at optimal RPM, preventing stalling or excessive heat while maximizing
  penetration.

Typical Applications

• Concrete and flatwork cleaning: Sidewalks, curbs, parking lots, patios, loading docks, and
  warehouse floors where embedded dirt, tire marks, and mildew require concentrated removal power.
• Fleet and equipment washdown: Trucks, trailers, heavy equipment, agricultural machinery, and
  construction gear with dried mud, clay, and road film.
• Building and exterior cleaning: Brick, stone, masonry, and textured surfaces needing periodic
  restorative cleaning beyond what a 15° or 25° tip can achieve.
• Grounds and facility maintenance: Removal of algae, moss, loose paint, heavy contaminants,
  and organic buildup on durable surfaces.
• Surface prep: Pre-cleaning before staining, painting, sealing, or coating concrete and metal
  surfaces.

Sizing & Compatibility Tips

• The 03 orifice is generally matched with pressure washers in the mid-flow range; verify compatibility with
  your pump’s GPM and PSI for safe, efficient operation.
• Rated for up to 3,700 PSI—do not exceed this value to prevent internal rotor or orifice
  damage.
• Standard 1/4″ F inlet allows quick connection to most spray guns, wands, and
  quick-connect adapters already in service.
• For hot-water systems, ensure inlet water does not exceed 212°F to maintain proper rotor
  performance and longevity.

Maintenance & Best Practices

• Always flush water lines before installation—debris can damage the ceramic orifice and internal rotor
  mechanism.
• Avoid using the turbo nozzle on soft surfaces (wood, siding, plastics) at close range due to its concentrated
  impact force.
• Maintain safe standoff distance until pattern and intensity are appropriate for the material being cleaned.
• Inspect periodically for external cracks, leaks, or reduced spin performance—these indicate wear and the need
  for service or replacement.
• For heavy-use operations, consider the availability of TPR255-series repair kits to refresh
  internal components and extend nozzle lifespan.
