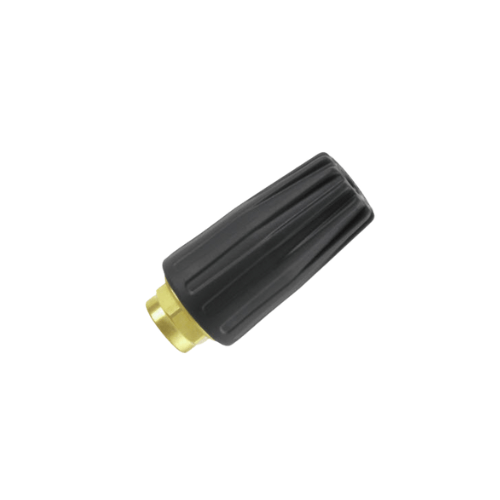

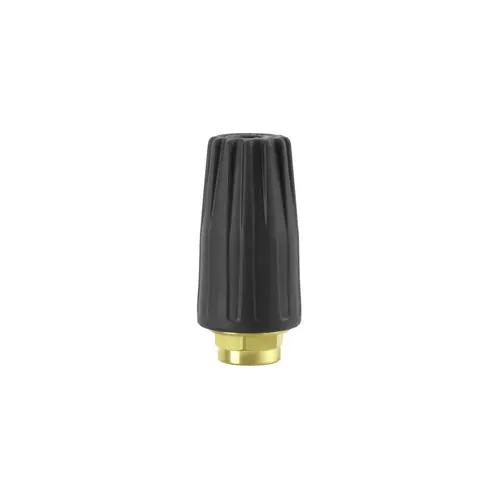

The Annovi Reverberi TPR255-025 Rotary Nozzle is a compact, heavy-duty turbo nozzle designed
to dramatically increase cleaning power from small and mid-size pressure washers. Rated up to
3,700 PSI with a 1/4″ F inlet, this rotary head concentrates pump output into
a tight spinning jet that aggressively cuts through grime, oxidation, and buildup on concrete, metal,
masonry, vehicles, and equipment. By combining the impact of a zero-degree stream with a fast rotating cone,
the TPR255-025 delivers faster strip rates and deeper cleaning compared with standard fan tips at the same
flow and pressure.

Built on AR North America’s proven TPR255-series turbo nozzle platform, the 025 model uses a
nozzle size 2.5 orifice, making it well-suited for machines in the light commercial range when properly
matched to pump flow and pressure. The rugged brass body and internal components are engineered
for long service life under demanding use, and the nozzle is rated for water temperatures up to
212°F (100°C), allowing compatibility with many hot-water systems that operate within the
pressure range.

Key Specifications

• Model: TPR255-025 Rotary Nozzle (turbo / Rotojet style)
• Maximum Pressure: 3,700 PSI (255 bar) :contentReference[oaicite:0]{index=0}
• Maximum Temperature: 212°F (100°C) :contentReference[oaicite:1]{index=1}
• Inlet Connection: 1/4″ female (1/4″ F) :contentReference[oaicite:2]{index=2}
• Nozzle Size: 2.5 (orifice size 025) :contentReference[oaicite:3]{index=3}
• Body Material: Brass construction for durability and corrosion resistance :contentReference[oaicite:4]{index=4}
• Type: Rotary / turbo nozzle with spinning zero-degree jet
• Typical Use: Professional and light-industrial pressure washing applications

How the TPR255-025 Rotary Nozzle Works

• Inside the nozzle, a precision orifice focuses pump output into a zero-degree stream, which
  then drives a small internal rotor to spin at high speed. This creates a tight, conical spray pattern that
  sweeps the cleaning surface.
• The rotating jet multiplies impact energy on the surface compared with a standard fan tip,
  helping remove stubborn grime, scale, moss, and light coatings while covering more area than a fixed pinpoint jet. :contentReference[oaicite:5]{index=5}
• The 025 orifice is designed to be matched to the flow and pressure of the pressure washer; when
  paired correctly, it maintains optimal rotor speed and cleaning performance without overloading the pump.
• Because the pattern is both concentrated and rotating, operators can often clean faster at the same
  pressure, reducing total job time on flatwork, equipment, and heavily soiled surfaces.

TPR255-025 Rotating Nozzle | 3700 PSI Turbo Cleaner

Typical Applications

• Concrete and hard surface cleaning: Driveways, parking pads, loading docks, sidewalks, and
  warehouse floors where embedded dirt, tire marks, and light oil stains need more bite than a standard fan tip.
• Fleet and vehicle wash: Trucks, trailers, construction equipment, and farm machinery where
  caked mud, road film, and grime collect in corners, wheel wells, and chassis areas.
• Building and facility maintenance: Masonry, brick, stone, and block walls; steps; ramps; and
  exterior surfaces that need periodic deep cleaning.
• Surface prep work: Prepping metal and concrete prior to painting or coating, removing loose
  flaking material and heavy contaminants without moving up to ultra-high-pressure systems.
• Industrial and agricultural sites: Equipment wash bays, processing areas, and general
  cleaning where tougher deposits and residues accumulate on rigid surfaces.

Sizing & Compatibility Tips

• The TPR255-025’s 2.5 nozzle size is typically paired with compact and mid-size pressure washers;
  always verify sizing against your pump’s GPM and PSI to maintain safe operating load and proper rotor speed.
• Suitable for machines up to 3,700 PSI; do not exceed the rated pressure or temperature to avoid
  premature wear or damage to the nozzle and other system components. :contentReference[oaicite:6]{index=6}
• Uses a standard 1/4″ F inlet, allowing simple connection to most professional spray guns,
  lances, and quick-coupler systems configured with 1/4″ outlets.
• When used with hot water equipment, confirm system temperature does not exceed the 212°F
  maximum rating and that the rest of the accessories in the circuit share compatible limits.

Maintenance & Best Practices

• Install an upstream inlet filter and ensure water is free of grit and debris; foreign particles
  can damage the internal orifice and rotor, reducing performance.
• Avoid extended dry-running or cavitation conditions; always operate the nozzle with adequate water supply and
  correct nozzle sizing for the pump.
• Periodically inspect the nozzle exterior and connection for leaks, cracks, or impact damage.
  Replace worn or damaged nozzles promptly to maintain safe operation.
• For high-hour users, AR offers repair kits for TPR255-series rotary nozzles so internal wear
  components can be renewed instead of replacing the entire assembly. :contentReference[oaicite:7]{index=7}
• Train operators to keep the spinning jet in motion and to maintain recommended distance from the surface; the
  concentrated impact of a turbo nozzle can mark softer materials if held too close.
