SXWA55G50NHT | Hot Water Triplex Pump, 5.5 GPM 5000 PSI, 1750 RPM

Overview

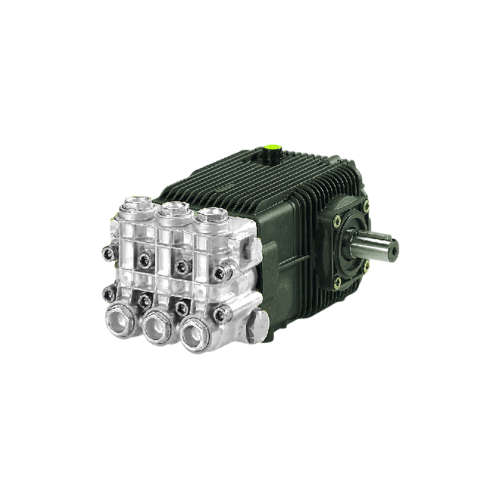

The Annovi Reverberi SXWA55G50NHT is a heavy-duty hot water pressure washer pump
built for high-performance cleaning in demanding commercial and industrial environments. Delivering
5.5 GPM at 5,000 PSI and running at 1,750 RPM, this model is
engineered to provide exceptional power, reliability, and durability. With its
24mm solid shaft, stainless steel valves, and
ceramic plungers, the SXWA55G50NHT is a trusted solution for extended-duty cleaning
systems that require both extreme pressure and heat resistance.

Unlike standard cold-water pumps, the SXWA55G50NHT is specifically designed to handle inlet water
temperatures up to 185°F, making it ideal for sanitization, degreasing, and
applications where hot water is required for effectiveness. Built with premium seals,
corrosion-resistant components, and a robust crankcase, this pump ensures long service life even
under chemically aggressive or thermally stressful conditions.

Key Specifications

• Model: SXWA55G50NHT
• Flow Rate: 5.5 GPM (gallons per minute)
• Pressure Rating: 5,000 PSI
• Operating Speed: 1,750 RPM
• Maximum Inlet Temperature: 185°F
• Shaft Size: 24mm solid keyed shaft
• Plungers: High-strength ceramic plungers for wear resistance
• Valves: Stainless steel valves for corrosion and heat resistance
• Pump Type: Triplex plunger with oil-lubricated crankcase
• Warranty: 5-year commercial warranty with U.S.-based service

What’s Included with SXWA55G50NHT

• Pre-filled break-in oil for safe startup and reduced setup time
• Vented dipstick for proper crankcase ventilation
• Oil sight glass for simple oil monitoring and maintenance
• Owner’s manual and schematic documentation
• Factory performance testing records
• 5-year commercial warranty with dedicated U.S. support

How the SXWA55G50NHT Works

• Utilizes a triplex plunger system to deliver smooth, consistent water output with
  reduced pulsation for better cleaning performance.

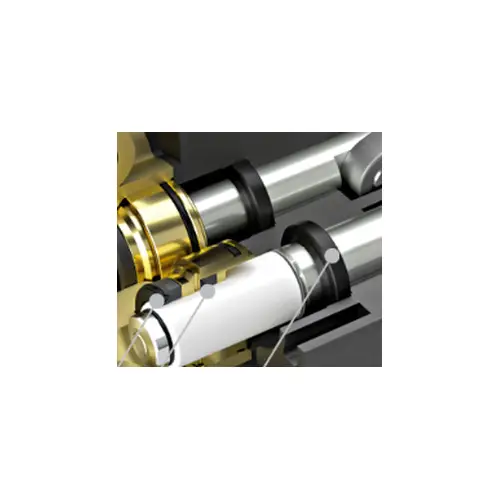

• Three ceramic plungers are driven by a precision-machined crankshaft supported by
  oversized bearings, reducing friction and vibration during operation.
• Hot-water compatibility sets this pump apart: seals and stainless-steel internals
  are engineered for continuous exposure to inlet water up to 185°F.
• Maintains consistent pressure and flow for greasy residues, sanitation tasks, and industrial
  washdowns where hot water is required.

Benefits of the SXWA55G50NHT

• Hot water ready: Handles inlet water up to 185°F for effective degreasing and sanitizing.
• Extreme power: 5.5 GPM at 5,000 PSI for professional-grade cleaning performance.
• Durable construction: Ceramic plungers and stainless valves provide long-term resilience.

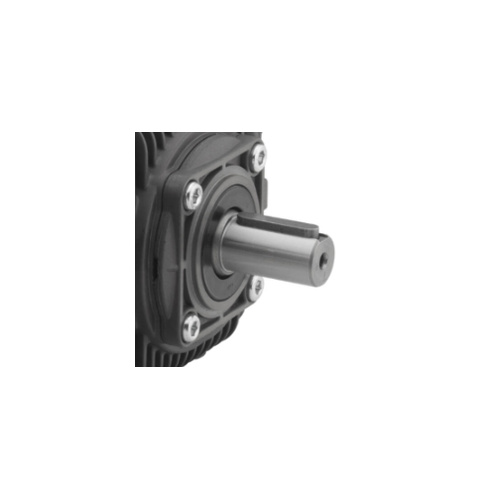

• Flexible integration: 24mm solid shaft supports belt-drive or direct-drive configurations.
• Low maintenance: Includes oil, sight glass, and dipstick for straightforward servicing.
• Peace of mind: Covered by a 5-year commercial warranty with U.S.-based support.

Typical Applications

• Municipal vehicle wash bays: Removes heavy road grime, salt, and debris.
• Tank cleaning systems: Provides thorough sanitation in industrial tanks and vessels.
• Contract cleaning rigs: Powerful choice for mobile hot-water trailer setups.
• Food processing plants: Supports hot water cleaning for USDA and sanitation standards.
• Manufacturing facilities: Degreases machinery, equipment, and production lines.
• Fleet maintenance: Ideal for trucking depots and rental fleets where hot water improves cleaning efficiency.

Why Choose the SXWA55G50NHT?

• Combines the strength of a 5,000 PSI industrial pump with specialized
  hot-water capability, making it one of the most versatile pumps in its class.
• Engineered to handle thermal stress and chemical exposure common in industrial
  sanitation and heavy degreasing applications.
• Offers long service intervals, simplified maintenance, and proven reliability under continuous duty.
• Backed by a 5-year commercial warranty, delivering long-term value and reduced
  total cost of ownership.

Summary

The Annovi Reverberi SXWA55G50NHT hot water pump delivers
5.5 GPM at 5,000 PSI and handles inlet temperatures up to
185°F, making it a top choice for industrial sanitation, degreasing, and heavy-duty
hot-water cleaning systems. With a 24mm solid keyed shaft, ceramic plungers, stainless steel valves,
and an oil-lubricated crankcase, it is engineered for continuous-duty performance in the harshest
environments. Backed by a 5-year commercial warranty and U.S.-based support, the SXWA55G50NHT offers
dependable, high-efficiency cleaning power for professional operators who demand both pressure and
heat in a single, robust pump platform.
