SXMV4G40-PKG | Triplex Pump, 4.0 GPM 4000 PSI, F24 Flange Mount

SXMV4G40-PKG by Annovi Reverberi — SXMV Series Heavy-Duty Triplex Pump Package | 4.0 GPM | 4,000 PSI | Bronze Connecting Rods | Forged Brass Manifold | Gymatic C2 Unloader | F24 SAE J609a 1″ Shaft | Direct Drive Gas Engine | 16,000 Cleaning Units

The SXMV4G40-PKG by Annovi Reverberi is a complete, installation-ready SXMV Series triplex ceramic plunger pump package engineered for direct drive gas engine-powered pressure washing systems requiring 4.0 GPM at 4,000 PSI. The SXMV Series represents Annovi Reverberi’s reinforced and strengthened evolution of the XMV platform — built to handle the higher pressure demands and continuous-duty cycles of serious contractor, industrial, and OEM applications. Rated at 4.0 GPM and 4,000 PSI, the SXMV4G40-PKG delivers 16,000 cleaning units — the output of a professional commercial cleaning platform built for contractor rigs, fleet wash bays, agricultural operations, industrial facilities, and OEM skid systems — through bronze connecting rods, solid ceramic plungers, a forged brass manifold, stainless steel valves, dual redundant packing, and an F24 SAE J609a direct-drive flange with 1″ shaft. Every fitting, every bolt, the unloader, and the manual ship in one organized box. Mount it. Connect it. Wash. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the SXMV4G40-PKG is the complete high-pressure answer for operators who need 4,000 PSI without the sourcing headache.

The SXMV4G40-PKG is a factory-engineered, factory-assembled, factory-tested complete system — designed by Annovi Reverberi in Modena, Italy and distributed across North America by AR North America. Whether you are replacing a worn pump on a contractor trailer, building a new skid for a fleet wash bay, specifying a pump for an OEM installation, or outfitting a Predator-powered flatbed for multi-unit mobile wash operations — the SXMV4G40-PKG eliminates every compatibility question before the box is opened. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this is a decade-of-service investment.

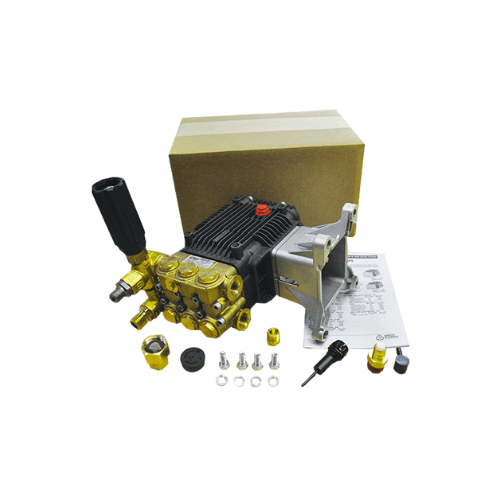

Everything in One Box — The SXMV4G40-PKG Complete Package Contents

No Return Trips. No Guesswork. No Compatibility Risk. Same-Day Install.

Open the SXMV4G40-PKG box and find everything required for a complete engine-to-pump installation:

• SXMV4G40 triplex ceramic plunger pump — factory-tested and pre-lubricated with break-in oil. Bronze connecting rods, solid ceramic plungers, forged brass manifold, stainless steel valves, dual redundant packing, oversized crankshaft bearings — factory-installed and factory-verified. Ready to mount.
• Gymatic C2 adjustable unloader with banjo bolts and sealing O-rings — factory-matched and factory-installed for the 4.0 GPM / 4,000 PSI duty point. Smooth pressure regulation and safe bypass from first startup. The right unloader for this pump. Already on it.
• Fittings and mounting hardware — every fitting and fastener required for integration onto contractor skids, fleet wash frames, flatbed rigs, and OEM installations. Organized in the box. Nothing to source separately.
• Chemical injector and suction hose — not included — the SXMV4G40-PKG delivers straight 4,000 PSI high-pressure water output. When detergent capability is required, a downstream chemical injector and suction assembly are sourced separately and connected to the system outlet. This lets operators choose the injector draw rate and connection style that matches their specific cleaning program.
• Factory break-in oil — crankcase pre-filled. First-startup protection already handled.
• Oil sight glass and vented dipstick — at-a-glance oil monitoring from day one.
• Installation and service manual with illustrated parts breakdown — complete setup, operating, service, and rebuild procedures with Annovi Reverberi part numbers for every component. AR North America parts availability confirmed across North America.

Decoding the SXMV4G40-PKG

What This Annovi Reverberi Pump Package Designation Tells You

• SXMV — Pump series: SXMV Series — Annovi Reverberi’s reinforced and strengthened evolution of the XMV platform, engineered for higher pressure ratings and more demanding continuous-duty performance requirements
• 4G — Pump series identifier for this SXMV configuration
• 40 — Maximum pressure: 4,000 PSI — 4.0 × 4,000 = 16,000 cleaning units
• PKG — Complete package: pump, Gymatic C2 unloader with banjo bolts, fittings, mounting hardware, manual, and factory break-in oil — everything required for a complete engine-to-pump installation in one organized box

The SXMV Series — Reinforced for Higher Pressure Demands

XMV Platform. Strengthened Construction. Built for 4,000 PSI Continuous Duty.

• Reinforced XMV platform — the SXMV Series is Annovi Reverberi’s strengthened evolution of the XMV pump family, purpose-engineered to handle the higher structural and thermal demands of 4,000 PSI continuous-duty operation that standard XMV configurations approach at their upper limits
• Built for demanding professional applications — the SXMV4G40-PKG targets the contractor, fleet operator, industrial facility manager, and OEM builder who needs 4,000 PSI output with the confidence that the pump platform was designed — not simply rated — for that pressure range
• Forged brass manifold for high-pressure thermal cycling — the SXMV4G40-PKG’s forged brass construction withstands the repeated thermal cycling, vibration, and sustained pressure loads common in contractor and industrial environments, maintaining structural integrity across seasons and high-utilization duty cycles
• Bronze connecting rods at 4,000 PSI — above the 3,600 PSI threshold where bronze connecting rods are the required specification, the SXMV4G40-PKG’s bronze rods deliver the strength, wear resistance, and heat tolerance needed for sustained high-pressure commercial operation

Key Specifications

SXMV4G40-PKG Technical Details at a Glance

• Flow Rate: 4.0 GPM (gallons per minute)
• Maximum Pressure: 4,000 PSI
• Cleaning Units: 16,000 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Pump Type: SXMV Series triplex ceramic plunger pump — reinforced XMV platform for higher pressure duty
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, direct drive gas and diesel engine compatible (Annovi Reverberi part AR41866)
• Connecting Rods: Bronze — required specification for sustained 4,000 PSI continuous-duty operation
• Manifold: Forged brass — corrosion and fatigue resistance under sustained high-pressure operation
• Plungers: Solid ceramic — abrasion, heat, and chemical exposure resistance
• Valves: Stainless steel inlet and discharge — reliable sealing under repeated high-pressure cycles
• Packing: Dual redundant — extended seal longevity and improved uptime in continuous-duty environments
• Volumetric Efficiency: Approximately 93% — optimal power transfer and reduced operating heat
• Bearings: Oversized crankshaft — drivetrain stability and reduced wear at operating speed
• Lubrication: Vented oil-bath crankcase — continuous lubrication and thermal control
• Thermal Relief: Included — protects pump head from overheating during extended bypass periods
• Unloader: Gymatic C2 — factory-matched, factory-installed, banjo bolts and O-rings included
• Chemical Injector: Not included — straight 4,000 PSI water output; downstream injector sourced separately
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the SXMV4G40-PKG

F24 SAE J609a. 1″ Hollow Keyway Shaft. Predator-Compatible. Broad Engine Range.

The SXMV4G40-PKG‘s F24 SAE J609a direct-drive flange accepts a 1″ hollow keyway shaft. At 4,000 PSI and 4.0 GPM, engine horsepower is critical — the right pairing protects both engine and pump at continuous operating pressure. Confirmed compatible platforms include:

• Harbor Freight Predator 420cc / 13 HP — widely used in contractor builds and micro-OEM pressure wash systems. Direct value-priced replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the SXMV4G40-PKG F24 1″ keyway shaft — confirm engine HP is appropriate for your intended duty cycle at 4,000 PSI before building.
• Harbor Freight Predator 459cc / 15.8 HP Max Performance — up to 10% more torque than the standard 420cc. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the SXMV4G40-PKG F24 1″ keyway shaft — the preferred single-cylinder Predator pairing for sustained high-pressure continuous-duty operation.
• Harbor Freight Predator 670cc / 22 HP V-Twin — the preferred Predator pairing for sustained 4,000 PSI continuous-duty operation on contractor flatbed rigs and fleet wash installations. Replaces Honda GX630/660/690 and Briggs & Stratton Vanguard at substantial cost savings. The Predator 670cc delivers the overhead needed to keep the SXMV4G40-PKG running at rated pressure across full-day commercial cleaning programs.
• Honda GX390 — 389cc, 1″ SAE J609a keyway shaft. Direct-mount compatible with the SXMV4G40-PKG F24 flange.
• Briggs & Stratton XR2100 / Vanguard series — 420cc and above, 1″ SAE keyway. Direct-mount compatible.
• Kohler CH440 / Command series — 429cc, 1″ SAE keyway. Direct-mount compatible.
• Compatible diesel engines — any gas or diesel engine with a 1″ SAE J609a horizontal keyway shaft at 3,400 RPM and sufficient horsepower for 4,000 PSI operation is compatible with the SXMV4G40-PKG F24 direct-drive flange.

Built for the Predator-Powered Contractor Rig

Flatbed Build. Multi-Unit. Maximum Output Per Dollar Invested.

• Build your own system — own the savings and the quality — a Predator 670cc paired with the SXMV4G40-PKG delivers 16,000 cleaning units of sustained commercial output at a fraction of the cost of a comparable OEM-assembled pressure washer. The contractor who builds their own system specifies the components, controls the quality, and keeps the margin.
• Standardize your flatbed for maximum uptime — contractors running multiple identical Predator/SXMV4G40-PKG stations on a flatbed pickup or trailer gain standardized parts, standardized procedures, and standardized performance across every unit. One rebuild kit serves every pump on the rig.
• AR North America national parts network — every wear component in the SXMV4G40-PKG is stocked through AR North America’s domestic distribution. Rebuild kits, packing kits, valve assemblies, C2 unloader service parts — available nationally. The rig keeps running.
• SXMV reinforced platform for high-demand rigs — contractors who push their equipment hardest benefit from the SXMV Series’ strengthened construction. At 4,000 PSI across multiple daily cleaning programs, the reinforced XMV platform delivers the durability margin that keeps production schedules intact.

93% Volumetric Efficiency and Dual Redundant Packing — Why This Pump Runs Longer

More Output Per HP. Less Heat Under Load. Extended Service Intervals.

• 93% volumetric efficiency at 4,000 PSI — the SXMV4G40-PKG’s precision internal hydraulic design transfers approximately 93% of engine input energy into usable water flow at the outlet. At 4,000 PSI, efficiency directly impacts operating temperature — a more efficient pump runs cooler, extending ceramic plunger life, packing life, and valve seat life across high-demand commercial duty cycles.
• Dual redundant packing system — two independent sealing stages on each plunger deliver twice the sealing protection of single-stage designs. Extended service intervals and reduced leakage risk across the stop-start cycles of contractor and fleet cleaning operations at 4,000 PSI.
• Thermal relief protection — built-in thermal relief safeguards protect the SXMV4G40-PKG pump head from overheating during extended bypass periods, increasing seal life and preventing heat damage during idle intervals common in mobile wash operations.
• Oversized crankshaft bearings — stabilize the drivetrain at 3,400 RPM, reducing wear and vibration across long daily duty cycles on contractor rigs and fleet wash systems. Accessible valve caps allow rapid servicing and on-site rebuilds without removing the pump from the frame.

Typical Applications

Where the SXMV4G40-PKG Delivers Best Results

• Contractor rigs — concrete cleaning, restoration, and high-pressure surface preparation — the SXMV4G40-PKG’s 4,000 PSI SXMV reinforced platform and complete factory package give contractors a drop-in-ready high-pressure solution for concrete, brick, graffiti removal, and surface prep work
• Fleet and transportation washing — trucks, buses, trailers, and heavy equipment where 4.0 GPM output and 4,000 PSI cleaning force handle fleet vehicle contamination at professional duty cycles on gas engine-powered systems
• Agricultural washdown — tractors, implements, and livestock facilities where the SXMV4G40-PKG’s high-output complete package and reinforced construction support demanding agricultural cleaning programs
• Industrial wash stations — machinery, conveyors, and processing equipment where 16,000 cleaning unit output and sustained 4,000 PSI performance meet the demands of continuous industrial washdown programs
• Food and beverage sanitation systems — when used with approved cleaning agents and appropriate sanitation procedures, the SXMV4G40-PKG supports USDA-compliant wash station builds
• Municipal service operations — garage cleaning, public works maintenance, and city fleet washing where standardized, rebuildable pump packages with national parts availability support scheduled municipal cleaning programs

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

Built in Italy. Distributed Across North America. Reinforced Platform. Backed for Five Years.

The SXMV4G40-PKG is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — ceramic plungers, bronze connecting rods, forged brass manifold seals and o-rings, stainless valve seats, Gymatic C2 unloader service parts, dual redundant packing kits, and oversized crankcase bearings — is stocked nationally through authorized AR North America distribution channels. Contractors, fleet operators, agricultural operations, industrial facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the SXMV4G40-PKG and the complete WSHPWR pump package lineup. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

16,000 Cleaning Units. 4,000 PSI. 4.0 GPM. SXMV Reinforced. F24 SAE J609a. Gymatic C2. Bronze Rods. Everything in One Box.

Italian Engineering. Reinforced XMV Platform. Predator-Compatible. Complete Factory Package. 5-Year US Warranty.

Stop sourcing components one at a time. Stop guessing at unloader compatibility. The SXMV4G40-PKG is the complete Annovi Reverberi reinforced-platform pump package for contractors, fleet operators, agricultural teams, industrial facilities, OEM builders, and Predator-powered rig operators who need 4.0 GPM at 4,000 PSI with zero installation surprises. Reinforced SXMV Series platform. Bronze connecting rods. Forged brass manifold. Dual redundant packing. 93% volumetric efficiency. Gymatic C2 unloader. Every fitting and every bolt. Factory-tested. Pre-lubricated. Thermal relief included. Five-year US warranty. One box. Same-day install.

Volume buyers and contractors building multi-unit systems can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
